Tension spring similar to spiral balances, no markings

Quick Learner from Georgia

Jun 10, 2020 5:32 pm

Spring that seems to function similar to spiral balances but I cannot loosen or tighten the tension. It has a green tip and even when fully engaged with the sash, it doesnt hold the window up.

3 user uploaded images

10 Replies

Tom from SWISCO

Jun 15, 2020 1:23 pm

Thanks for reaching out to us. This looks like one of our Hybrid balances, but you mentioned that there are no markings. Can you confirm? These usually always have a stamp as a rule, due to their special make. Can you also confirm the length and diameter of the outer tube?

Quick Learner from Georgia

Jul 15, 2020 1:09 pm

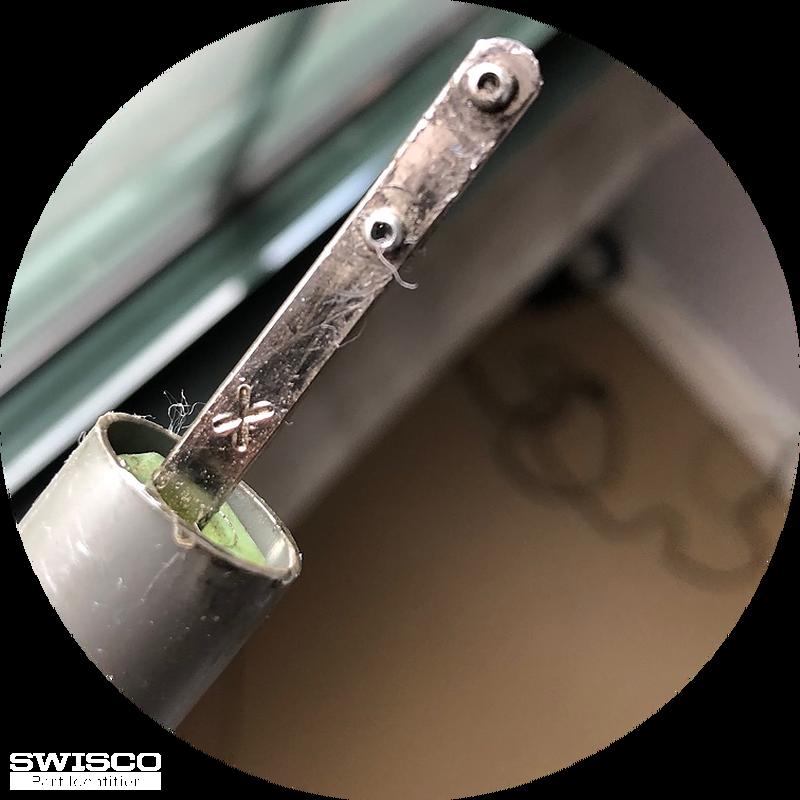

I tried to email response but apparently it didn't go through. Ive attached the only marking I can find. See this small "X" on the tip.

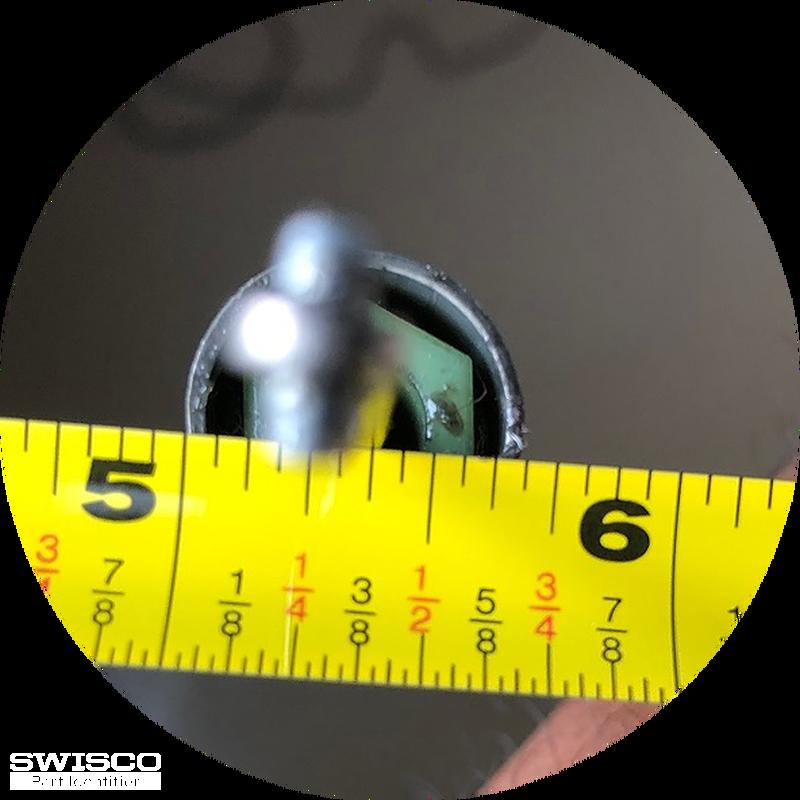

Maybe 5/8" outer diameter.

2 user uploaded images

Tom from SWISCO

Jul 15, 2020 2:23 pm

Thank you. Unfortunately, that X doesn't help. Since there's no stamp on the tube, we need you to get the exact weight, down to the ounce. I still also need the length of the tube.

Please respond directly to this thread, not to the email that you received. That's just an automatic notification.

Quick Learner from Georgia

Jul 16, 2020 8:55 am

The length of the tube is 48 3/8 inches.
I will have to come back with the weight of the sash

Tom from SWISCO

Jul 16, 2020 9:40 am

Thanks, I'll be here!

Quick Learner from Georgia

Jul 19, 2020 5:09 pm

The weight of the sash comes to 33.6lbs

Tom from SWISCO

Jul 21, 2020 10:53 am

Thank you! that should be everything we need. I will email you an order link and price quote right now for two of these balances, which is our minimum. If you needed more, just let me know here and I'd be happy to adjust that for you.

One other thing to note is that these balances come pre-tensioned for a very specific sash weight, which is why I needed that so much. The good news is that also means these don't need to be wound up in any way.

Quick Learner from Georgia

Jul 22, 2020 6:31 pm

Thank you. Since the item you sent is non-refundable, can I see a picture of the tip to ensure it has the connections I expect?

Tom from SWISCO

Jul 23, 2020 11:32 am

Sure, you can see a picture of our hybrid balances on this page. This should give you an idea of what you'll be receiving.
