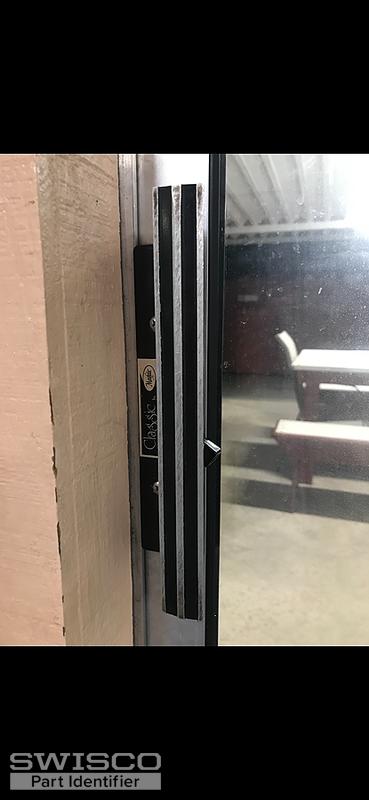

The handle lock on sliding glass door ( classic by Mayfair)

Home Owner from Houma La
This door lock keeps on falling in lock position on its own. Would lick to replace with same if possible

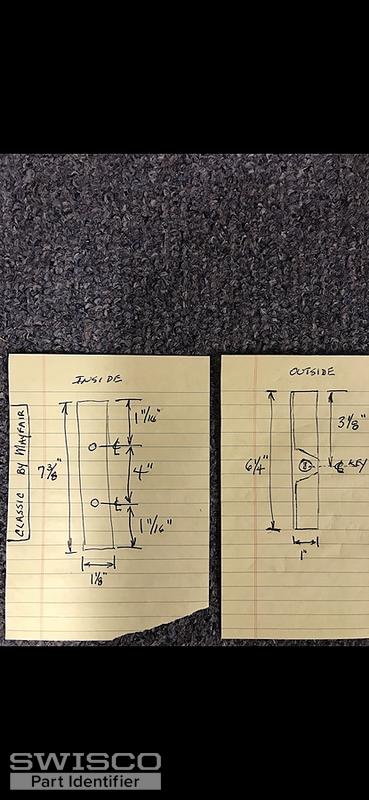

5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello! Your exact handle set is no longer made, but we have a few that could be used as substitutes. Look at our 82-033 to start out, which is probably the closest to your old design. This doesn't come with a key lock, so you'll also need an 82-310.

Finally, based on the problem you described, you'll definitely need a new mortise lock. It would be either our 82-211 or 82-214, depending on size. Honestly, reading your post more carefully, there's a very good chance that your mortise lock is the only thing that has to be replaced. You could get away with keeping the same handle set. It's worth experimenting with; a good way to confirm is to remove the mortise and try to throw it manually. If you run into the same problem with the falling hook, then the mortise is the culprit.

Either way, look these parts over and let me know what you think.

Quick Learner from Cut Off, LA
I have the same handle set as the original post, but the screws holding the inside pull to the outside handle won't stop turning. It seems the female threads on the outside handle may be stripped. Could I replace the outside handle with the 82-306?
Tom
Tom from SWISCO
SWISCO
Expert

Yes, that should be totally fine. The 82-306 outside handle is fully compatible with the inside handle that comes with the  82-033 set.
