The window crank and the unit i sits in

Home Owner from Canada
Please help me find a the hand crank and the unit it sits in.

Thank you
1 user uploaded image
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like you have Truth hardware, which would generally use a handle like the 39-114L or folding 39-205 that attaches to an 11/32" diameter spline. If you need the entire operator assembly, we should be able to supply a replacement but we would need you to open the window and show us the arms that move the sash to compare to our inventory. Thank you!

Home Owner from Canada
Could you please let me know the operator system on my windows?

Thank you, I appreciate the help

Alison

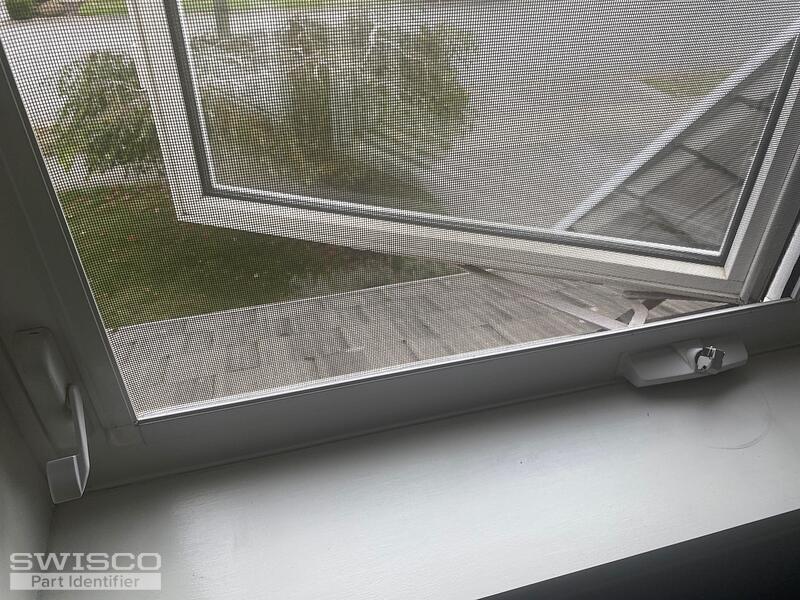

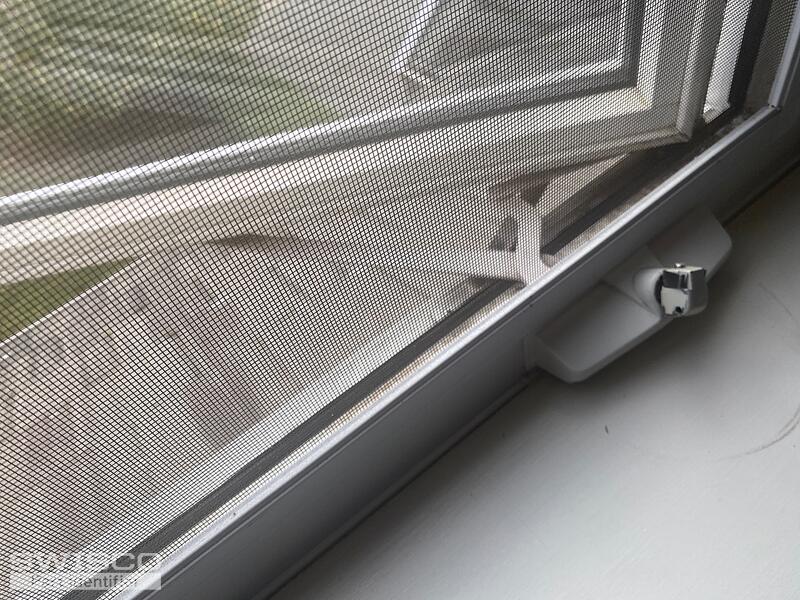

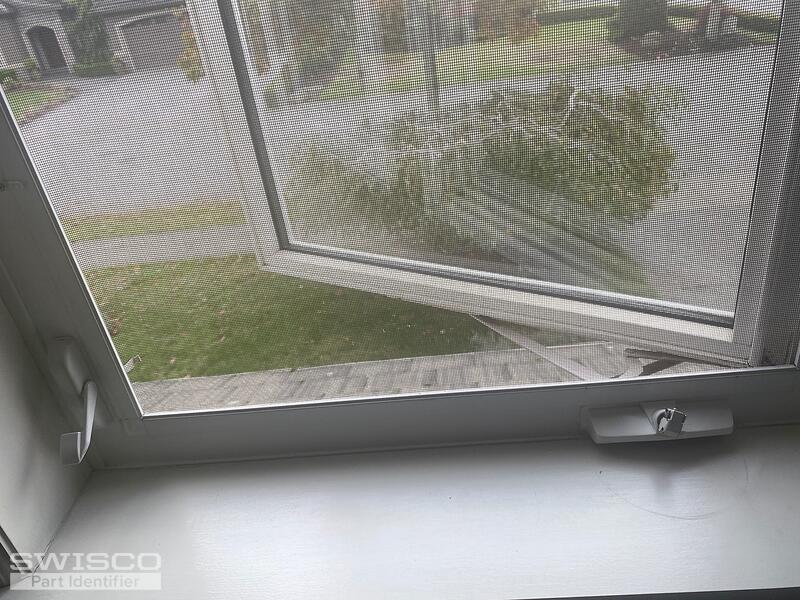

5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

The operator shown in your photos resembles the Entrygard 39-031 at first glance. We also offer the 39-032 opposite-handed version. The determining factor would be how the length of the shorter link arm compares to yours. Review the diagram below to confirm it's a match

Dimensions for 39-031
Dimensions for 39-031

If you need the sash locks as well, we'd need to see the lock fully removed from the window to narrow down your options.
