The window pivot shoe broke

Home Owner from Lansdale

Jun 30, 2024 12:50 pm

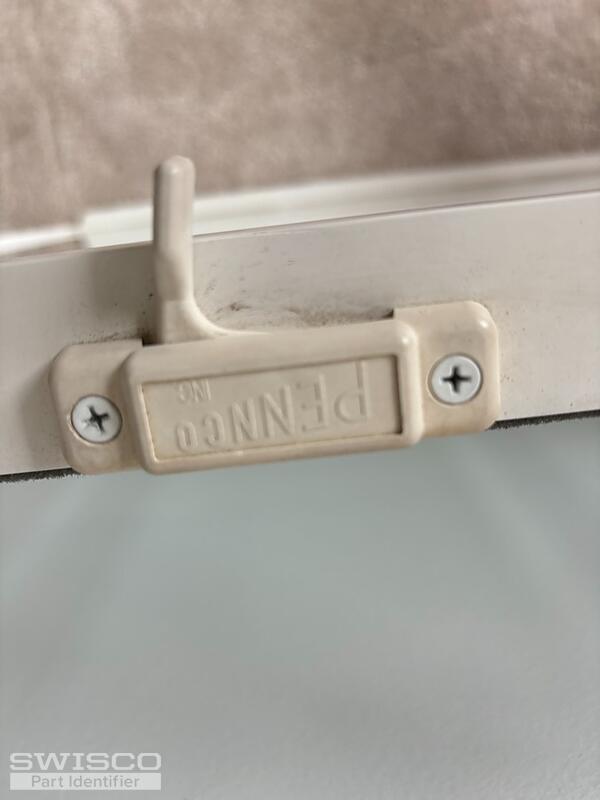

The spring metal has the marking 27HD BSI tf (I am sure about the Tf). I couldn't find a replacement pivot shoe. I may need 8 of these. The spring system in intact.

4 user uploaded images

5 Replies

Home Owner from Lansdale

Jun 30, 2024 1:00 pm

I am NOT sure about the tf markings.

Tom from SWISCO

Jul 2, 2024 12:17 pm

Thanks for these photos, these are a huge help. Does your balance have a simple hook at the end of the cord, that then connects to the shoe? If so, my recommendation to replace that shoe is our 15-208. Look this over and see what you think, or let me know if you had any questions!

Alternate image for 15-208

Home Owner from Lansdale

Jul 6, 2024 2:07 pm

This 15-208 is 1.25" in length, but our existing one is 1.5" thick. Is that going to matter?

Tom from SWISCO

Jul 8, 2024 10:23 am

Are you referring to the height or the width? Height isn't a big deal, but width is pretty important.

I would make sure to remove yours from the window before you measure just to be 100% sure as to its size. 1-1/2" for width is very odd. 1-1/4" is pretty much the widest you can expect to see of pivot shoes except in the most unique of cases, and I don't think you have one of those cases.
