Themo Twin Sliding Glass Door

A contractor from Ambridge, PA says:
April 12, 2022

I have a 2013 Thermotwin Glass Sliding door and the handle has broken as shown in the following pictures. Do you have a replacement handle or something that would take its place?

Thank You,

David

Thumbnail of the uploaded file named Door 1.jpg
Thumbnail of the uploaded file named Door 2.jpg
Thumbnail of the uploaded file named Door 3.jpg

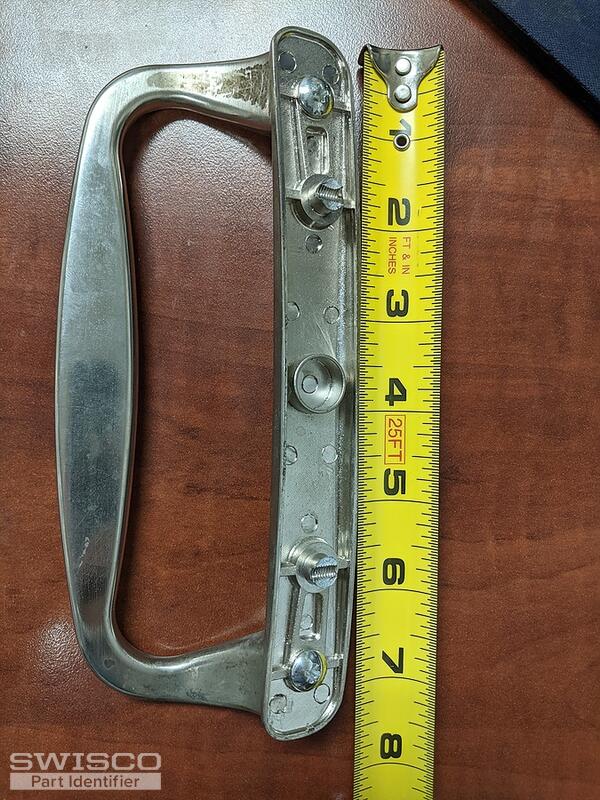

Thumbnail of the uploaded file named Door 4.jpg

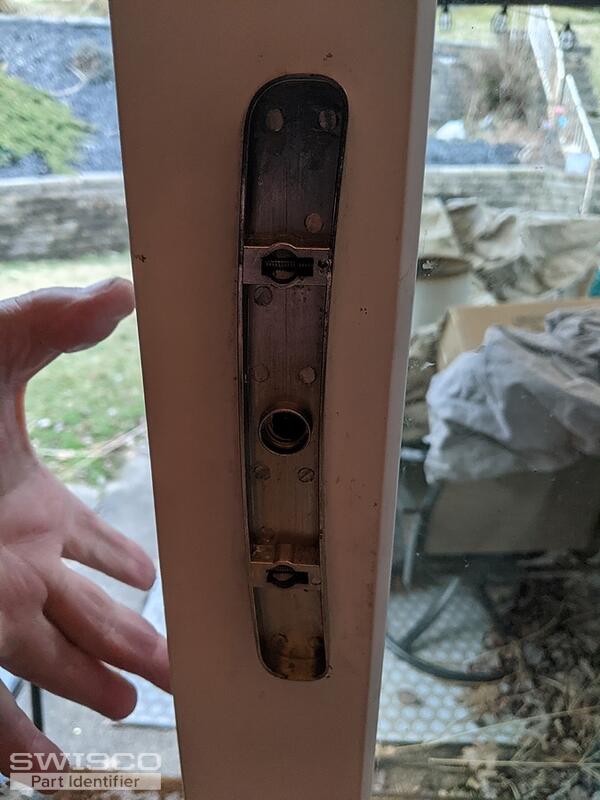

Thumbnail of the uploaded file named Door 5.jpg
Profile picture of Emily
Emily from SWISCO responded:
April 13, 2022

Hi, David.

I don't recognize your hardware at first glance. Would it be possible to see your mortise removed from the door with its hooks extended? I just want to see its full shape to determine if we have a handle set that would be compatible with your existing mortise.

Thank you!
A contractor from Ambridge, PA says:
April 25, 2022

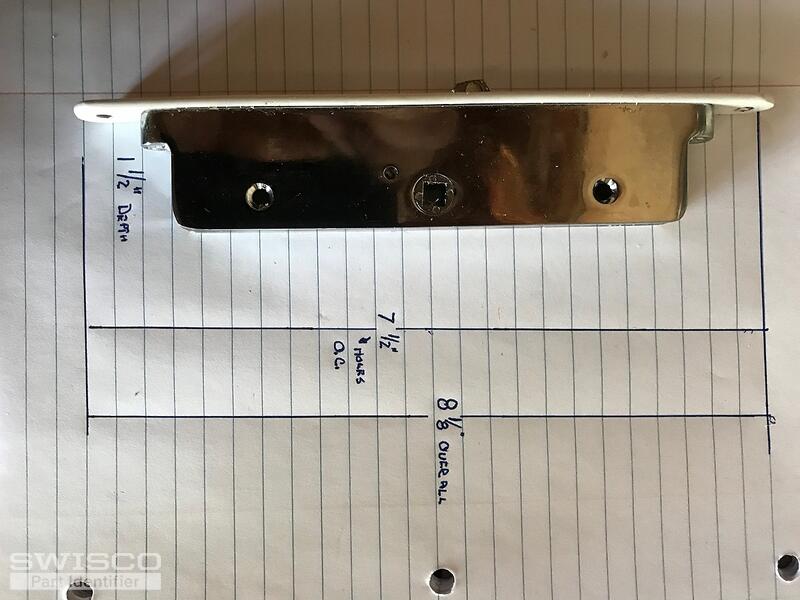

Thumbnail of the uploaded file named Sliding Door 1.jpg

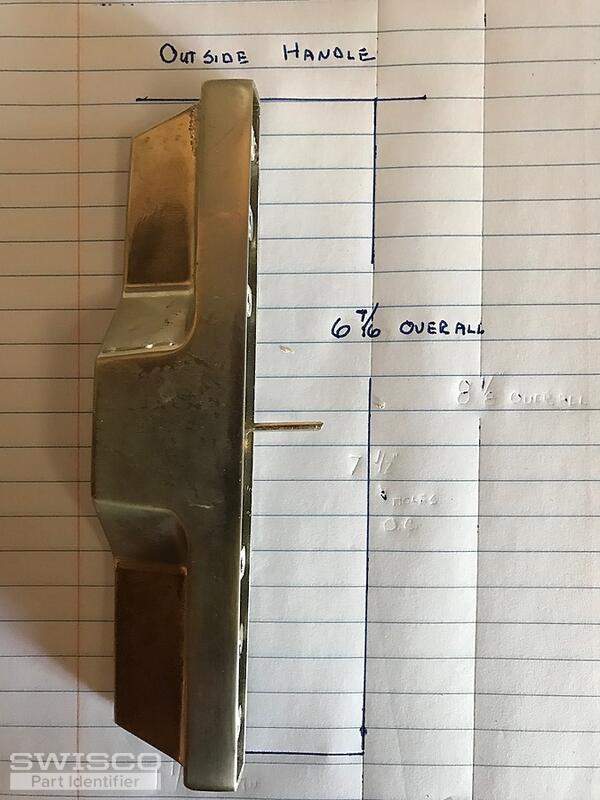

Thumbnail of the uploaded file named Sliding Door 2.jpg

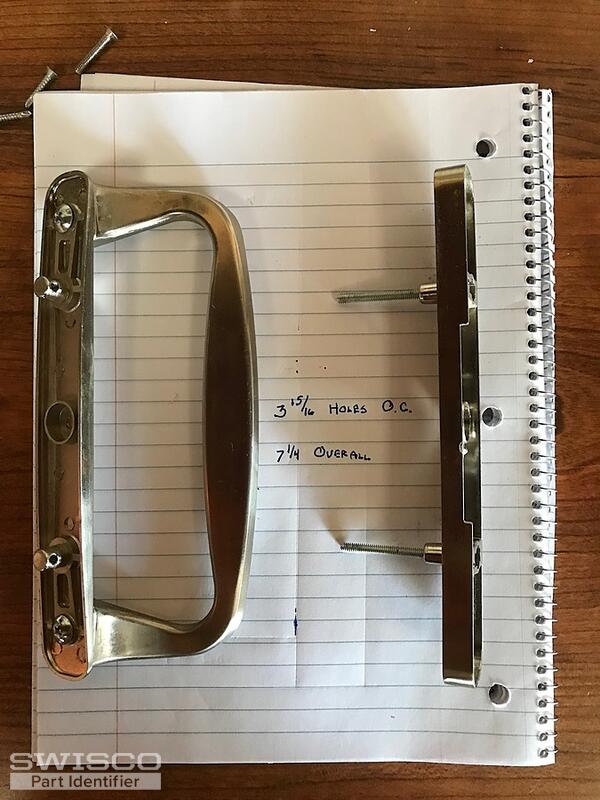

Thumbnail of the uploaded file named Sliding Door 3.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
April 26, 2022

Take a look at the 82-238 mortise lock along with the 82-081 handle set. I do believe this is the type of hardware you need. My only concern is that your mounting hole centers are at 3-15/16" where as the 82-081 has 4-15/16" hole center spacing. These seem to match up to your hardware except for the mounting holes so you will need to re-drill new mounting holes. Review the specifications to see what you think.
A contractor from Ambridge, PA says:
April 26, 2022

Dave,

I would like to go ahead and order the 82-238, 82-081, 89-030. How do I go about paying and moving this process ahead?

David

Ambridge Do It Best Home Center

Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
April 27, 2022

You can place an order for these items directly on our website at your convenience or by phone to our customer service department at (888) 991-1929.
