There are no markings or numbers

Quick Learner from Arizona

Mar 23, 2025 7:58 pm

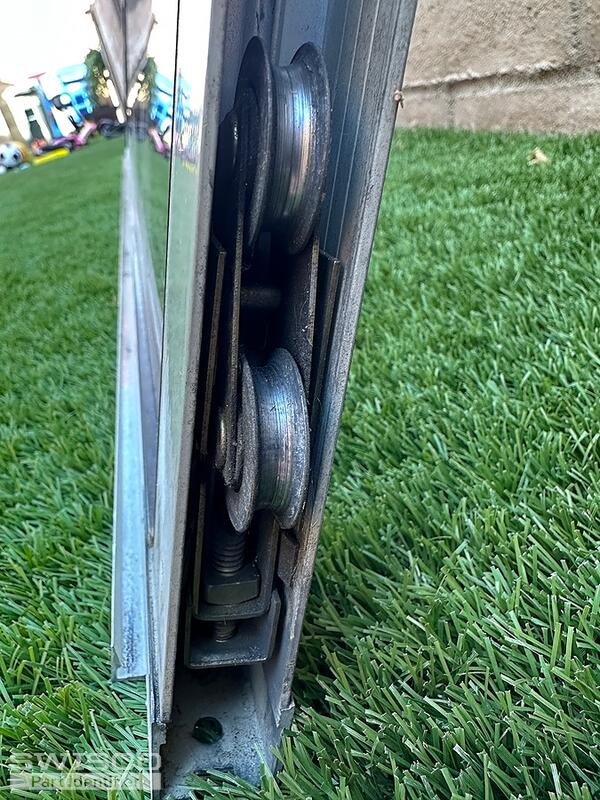

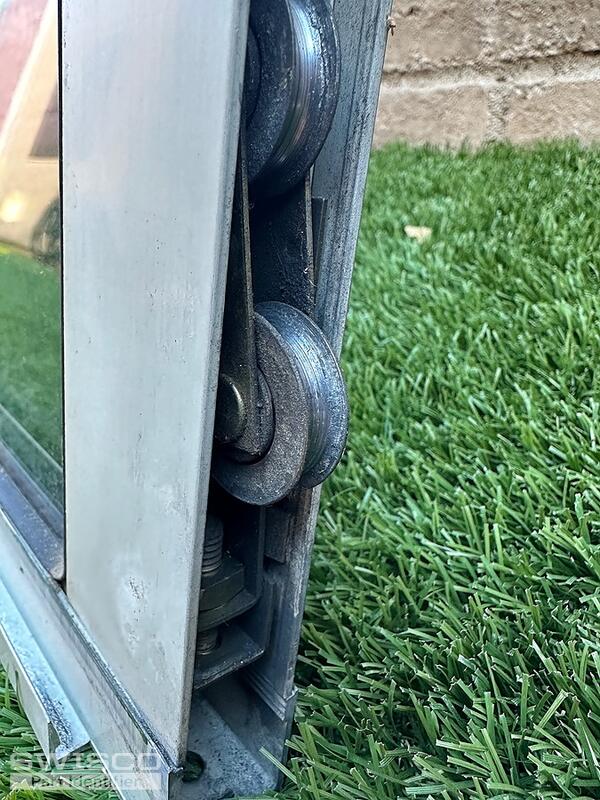

Wheels are 1.125" diameter. Frame is about 11/16" thick. It's about 7/8" thick at the flared section. Overall length from mount hole to end of wheel is about 4.5"

5 user uploaded images

6 Replies

Jasmine from SWISCO

Mar 24, 2025 2:04 pm

Thanks for your post! Our 81-056 Patio Sliding Glass Door Roller comes to mind for a replacement match. Take a look at the diagram below. Double check the dimensions to determine if this is the right fit for your repairs.

Alternate image for 81-056

Quick Learner from Arizona

Mar 28, 2025 11:01 pm

Hi Jasmine. Thanks for the quick reply! That roller does look very similar, thanks for your help on that! One question: I measured the wheels at 1-1/8. Is the slightly larger 1-1/4 wheel going to be a problem?
Thanks!

Jasmine from SWISCO

Mar 31, 2025 9:07 am

Hello,

The 81-056 housing is available with the 1-1/4" or 1" wheel. We do not have an option with a 1-1/8" wheel, but the housing is adjustable so you should be able to make up the difference if using the 1" option.

If there is an issue, we also carry the 81-223 1-1/8" separately that can be switched out with the 81-310 axle repair kit. You could also consider this route if your original housing is still in good shape.

Let me know if you have any additional questions!

Quick Learner from Arizona

Mar 31, 2025 4:36 pm

Hi Jasmine. Okay, I'll give that some thought. Thanks for the information, you've been very helpful!!

Jasmine from SWISCO

Apr 1, 2025 7:58 am

No problem! Please let us know if you have any future hardware questions.
