Thermal Gard by All Season windows

A quick learner from Dayton Ohio says:
June 12, 2022
Hi, I have thermal gard windows, they aren't staying up. I found that few pivot shoe are broken. I'm thinking to replace the whole hardware to make it right at once.

I'm not sure what parts do i need so I'm attaching pictures for your expert opinion. Also the measurement for spiral balance is 22 inches please see it in the photo.

Let me know if you need more information to find the right part.

Thanks,

Kamran
Thumbnail of the uploaded file named CC8741C1-A7BC-4B7E-85B4-33DCFD9C34BC.jpeg
Thumbnail of the uploaded file named 26642AC9-25EC-419A-8514-88E99FFE2D28.jpeg
Thumbnail of the uploaded file named A6A24B43-7303-4285-85CE-D0ED9FEB169A.jpeg
Thumbnail of the uploaded file named C90DBCC7-F006-4F3A-87E2-5525683B1E44.jpeg

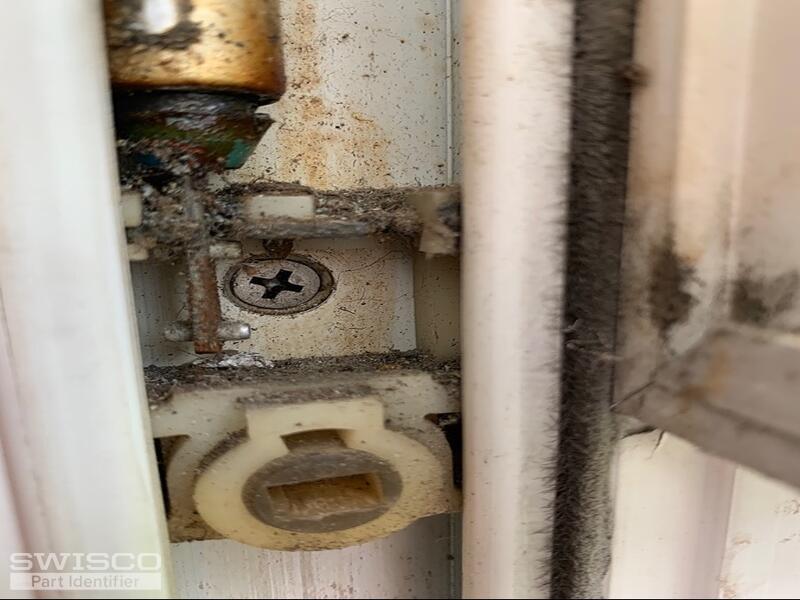

Thumbnail of the uploaded file named 718661FD-6172-43EB-B231-FA0C75E32764.jpeg
Profile picture of Paul
Paul from SWISCO responded:
June 16, 2022

Hello, Kamran. It sounds like you're looking for an all new balance system. Fortunately, we still carry some of the older Thermal Gard window parts.

Start by looking at our 15-070 pivot shoe and the 9/16" diameter S600-22 spiral balance. These look like they'll work for your original hardware but look them over and please let us know if you had any questions or concerns.
22" Series 600 Spiral Tilt Window Balance
22" Series 600 Spiral Tilt Window Balance
S600-22
$8.72
Thermal Gard Pivot Shoe
Thermal Gard Pivot Shoe
15-070
$4.72
Pivot Bar Set, Thermal Gard
Pivot Bar Set, Thermal Gard
26-356
$12.83
Thermal Gard Lock, RH
Thermal Gard Lock, RH
90-133R
$10.28
Thermal Gard Lock, LH
Thermal Gard Lock, LH
90-133L
$10.28
Thermal Gard Sash Lift
Thermal Gard Sash Lift
26-147
$8.95
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
