Thermal Gard Pivot Shoe

Contractor from Milwaukee, Wisconsin

Aug 26, 2020 10:44 am

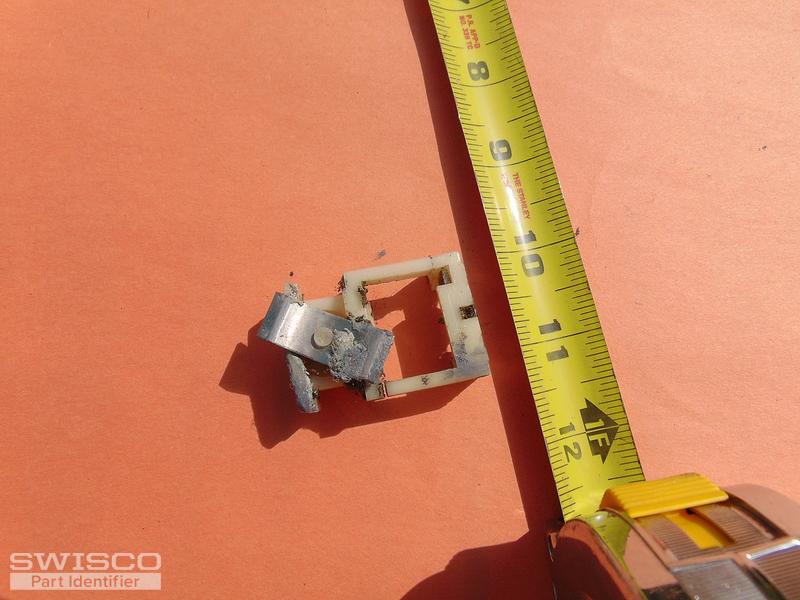

Greetings, Seeking 6 or 8 of this part from 1980's (?) Thermal Gard vinyl windows. Please advise a.s.a.p. Regards, Ron
www.twohandsrestoration.com

I work on architecture from the 1830's to 1930's so vinyl double hungs are not at all my main game.

4 user uploaded images

4 Replies

Bob from SWISCO

Aug 28, 2020 2:46 pm

See our 15-070, 15-048, or 15-202. Compare their dimensions with an undamaged version of your pivot shoe and see if one of these match up.

Contractor from WI

Aug 31, 2020 10:38 am

Looks like a match to 15-070 My questions are,
If my pivot shoe is 1 3/4" yours should work at 2" tall ?
My pivot shoe is 5/8" deep & 3/4" deep swivel/barrel front to back
Of-course the swivel shoe is 1 1/4" wide as is 15-070

Bob from SWISCO

Aug 31, 2020 3:51 pm

Height honestly isn't all that important when it comes to ID'ing pivot shoes, since there is, after all, plenty of room in the window jamb. Its those thickness and width dimensions that matter most. If everything you list matches the 15-070, then I agree this seems like what you need.
