Need window parts identified

A quick learner from Florida says:
December 12, 2017
Hello, I think these windows need a top holder. There are 2 windows which have a lot of side to side movement. Channels will fall out, wither staying at bottom (fixed when I reconnected the pulley) or stay at top of frame when sash is pulled back down. Top of channel, you can still see the plastic part stick up about 3/8

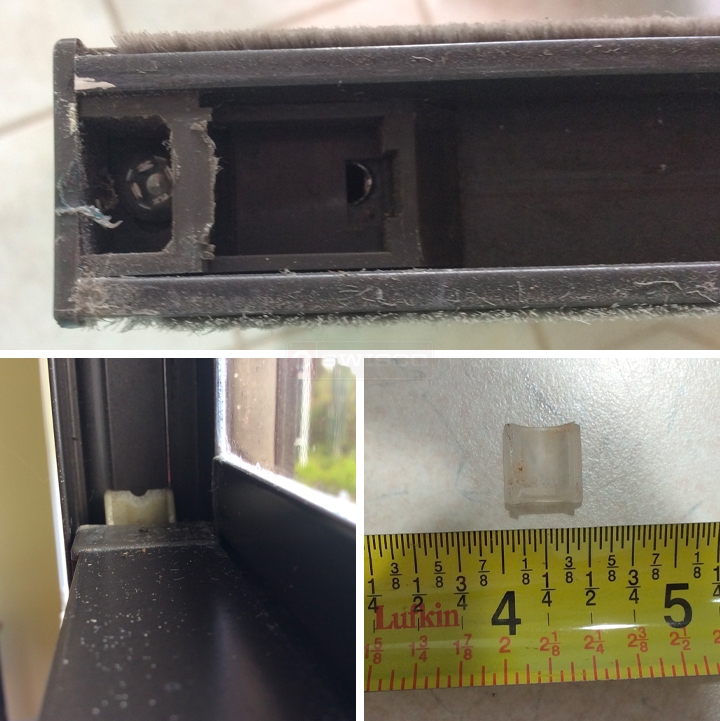

User submitted photos of window hardware.

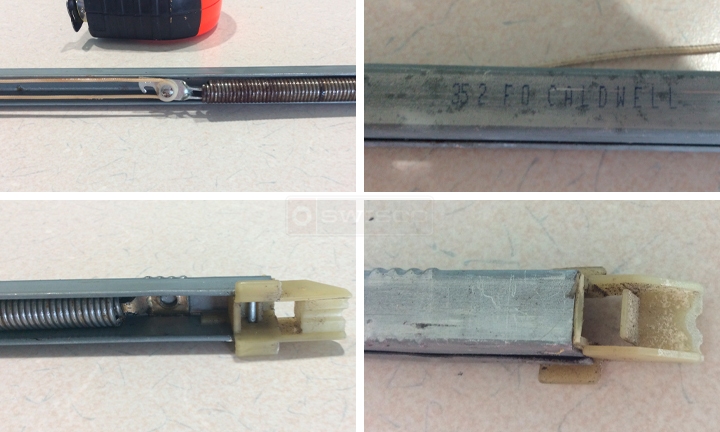

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
December 18, 2017
Thank you for your patience. It look like you will need to remove your top sash guide and compare it to our 18-009 black top sash guide. Depending on your balance shoe depth, you either would go with our S380-36 or S385-36 channel balance with a 3520 option. Get back to us and let us know how you made out.
A quick learner from Florida says:
December 18, 2017

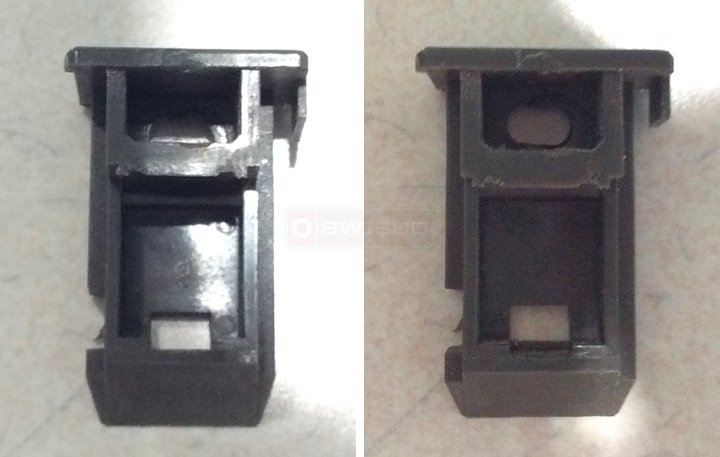

Hello, how do I know which channel balance I need? They are the same width correct. I have attached a photo of the top sash guide out of the frame. It measures approx. 3/4
User submitted photos of a top sash guide.
Profile picture of Paul
Paul from SWISCO responded:
December 27, 2017
Thanks! See our 18-015, this looks like it could possibly work.
5/8" Top Sash Guide
5/8" Top Sash Guide
18-009
$0.99
36" Series 380 Channel Balance
36" Series 380 Channel Balance
S380-36
$12.27
36" Series 385 Channel Balance
36" Series 385 Channel Balance
S385-36
$12.27
