This is an Anderson window hinge

Question

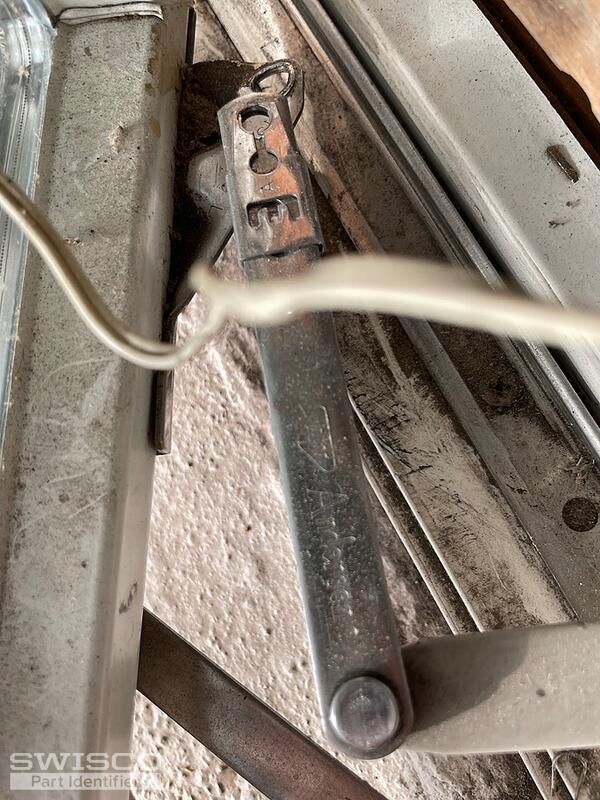

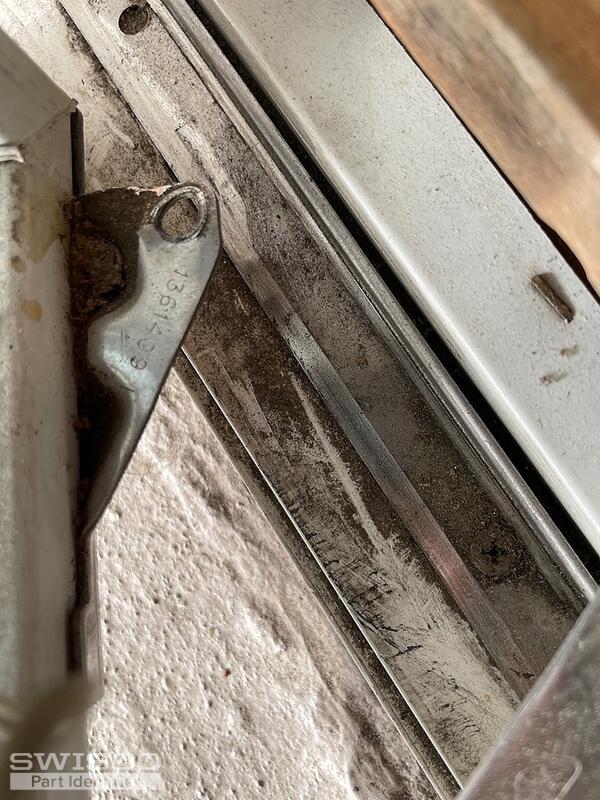

This is an Anderson window hinge that is missing a screw at the end. Once I wind the window open, I am not able to close it again because the screw is not there to hold the hinge and pull I back in

Casey · Accepted Answer

Hello,

It sounds like you may be referring to the mounting bracket that the operator link arm connects to, which appears to be missing the connecting stud. If so, see the 39-530, as well as the 39-531 opposite-handed version. These brackets are used with the 39-254 Andersen operator. Thanks for posting!

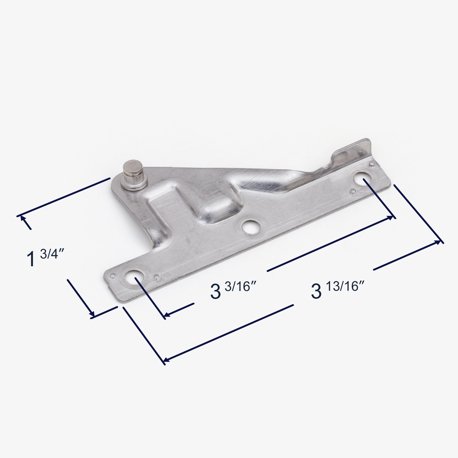

Dimensions for 39-530

Dimensions for 39-264
