This is my mystery storm door

Handy Person from Jackson, CA
Purchased in 2004-5 at Home Depot. Home Depot, Emco/Andersen and Larson are all pointing fingers at each other as to who the manufacturer is.... But I have not shared the photo of the cross-section of the retainer strip with any of them yet. There are no markings or labels on the door(that I can find).

Measurements for the door I have installed are:
height 96 3/16"
width 35 1/8"
thickness 1 5/8" ?- 1 11/16" measured with calipers at eye level

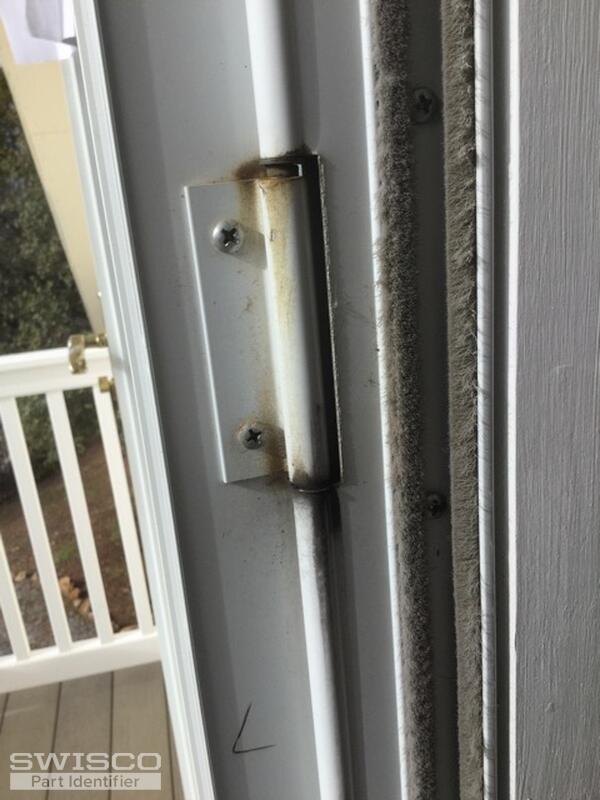

Do you folks have any idea who built this thing? What I need is a new hinge strip for the 8' door.
5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

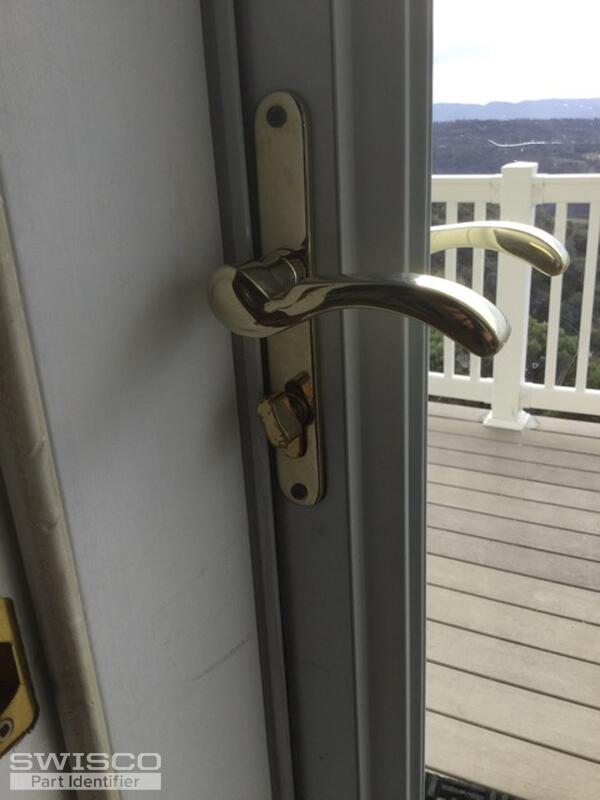

To be honest, this could be either Emco or Larson. I can't really tell from these photos. I can tell you that most of our storm door handle sets are generic, and I'm fairly certain yours uses generic hardware, as well. That's probably why nobody you've spoken to can figure it out.

You mention a hinge strip, which makes me think this is Larson. We don't get requests for this often, but whenever we do it's for a Larson door. I can't say with 100% certainty but I think that's where I'll point my finger.

I can tell you that we do not carry the hinge strip you mentioned but you could see if you can repair it with something like our 40-165, or maybe even replace it entirely with our 40-153. See what you think.

Handy Person from Jackson, CA
The winner is.... Andersen/Emco. This is an Andersen 3000 Series Fullview.

The thing that made Andersen reject it as theirs was my measurement of the height of the door slab. I was measuring 96 3/16"down the latch edge of the door, it APPEARED to do be the actual height of the door. In fact the real measurement was not possible until I removed the brass sweep. The measurement of the slab then was 95 1/18".

Andersen is providing me with a new hinge strip for what I think is a very reasonable price.
Tom
Tom from SWISCO
SWISCO
Expert

Ah, perfect! I'm glad you figured it out. Hopefully the new hinge strips works!
