This number is on a 26" channel balance

Home Owner from Hawaii

Aug 3, 2024 11:53 pm

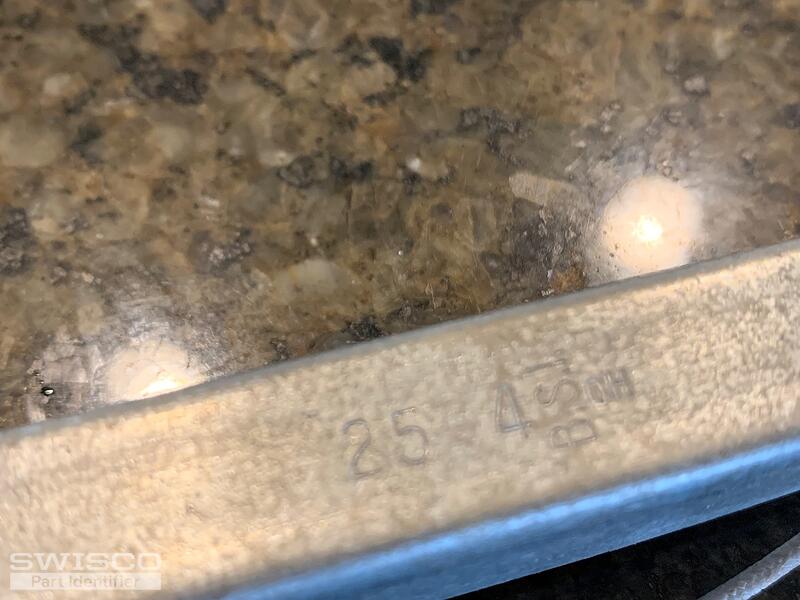

Please help us identify the correct part. The channel balance is 25 3/4" long and 1/2" wide. The photo shows the markings on the part. If you can help us identify the part, that would be very helpful. Thank you!

1 user uploaded image

4 Replies

Emily from SWISCO

Aug 6, 2024 1:03 pm

Hello there!

Thanks for reaching out to us. I'm afraid the stamp doesn't help us ID your hardware. Can you upload photos of the top and bottom fittings? We'd also like to see a photo of the metal clip attached at the end of the pulley cord.

Home Owner from Hawaii

Aug 7, 2024 1:45 pm

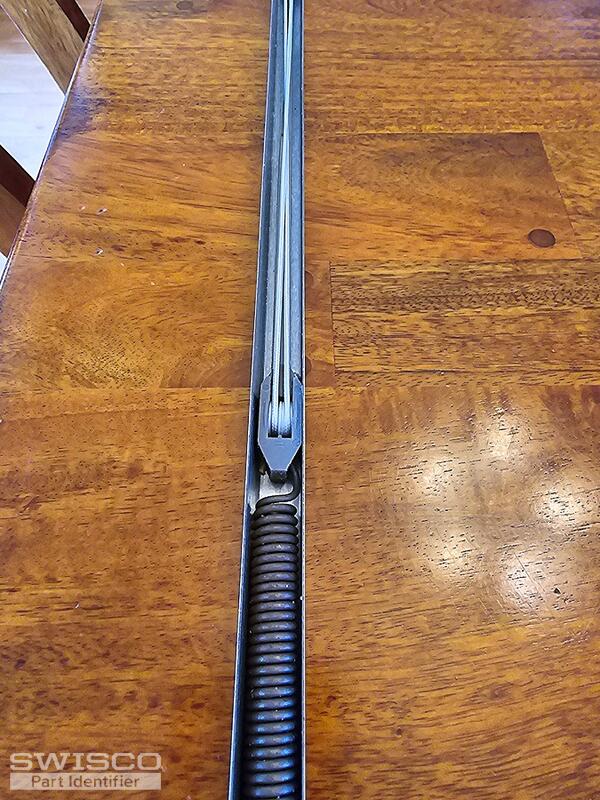

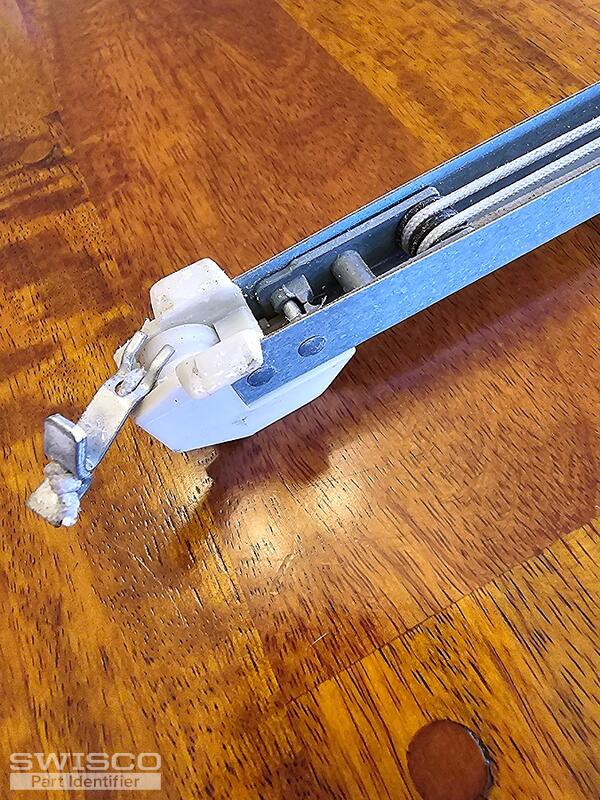

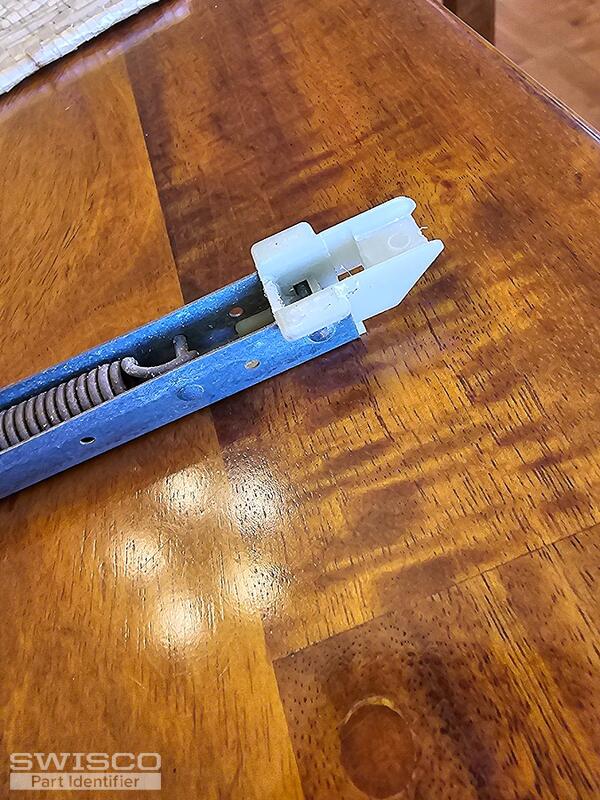

Do you need other photos?

3 user uploaded images

Emily from SWISCO

Aug 9, 2024 8:50 am

Thank you for waiting while we looked into this. What you have here is an extended travel balance which means this must be a custom order. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 5/8" which is what makes it custom. For example, the metal channel should measure 25-5/8" long. Custom orders are nonrefundable and we can't promise our replacements will work if the length differs. You may want to triple-check just to be safe.

With that said, I'll go ahead and email you a purchase link for (2) of these balances that you can use to place an order on our website.
