Tie Bar Replacement

A home owner from Warwick, RI says:
January 8, 2023

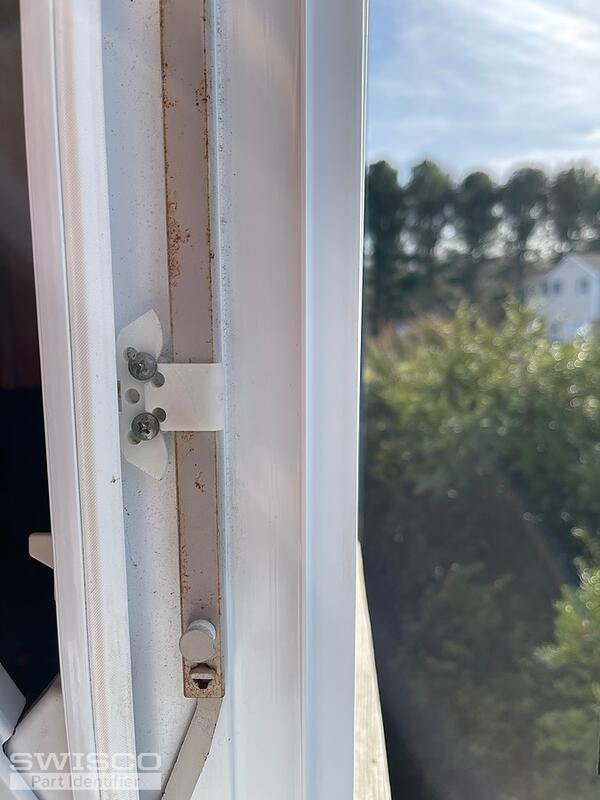

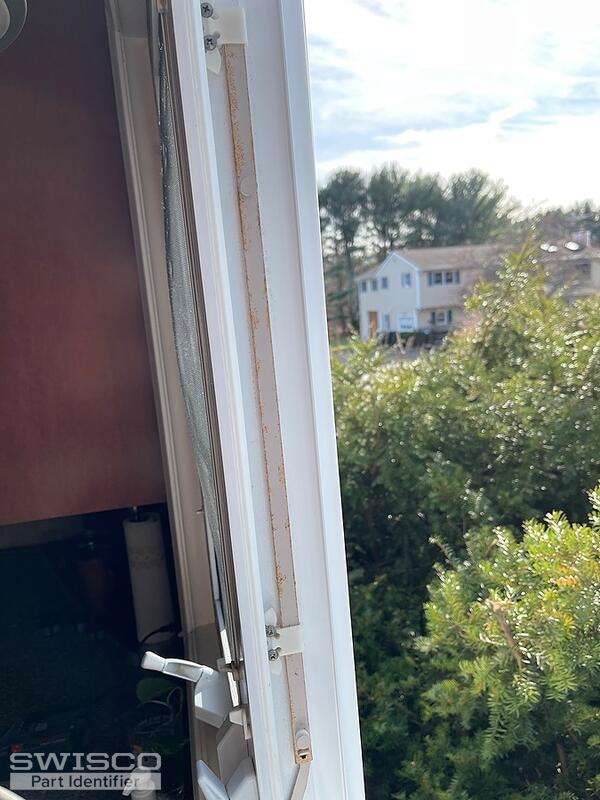

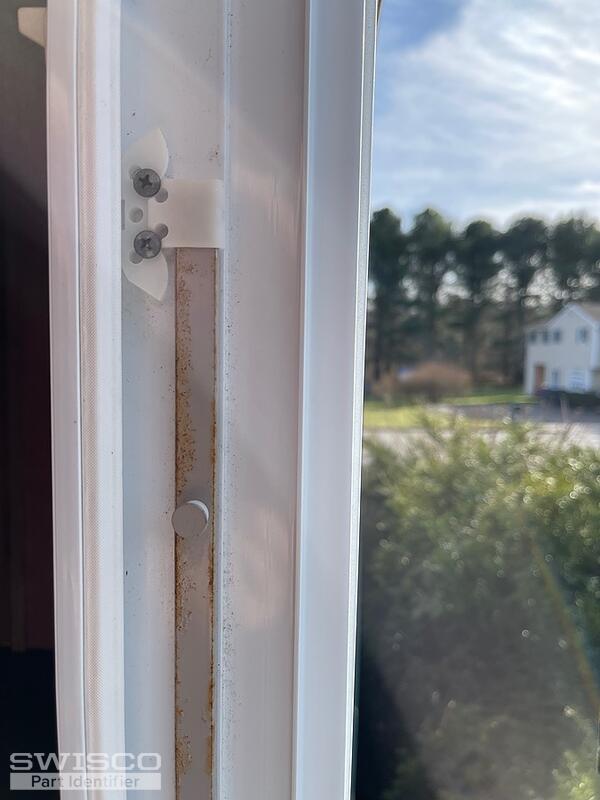

I'm trying to locate an 18.9" Tie Bar with two locking posts (rollers?). I found your part #38-951 - "18.9" Tie Bar, 2 Interlock Roller" but the product photograph and detail drawing show a tie bar with three posts (rollers?). The bar I need is overall 18.9 with the upper post (roller) at 3.75" (approx) from the top and the lower post (roller) at 18.125" from the top. I am including a photograph of the part I need (photo is of the one on the second window in the casement set).

Can you tell me if the 38-951 is in fact the the correct part and which bar guides I should also order?

Thank You,

John

Thumbnail of the uploaded file named IMG_2469.jpeg
Thumbnail of the uploaded file named IMG_2470.jpeg
Thumbnail of the uploaded file named IMG_2471.jpeg
Profile picture of Casey
Casey from SWISCO responded:
January 10, 2023

Hello,

I agree that the 38-951 tie bar would be our best replacement option as long as the specifications shown below match up to yours.

Also, see the 39-448 tie bar guide, along with the related videos for more information. Thanks for posting!

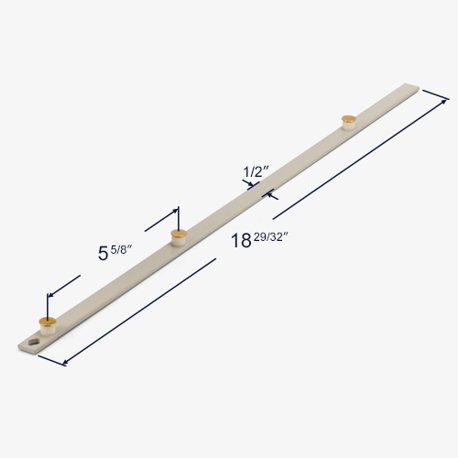

Dimensions for 38-951
Dimensions for 38-951
18.9" Tie Bar, 2 Interlock Roller
18.9" Tie Bar, 2 Interlock Roller
38-951
$15.09
Tie Bar Guide
Tie Bar Guide
39-448
$0.90
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
SWISCO 39-417 Tie Bar Guide
SWISCO 39-417 Tie Bar Guide
VIDEO
WATCH >
Replacing tie bar guides
Replacing tie bar guides
GUIDE
READ >
