Tie bar replacement

A home owner from Colorado says:
August 6, 2020
Hello,
I have a small bathroom window and need to replace the tie bar. The width of your item 38-951 is correct and the rollers look correct but mine is 11" long and the distance between the two rollers is 6 1/4" instead of the 5 5/8" in your drawing. My window actually could accommodate a longer tie bar with 3 rollers. I wonder whether the original bar was cut down?

Is there a version with a 6 1/4 distance between the rollers or will I have to move the keeper position?
If I go with the 38-951 I would also need three 39-448guides and three new left hand keepers (1/2 inch version)
Thanks in advance for your help.

Frank

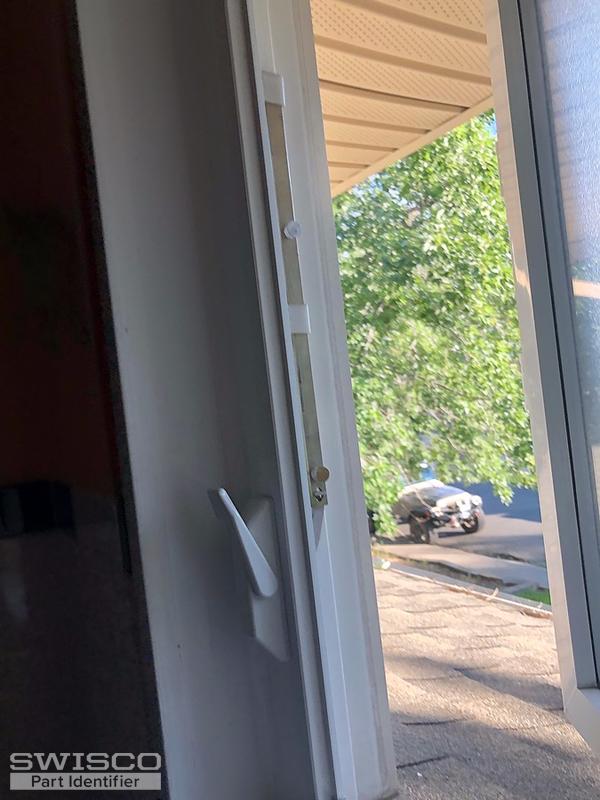

Thumbnail of the uploaded file named IMG_7050.jpeg

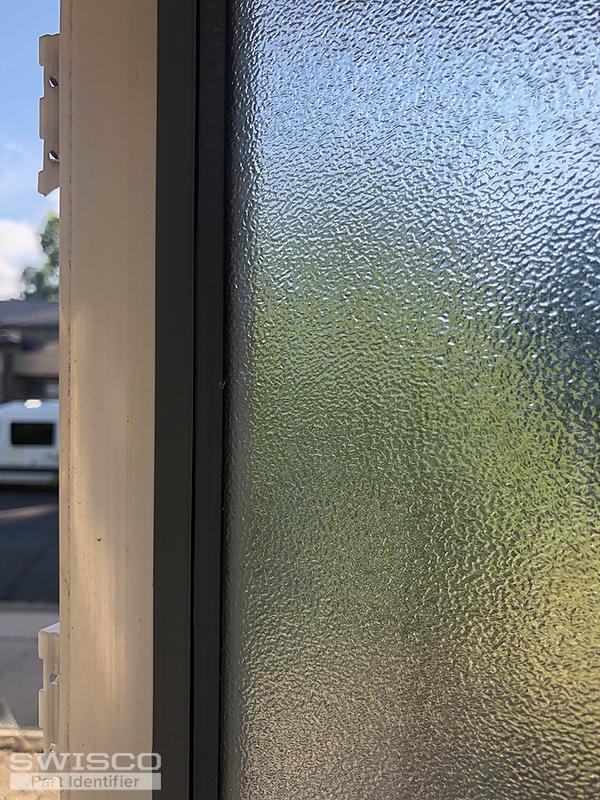

Thumbnail of the uploaded file named IMG_7049.jpeg
Profile picture of Tom
Tom from SWISCO responded:
August 11, 2020

Could you be looking for our 38-949? This is a 10.9" long tie bar with two interlock rollers at 6-5/16" apart. Look it over and see what you think.
A home owner from Colorado says:
August 11, 2020
Thanks Tom. That is exactly what I need. This tie bar did not show up on my search for some reason.
10.9" Tie Bar, 1 Interlock Roller
10.9" Tie Bar, 1 Interlock Roller
38-949
$11.24
18.9" Tie Bar, 2 Interlock Roller
18.9" Tie Bar, 2 Interlock Roller
38-951
$15.09
