Tie bar replacement for casement window (unknown brand)

A quick learner from Edwards, CO says:
February 22, 2023

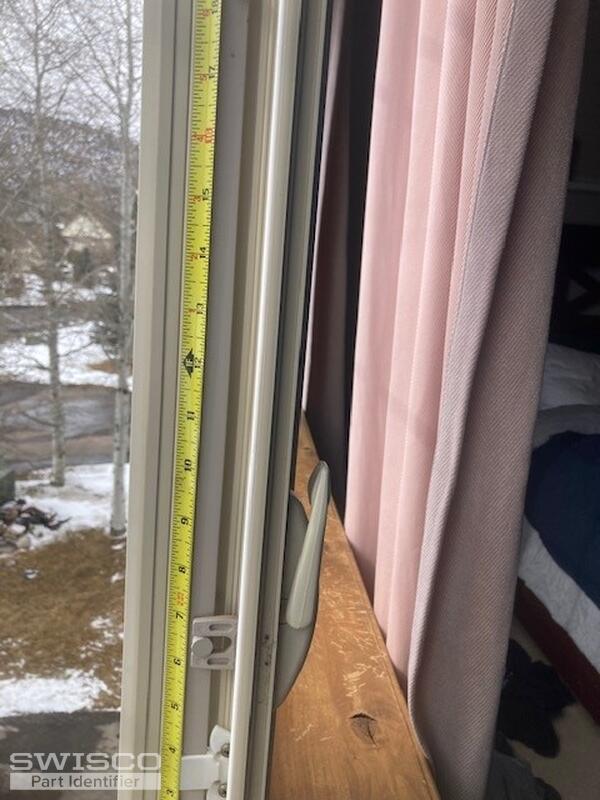

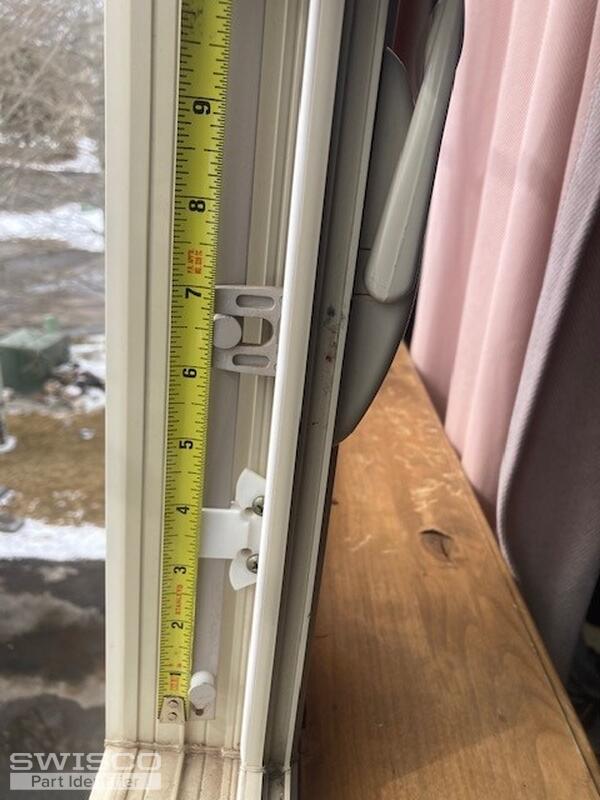

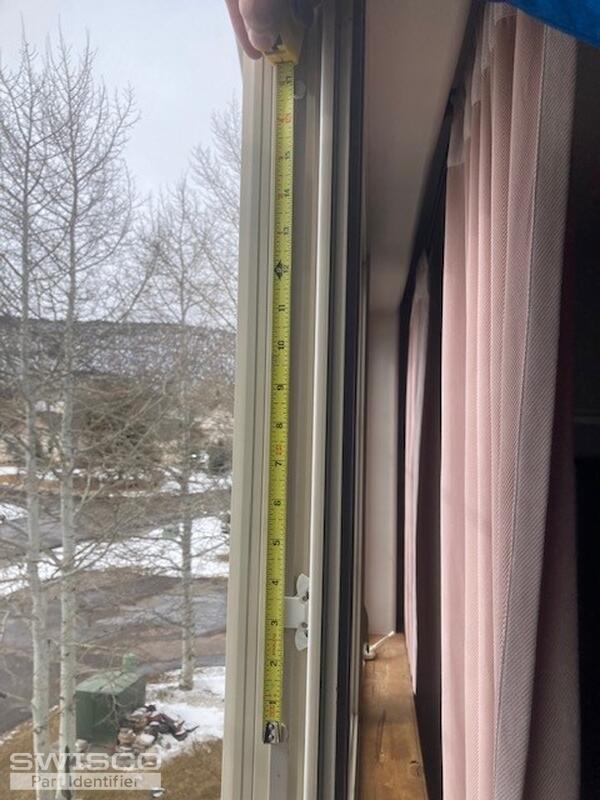

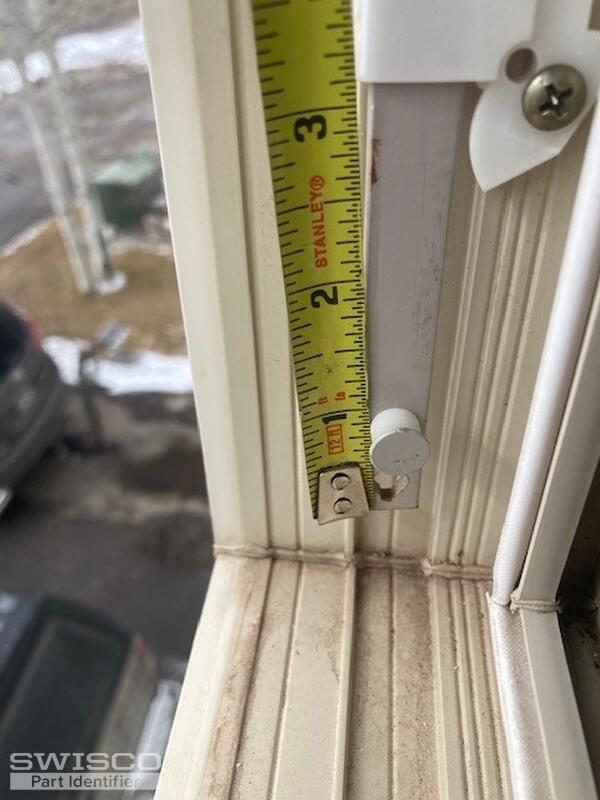

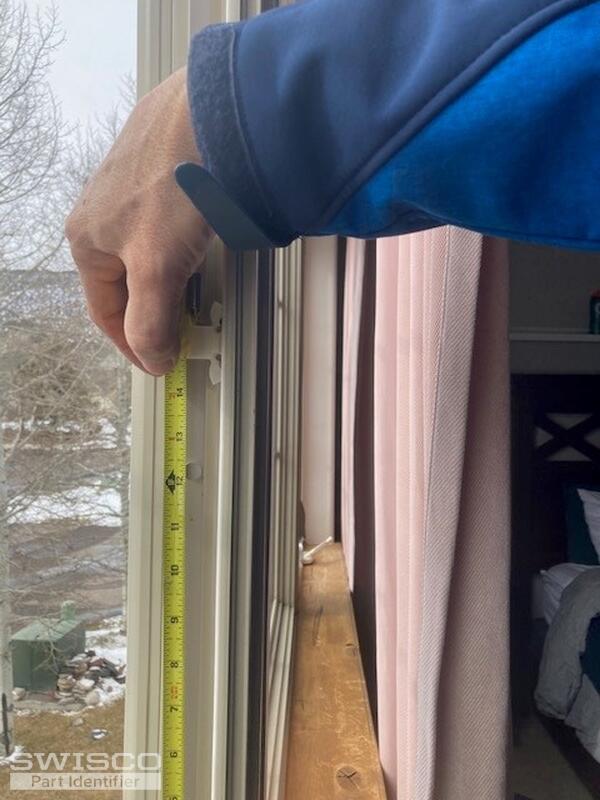

I need to replace the missing tie bar (like the one shown). It measures 39" and has 3 cone rollers and 1 lock drive point. Please advise. The pictures show the separation between cones if it makes a difference.
Thumbnail of the uploaded file named 1.jpg
Thumbnail of the uploaded file named 2.jpg
Thumbnail of the uploaded file named 3.jpg
Thumbnail of the uploaded file named 4.jpg
Thumbnail of the uploaded file named 5.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
February 23, 2023

Thanks for posting. Your tie bar appears to be similar to our 38-967. Carefully review and compare the measurements below to confirm that this is the right replacement for you. Also be sure to compare the lock point style and locations, compared to your exiting tie bar, as these can vary quite a bit.

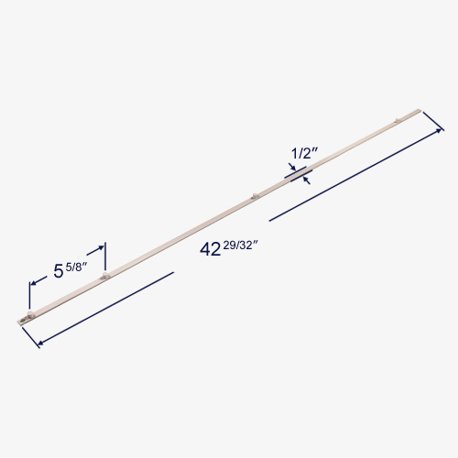

Alternate view of 38-967
Alternate view of 38-967

The tie bar guides compatible with this tie bar are parts 39-417 and 39-448. They are not an exact match to your existing hardware but should work as suitable replacements.
42.9" Tie Bar, 3 Interlock Roller
42.9" Tie Bar, 3 Interlock Roller
38-967
$19.25
Tie Bar Guide
Tie Bar Guide
39-417
$1.75
Tie Bar Guide
Tie Bar Guide
39-448
$0.90
Maxim Multi-Point Lock, Medium Slider
Maxim Multi-Point Lock, Medium Slider
38-095
$16.97
Maxim Multi-Point Lock, Long Slider
Maxim Multi-Point Lock, Long Slider
38-096
$16.97
