26-7/8" Tie bar and guide

Handy Person from Springfield Mo
Jul 18, 2019 3:47 pm

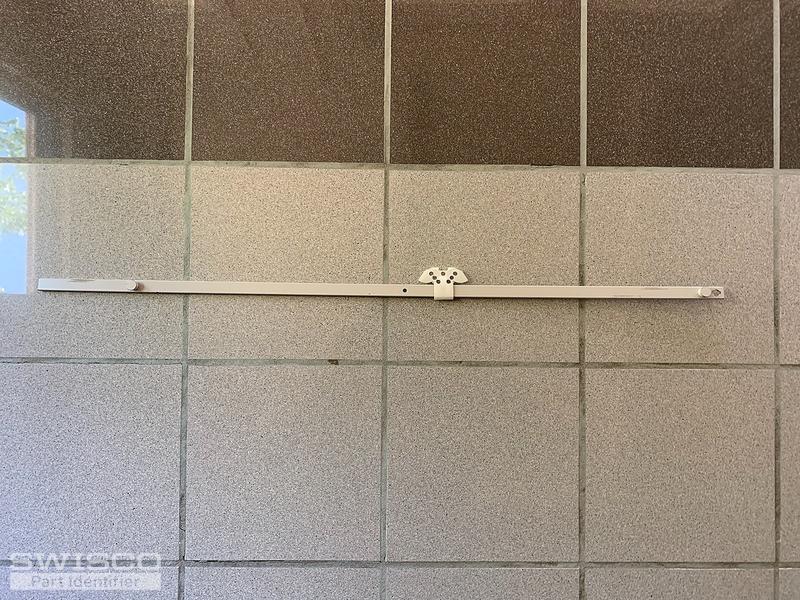

The overall length of the tie bar is 26 7/8". The first roller is 13/16" (on center) from the end. The distance between the rollers is 21 15/16".

I also need a guide that will work with this.

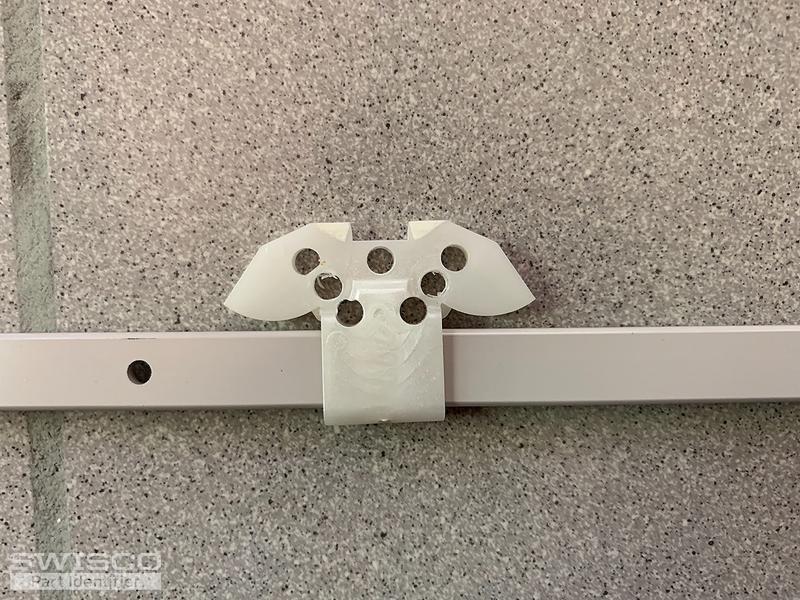

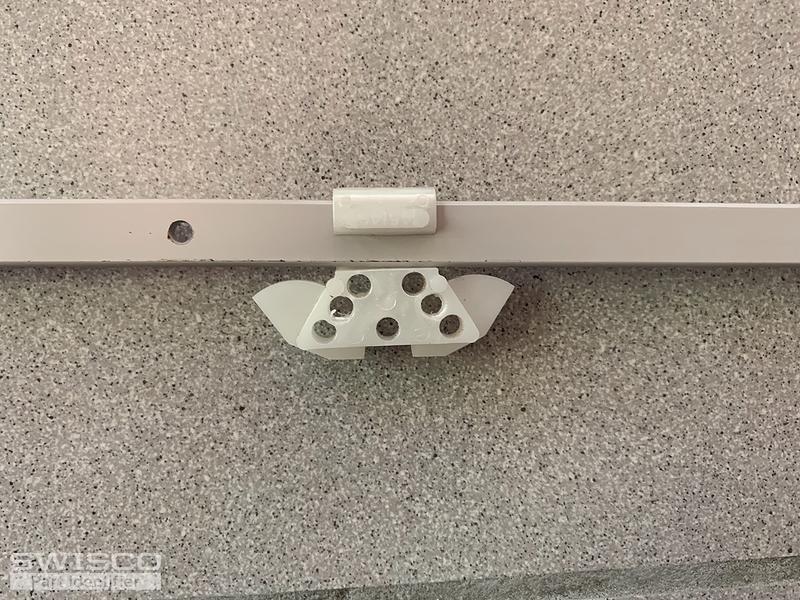

BF2B2771-B69B-4BAE-B9D8-50F084AE872E 3E001EF3-EA23-43F3-AF89-1D3A4A39E2B3 FD820813-C0F9-4634-835B-6F53EE7379A1
3 user uploaded images
2 Replies
+ Add a Comment
Tom
Tom from SWISCO
Jul 24, 2019 10:45 am
SWISCO
EXPERT

Thank you for your patience during this busy summer. We don't currently have a tie bar that matches your specifications, but please give us a little time to look into it and we will let you know as soon as we have more information. Thank you!

Tom
Tom from SWISCO
Jul 25, 2019 1:54 pm
SWISCO
EXPERT

Hello again! Please see our 38-954 tie bar and 39-417 tie bar guide. Carefully compare these products to your hardware and let me know what you think.

+ Add a Comment
Products and resources found in this discussion
Tie Bar Guide
Tie Bar Guide
39-417
$1.75
26.9" Tie Bar, 2 Interlock Roller
26.9" Tie Bar, 2 Interlock Roller
38-954
$15.95
