Tie-bar and guides Inquiry

Quick Learner

Dec 5, 2023 9:24 am

I am in need of a window tie-bar and the three guides that go with it.

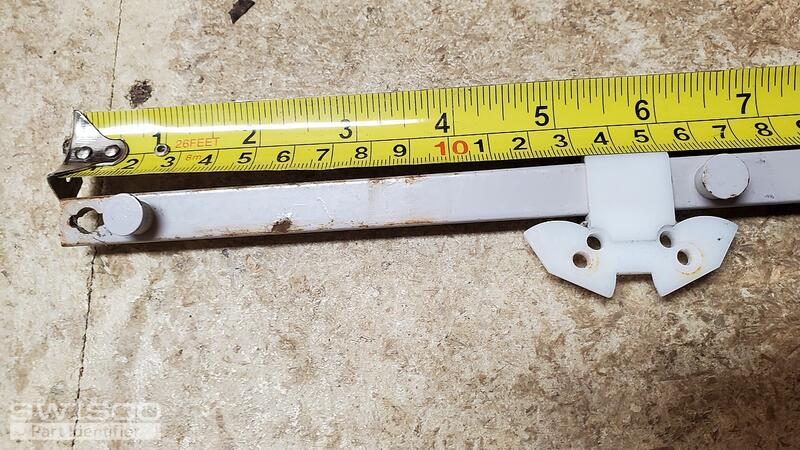

Based on my research I think I need what is pictured below

4 user uploaded images

4 Replies

Casey from SWISCO

Dec 5, 2023 3:36 pm

Hello,

The 39-417 tie bar guide will work for your repair but the replacement tie bar will depend on the number of rollers that yours has, which I can't make out in your photos. If you have any doubts, feel free to get back to us with another clear photo of the entire tie bar showing all of the lock points to help us confirm if the 38-965 would be the correct replacement. Thank you.

Landlord from Minneapolis

Dec 6, 2023 9:44 am

The tie-bar that I am replacing has 4 knobs on it. One connects to the lock handle and 3 are for the lock points. So it appears to me that item 38-965 will fit. Does that seem correct to you?

Casey from SWISCO

Dec 6, 2023 10:09 am

As long as your tie bar has three interlock rollers and one lock drive point, I agree that the 38-965 would be our best match. Just let us know if you have any other questions.
