Tilt Latch

A home owner from Murfreesboro, TN says:
June 4, 2023

I purchase my windows from All Season Window Co in Owensboro KY in 1999.

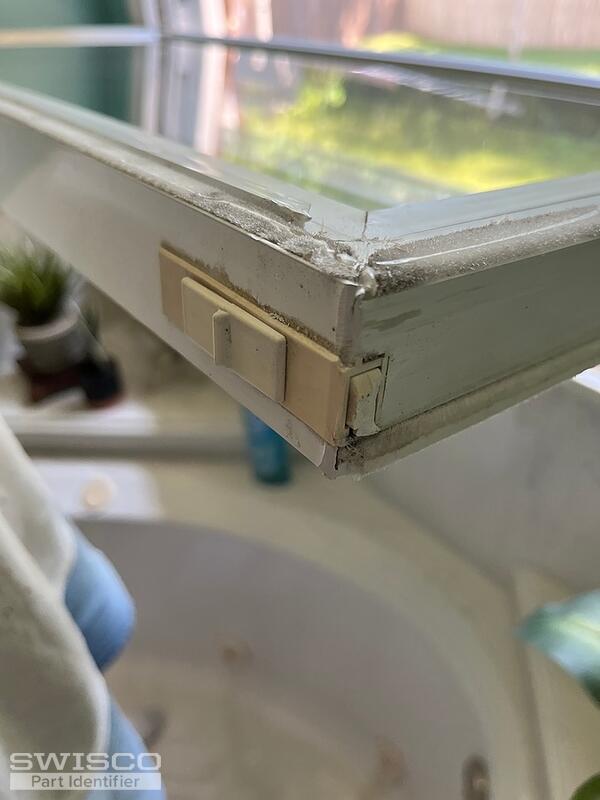

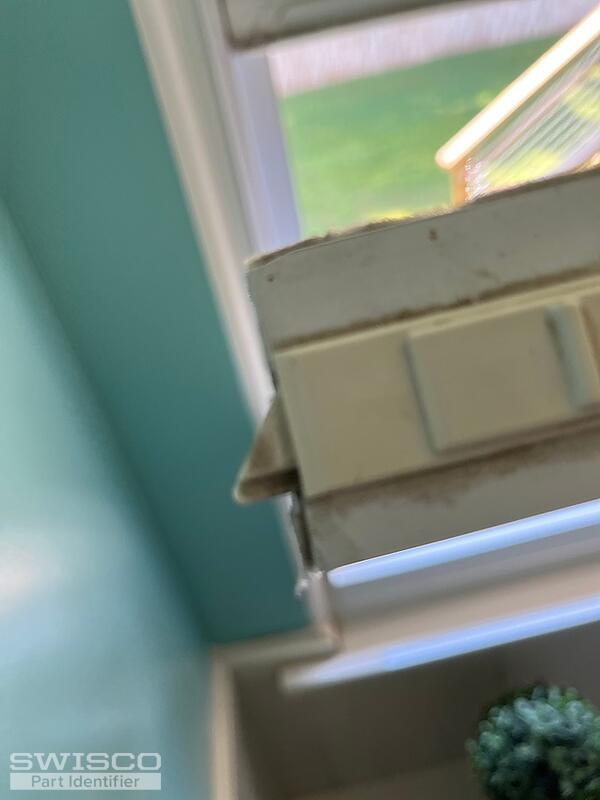

The folder I still have says they are a Chelsea product, In need a new pair of window latches, see photo. will also need help with removal.

Thanks

Neil

Thumbnail of the uploaded file named IMG_5289.JPG
Thumbnail of the uploaded file named IMG_5288.JPG
Profile picture of Bob
Bob from SWISCO responded:
June 4, 2023

Hi Neil. This tilt latch actually reminds me of older versions of the Certainteed 26-317. The locking tooth's shape makes me wonder however if it's closer to our 26-243 and 26-244 pair. To figure out if either of these sets are what you need, you'll have to remove the tilt latches from the window to compare with the dimensions listed below. Let us know if either the 26-317 or the 26-243 & 26-244 match what you're looking for. Also see the video below that shows how to remove and replace surface mounted tilt latches; I think you will find it helpful.

Side view of 26-317
Side view of 26-317
Profile view of 26-317
Profile view of 26-317
Detail of 26-317
Detail of 26-317
Alternate view of 26-243
Alternate view of 26-243
Profile view of 26-243
Profile view of 26-243
CertainTeed Top Tilt Latch, Pair
CertainTeed Top Tilt Latch, Pair
26-317
$14.45
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
