Tilt Latch Inquiry

Question

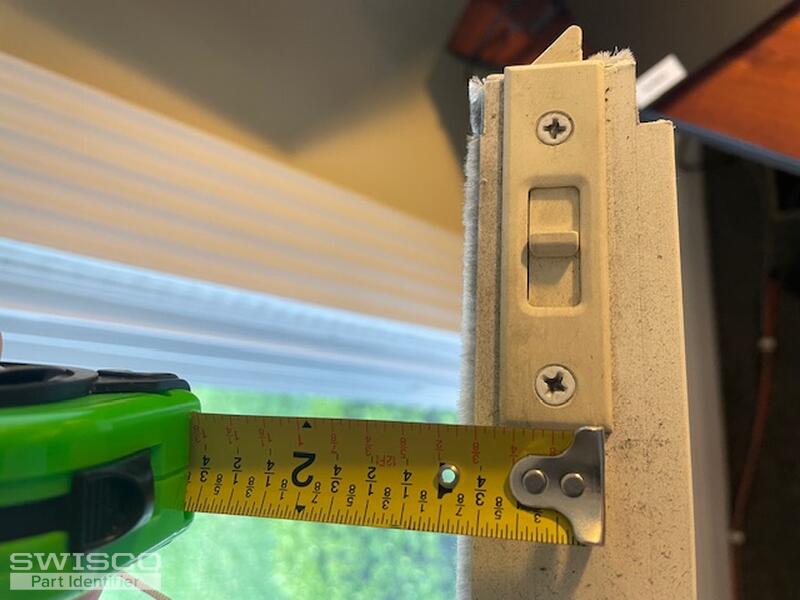

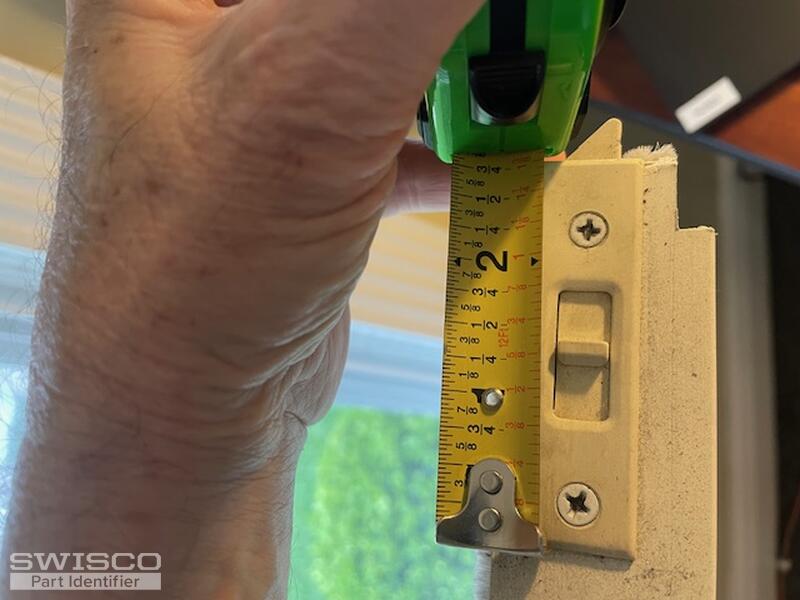

Looking for the correct replacement tilt latches based on the measurements in picture.The screw holes are 2 inches apart and the depth is correct at 5/16th.

The latch, per my new pictures is 2 and 7/8 long and 3/4 wide. The underside does have a curved end (see picture of underside).

Bob · Accepted Answer

Thanks for posting. We don't have an exact match for your tilt latch, but see our 26-337. The hole spacing on this tilt latch is 2", from the center of each mounting hole. The offset, or distance between the center of the forward hole and the edge of the latch body from which the tooth protrudes, is 13/16". See the diagram below. These dimensions look close to what you show, but it's admittedly not always reliable to read measuring tape from a photo, so please double-check those measurements and let me know how they differ, if at all. If they match, then I think the 26-337 could work as a substitute.

Detail of 26-337
