The right hand tilt latch is broken on one of my windows. I'm not sure how to remove it to send a picture of that, I need to see what the replacement looks like to know what I need to release to get the old latch out. I've attached 4 pictures:

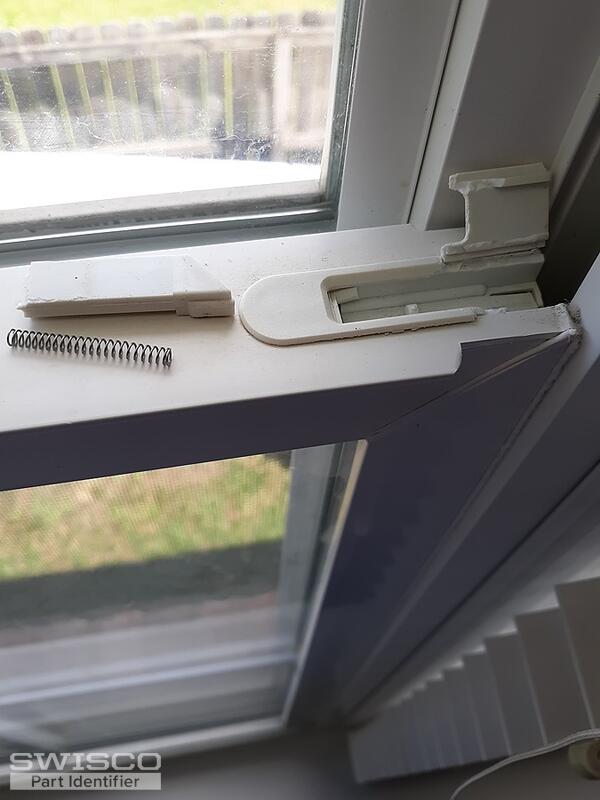

1 - is the latch showing what is broken.

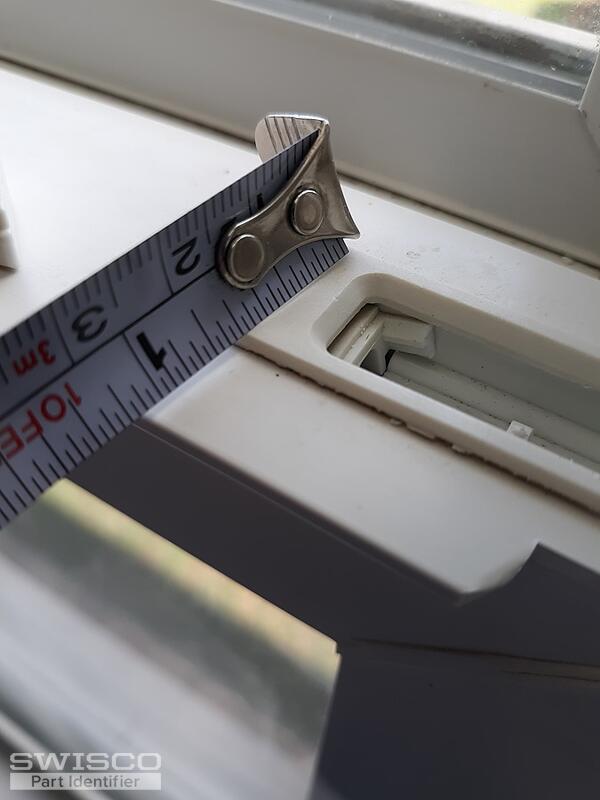

2 - shows the length from the edge of the window, it is 2 5/8" or 2 9/16"

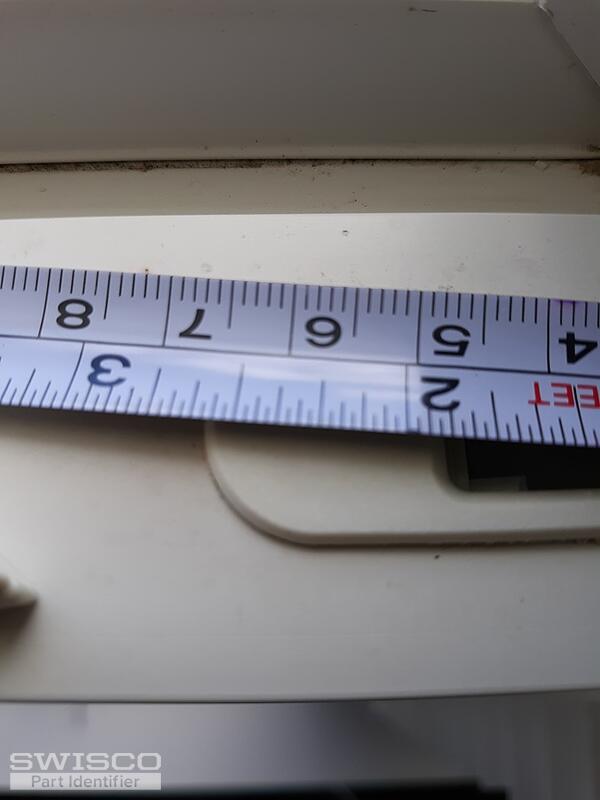

3 - shows the width - 5/8"

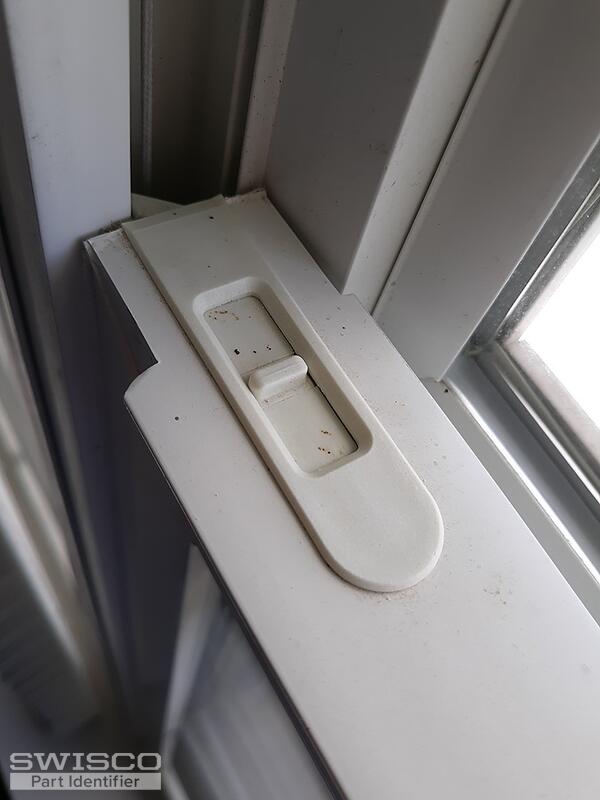

4 - shows the left hand good latch
Tilt Latch for H-R25-46x77
Quick Learner from northport, al
May 13, 2021 3:59 pm
4 user uploaded images
7 Replies
Emily from SWISCO
May 14, 2021 2:35 pm
Hi there!
We'll need to see a picture of your undamaged latch removed from your window to compare to our inventory. The video below explains exactly how to remove a tilt latch. Let me know if that helps.
Quick Learner from northport, al
May 14, 2021 5:57 pm

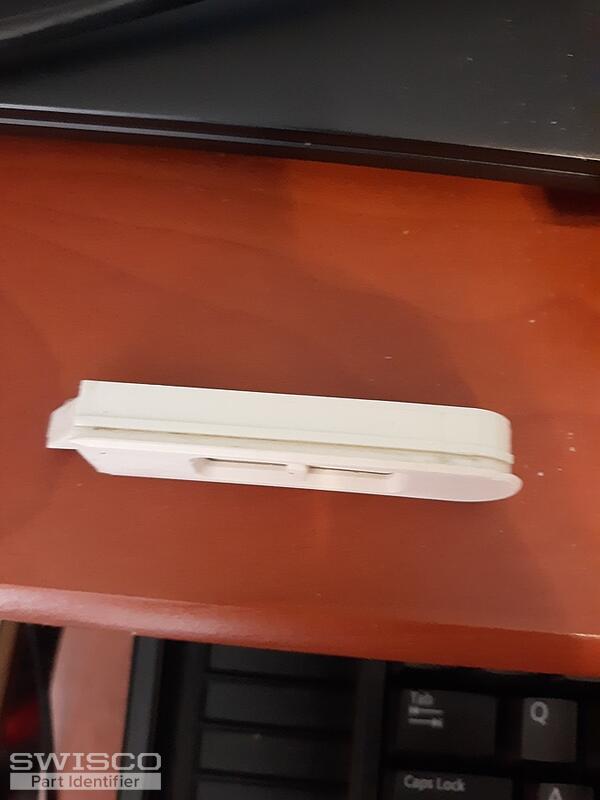

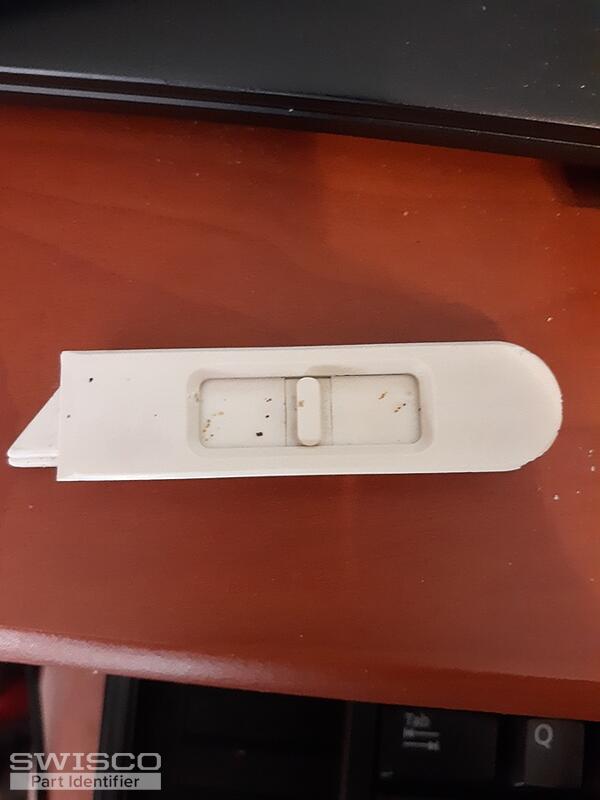

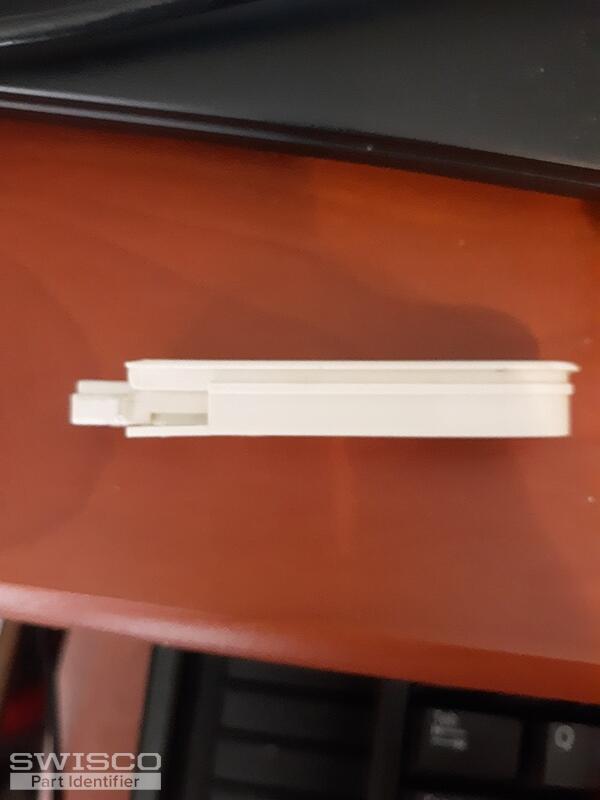

Here is the left side latch
4 user uploaded images
Quick Learner from northport, al
May 14, 2021 6:01 pm

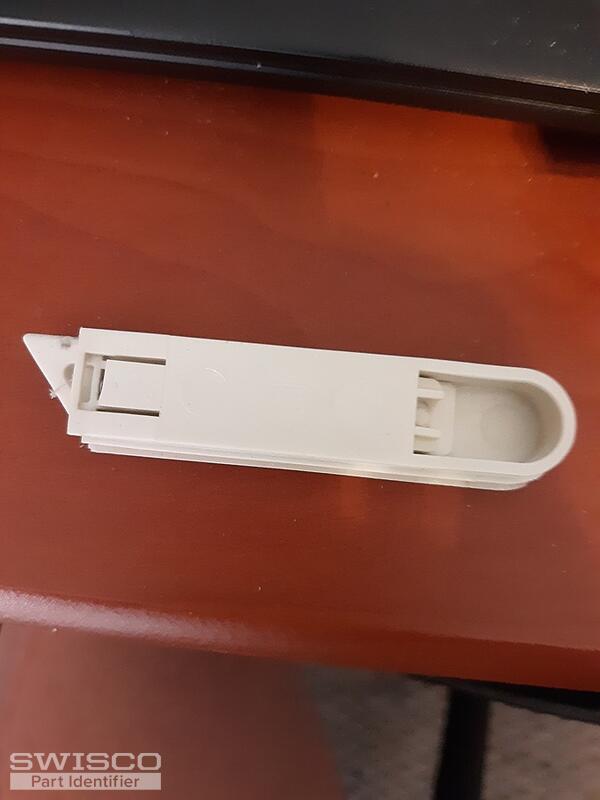

on the bottom I see some information, on the tab is 75, there is an E in the middle and Pat#5,139,291
I hope this helps.
I hope this helps.
Quick Learner from northport, al
May 17, 2021 9:33 am
Emily,
Looks like those are the ones. I will order them now. Thanks.
Looks like those are the ones. I will order them now. Thanks.
Emily from SWISCO
May 17, 2021 9:50 am
We appreciate your business! Let us know if any other questions come up, we'll be here to help.
