Tilt Latch and 795 question

Question

Need part number for this,  ordering 795's , also if window weighs 22lbs would you recommend "D", ordered one from you before used "C", seems ok but do not want it to be wrong as I am about to order 6 more sets of 34", just making sure I am measuring correct, window pain that tilts is 35" long, 34" seems fine, also have 2 more sizes I am ordering, just want to make sure is orrect, the old channels consist of spring, rod, shoe,  white plastic piece which rod broke through and string, so really don't havechannel to measure and go by,please advise

Tom · Accepted Answer

Thanks for posting! If your old balance was stamped 34C, and if your sash weighs 22 pounds, then you should stick with that. A 34D stamp would be too strong and you will have a hard time closing your windows.

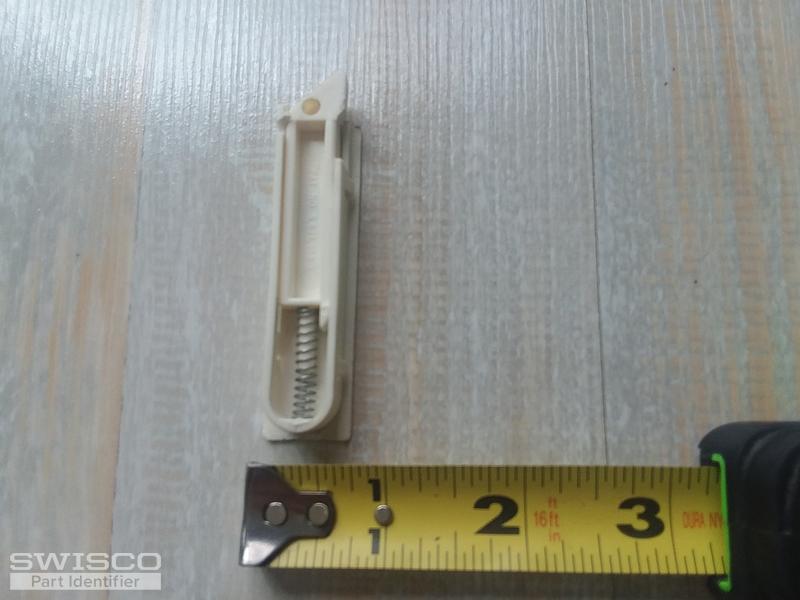

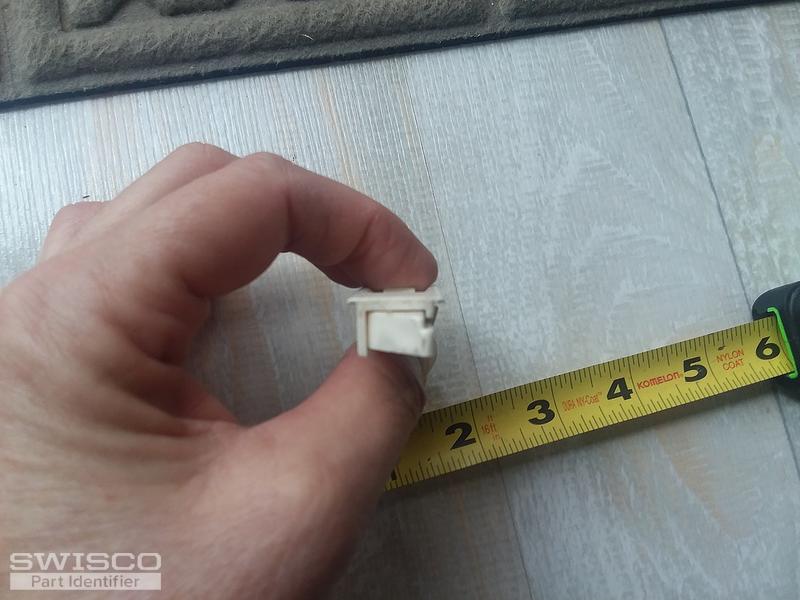

As for the tilt latch in your photos, I recommend our 26-243 and 26-244. I highly recommend looking over our photos and measurements just to make sure they match.
