Tilt Latches

Quick Learner from Florida
Nov 1, 2023 3:07 pm

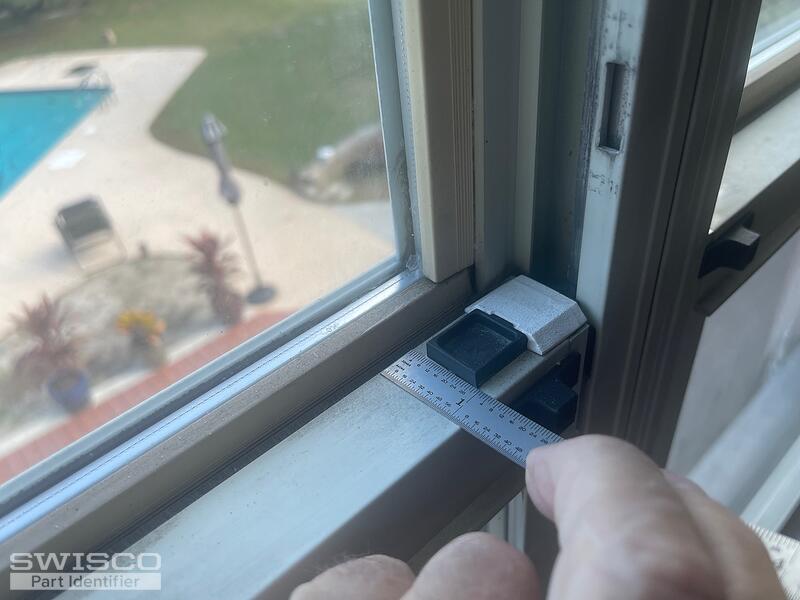

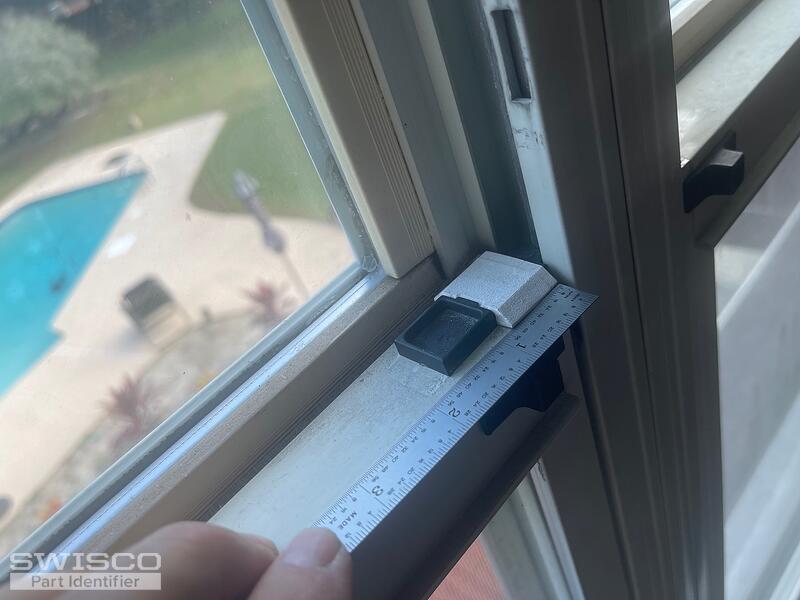

Well, I sent the wrong pic. Enclosed is the correct one with additional pics

Color doesn't matter. Black or white. It looks like these were glued?

IMG_4656 IMG_4658 IMG_4657 IMG_4659 IMG_4660
5 user uploaded images
1 Replies
Dave Sr.
Dave Sr. from SWISCO
Nov 3, 2023 1:39 pm
SWISCO
EXPERT

Thanks for reaching out to us. I'm reminded of our 26-088P. I recommend you review the specifications to see if they match what you need.

Alternate image for 26-088P
Alternate image for 26-088P

To install the 26-088P tilt latches, you must remove the top rail off the bottom sash. First, you need to remove the top corner screws which hold the sash together. After the screws are removed, carefully take the top rail off the window and glass. Be very careful not to damage the glass in the process. In some cases, you can push back the top rail off the glass. Try wiggling the top rail a little and if you have to, use a hand-held hair dryer on a low setting to soften up the adhesive that seals the glass to the frame. Then the top tilt slides into the top rail from the sides.
