Tilt Latches & Pivot Bars
Landlord from Boston
Jul 29, 2024 5:18 pm

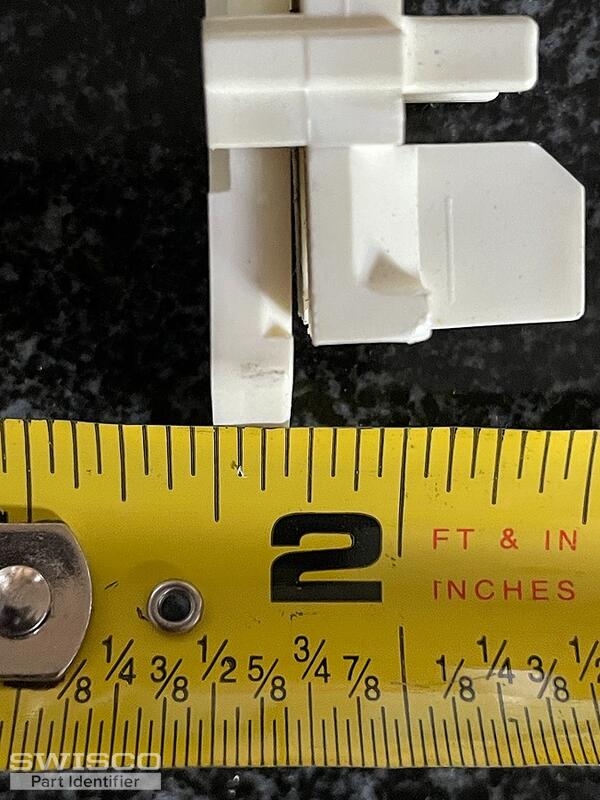

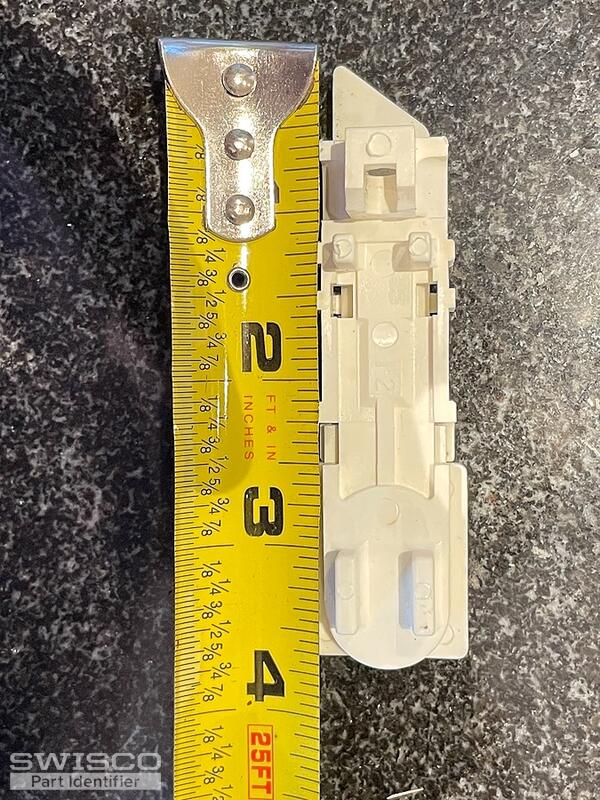

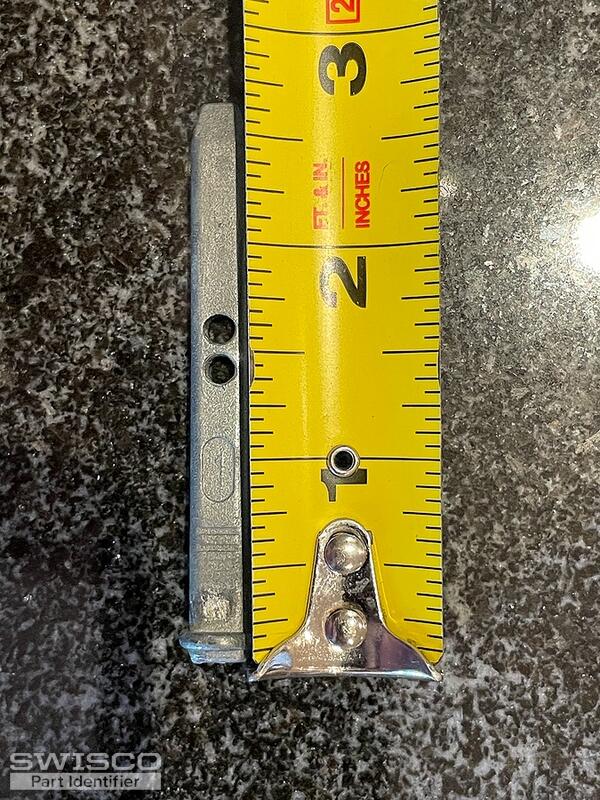

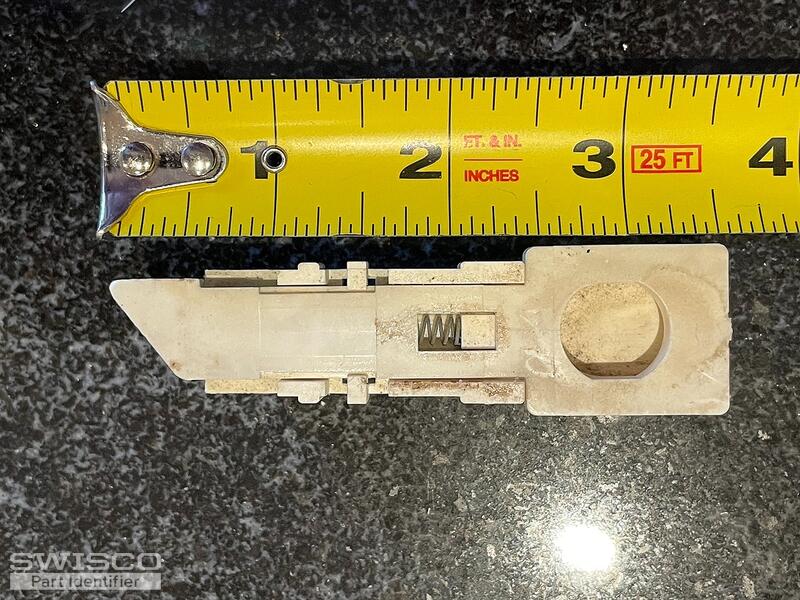

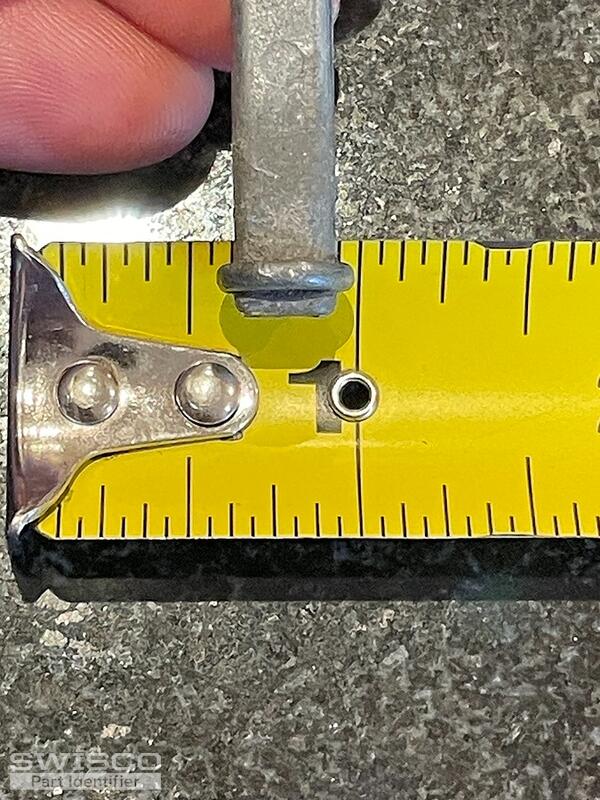

I need seven sets of these parts for "construction grade" vinyl, double-hung windows. I have more photos if you need them. Thanks for your help.
5 user uploaded images
4 Replies
Emily from SWISCO
Jul 31, 2024 10:32 am
Hi there!
Thanks for reaching out to us. We don't sell your tilt latch, unfortunately. The 26-132P is similar though we can't make any promises.
Dimensions for 26-132P
Additional dimensions and alternate view for 26-132P
The pivot bar reminds me of the 26-030, 26-226, and 26-352. They appear to be our best matches but review the specifications and see what you think.
Alternate view of 26-030
Detail of 26-030
End view of the 26-226 pivot bar
Alternate image for 26-352
Alternate view of 26-352
Landlord from Boston
Jul 31, 2024 2:13 pm
Hi Emily,
With one exception, all of the measurements for the tilt latch match. I think that I can make it work.
As for the pivot pins, it's not 100% clear from which face on the socket end you're measuring the distance of the holes. Any one of them might work. I guess that I'll order one of each and hope that one of them fits.
Thanks for your help.
With one exception, all of the measurements for the tilt latch match. I think that I can make it work.
As for the pivot pins, it's not 100% clear from which face on the socket end you're measuring the distance of the holes. Any one of them might work. I guess that I'll order one of each and hope that one of them fits.
Thanks for your help.
Emily from SWISCO
Aug 1, 2024 8:22 am
No problem, I'm happy we could be of help! Our return policy can also be found here.
