Tilt Window Balance Leveler Spring

A home owner from San Diego, CA says:
August 2, 2021

My existing springs are over 23 years old. I am looking a replacing at least six springs, but may be adding more to the list as I weigh more windows that need springs.

I had spring service years ago and it looks like they used a green tip part not the red tip for my window weight of 9.6 pounds. I measure a 3/8 inch spring housing with a length of 23 inches.

Photos are attached above.

What replacement springs do you think will work for me?

Thank you,

Rick

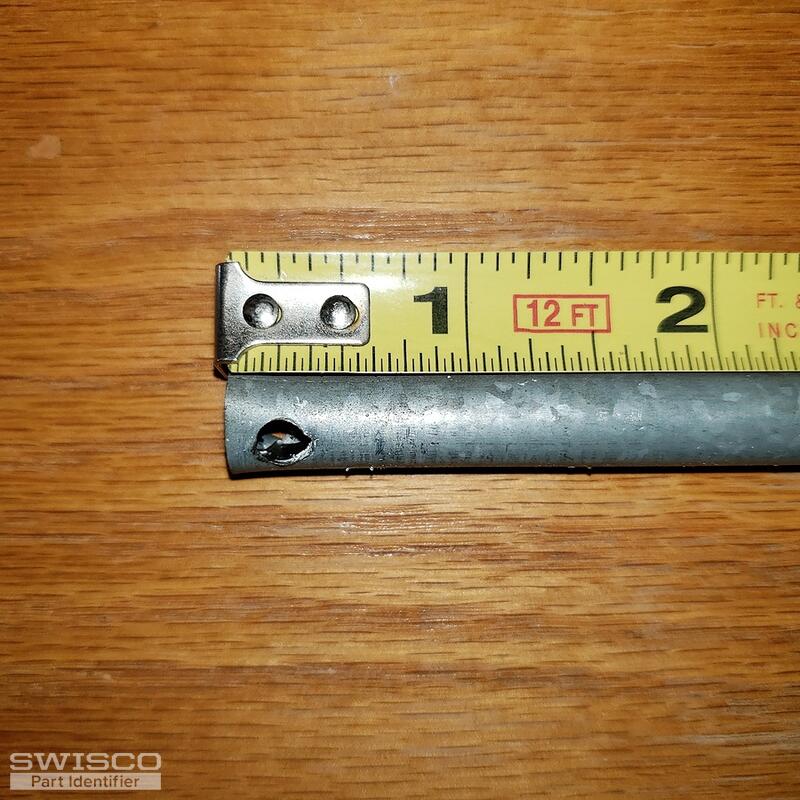

Thumbnail of the uploaded file named 3-8 Inch Window Leveler Spring Green.jpg

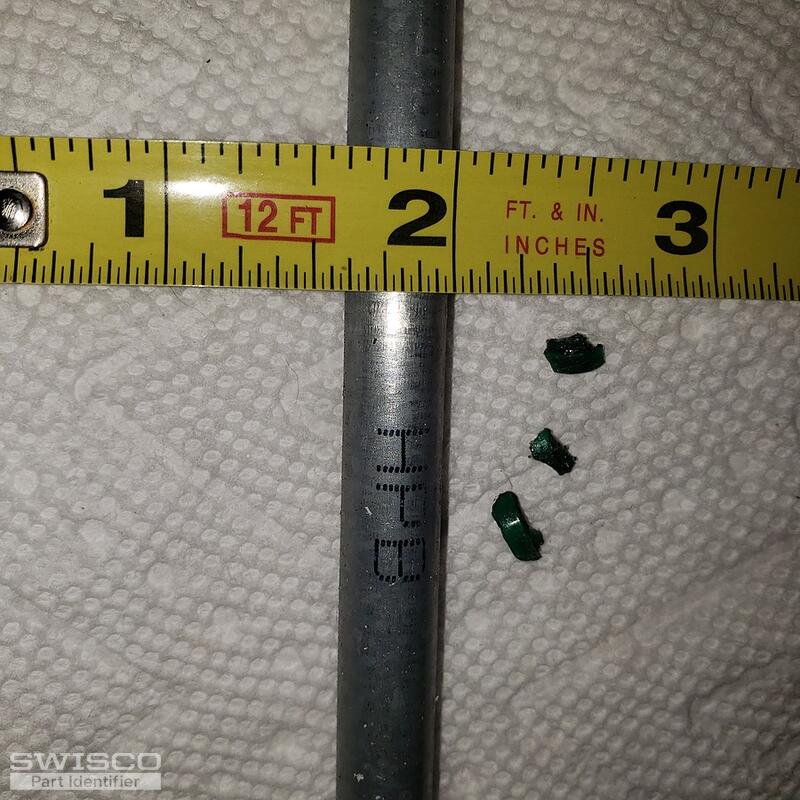

Thumbnail of the uploaded file named Green Window Leveler Spring 23 Inch Length.jpg

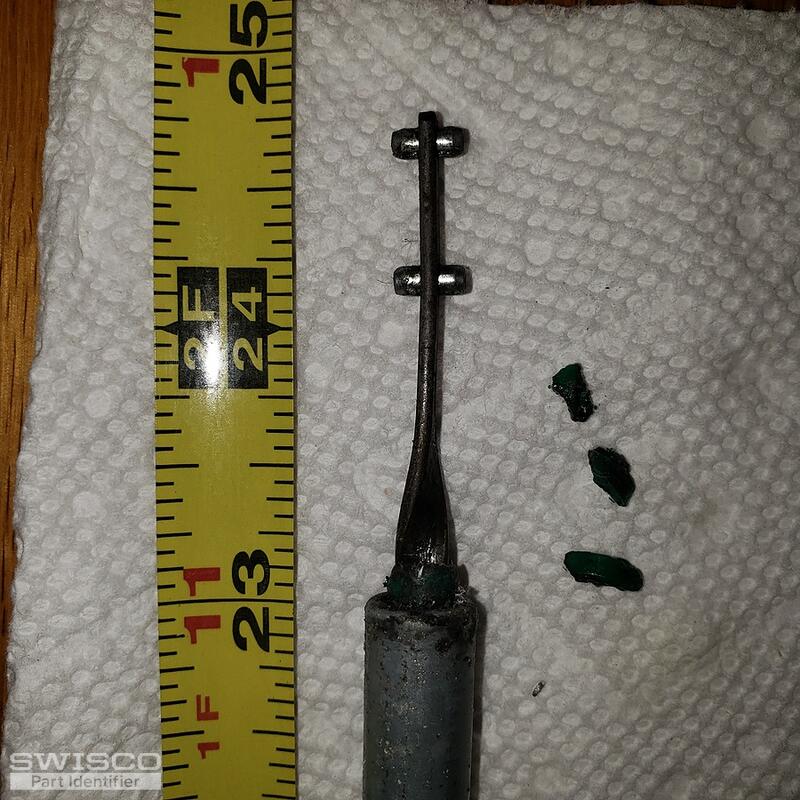

Thumbnail of the uploaded file named leveler spring attach end.jpg
Profile picture of Bob
Bob from SWISCO responded:
August 5, 2021

Thanks for posting. See our S900-23 3/8" Spiral Balances. If the window sash weighs 9.8 pounds, use a Red Tip option, which will cover a window sash in the weight range of 7 through 21 pounds.
