Tilt Window Channel Balance Parts

Home Owner from New Oxford, Pa

Nov 22, 2019 10:59 am

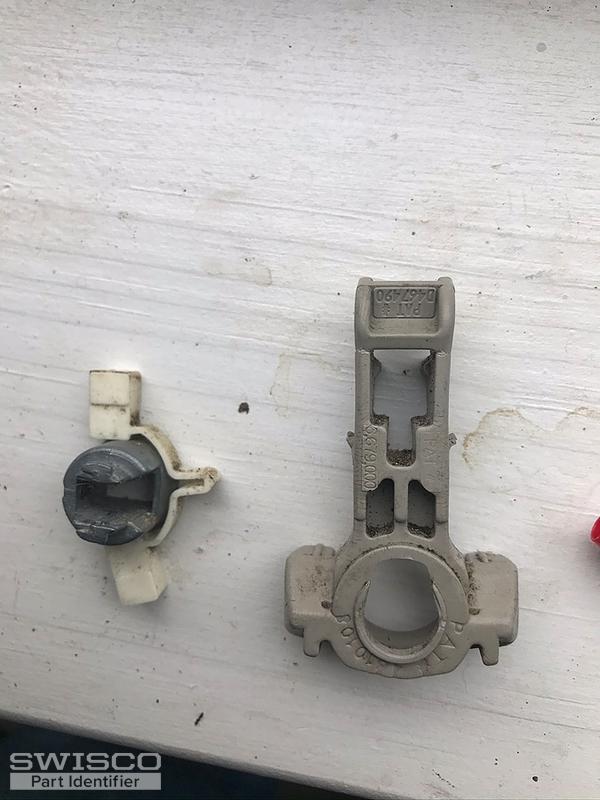

I'm in need of Channel Balances, Balance Shoes, Mounted Latches for Tilt Windows. I can't find any part numbers on them and I don't want to make a mistake and order the wrong one. Pictures are included and I can take more if needed.

Thanks

Bob

5 user uploaded images

4 Replies

Paul from SWISCO

Nov 27, 2019 11:29 am

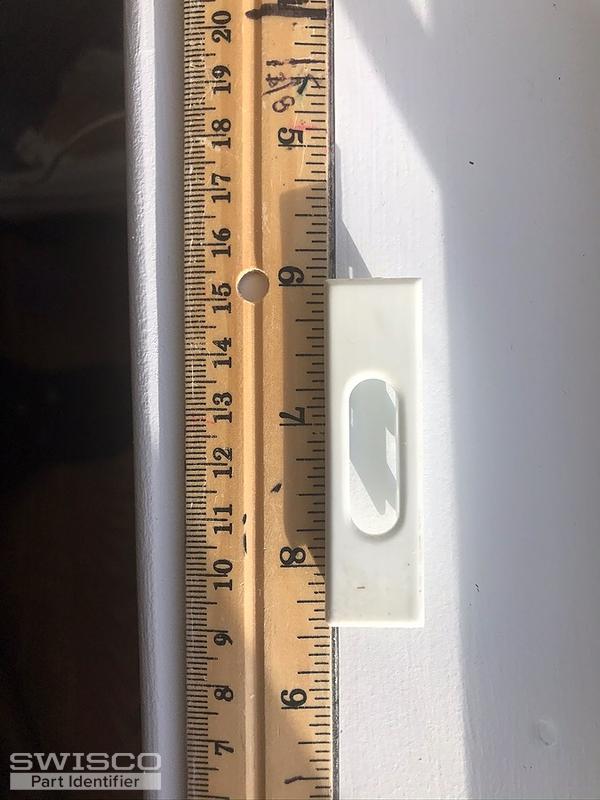

Hey, Bob. Based on your photos, we believe you have the S795-33 tilt balance that screws on at the top. We also believe you have a match for our 26-393B top tilt latches. Please compare the photos and information we show for each product to your hardware and let me know what you think.

Home Owner from New Oxford, Pa

Dec 9, 2019 10:24 am

Hi Paul
I have 1 question the tilt balance bar i have has numbers on it that is (32-3) I found.
Do i need the S795-33 or a S795-32 now.

Thanks
Bob

Paul from SWISCO

Dec 9, 2019 1:19 pm

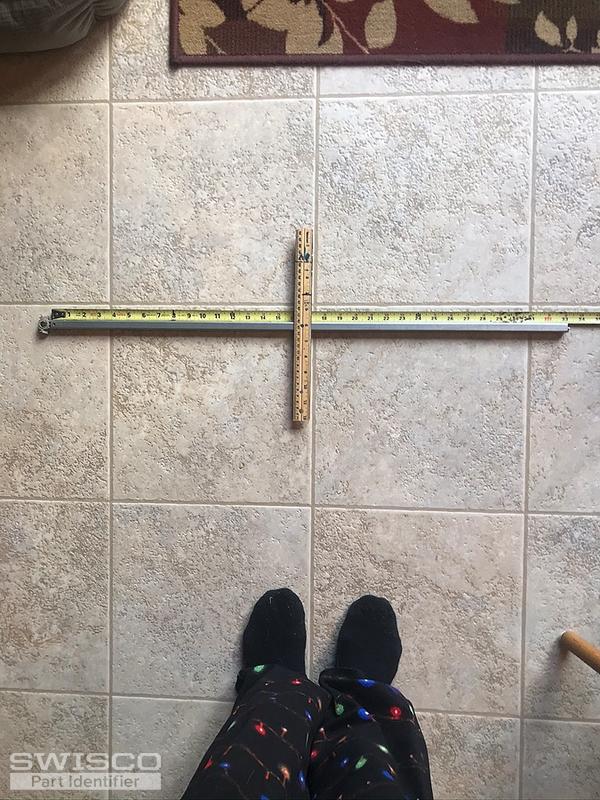

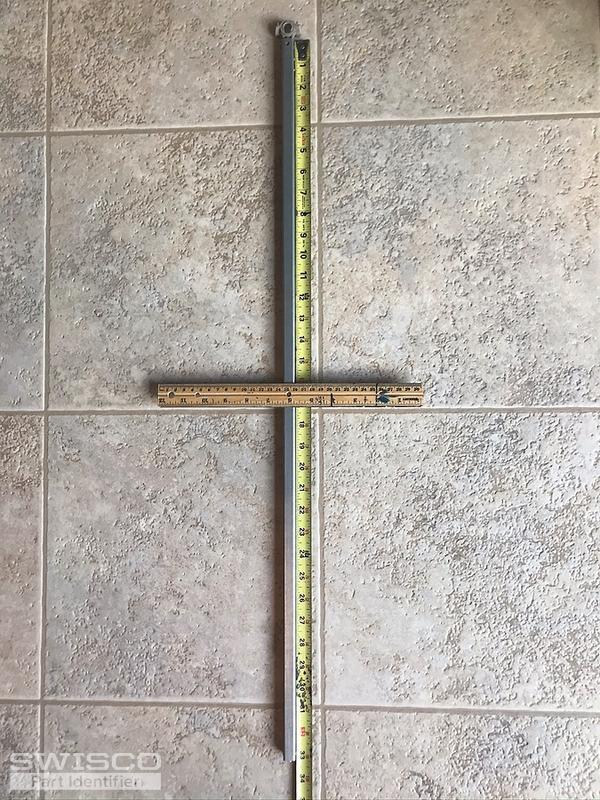

Looking at your second photo, where you have a tape measure held next to the metal channel, it looks like your balance is 33" long. A 32" balance would be too short.

Don't worry about what the stamp says, those can be a little goofy. Manufacturers change those all the time according to different rating systems. If your metal channel is 33" long, then that's that. Stamps may change over the years, but hard data doesn't lie.

When determining what stamp option you need for our balances, you might need the 33C (for sashes weighing 20 through 25 pounds). This is an educated guess; you may want to weigh your sash to be 100% sure.
