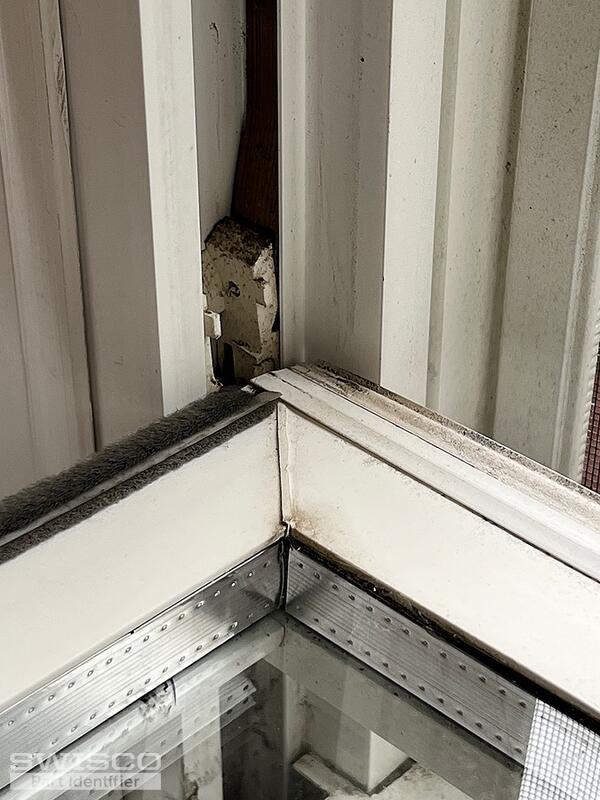

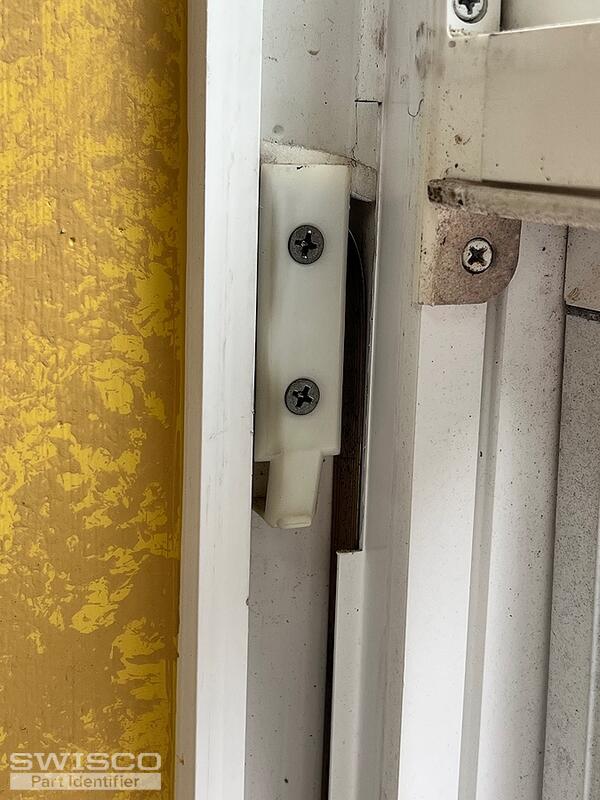

I'm trying to find the attached Window coil balance that will hold a combined 40lbs. The balance is 7/8"w and has two screws. I'm not sure but I think it has two coils. I'd like to get two to test (l and r) and if they're correct I'll need 8-10 more. I can't tell if there are any markings that would help me further identify these. Please let me know if you have them or if you can get them. Thanks.
Aaron
Hey there, thanks for writing in! The double support appears to be our 15-181 double support detent clip. This is typically used along with the 15-180 coil balance shoe. Look over the dimensions for the shoe below and compare them to an existing, undamaged shoe. See if these are the right fit for your window.
These pieces of hardware are compatible with 15-182 coil bushing and the Series 190 Coil balance spring. With that being said, regarding the window weight, are you referencing one sash when you say a combined 40lbs?
