Tilt Window Parts

Home Owner from Virginia Beach, VA

Jul 12, 2024 5:18 pm

I need weatherstripping and pivot bars. Unfortunately, I can't see the length of the pivot bars, as I can't get the screws off of the bottom of the sash. Many of the pivot bars are rusted, some completely through.

If you have any tips on removing the existing screws, I would be grateful.

Thanks!
Lee

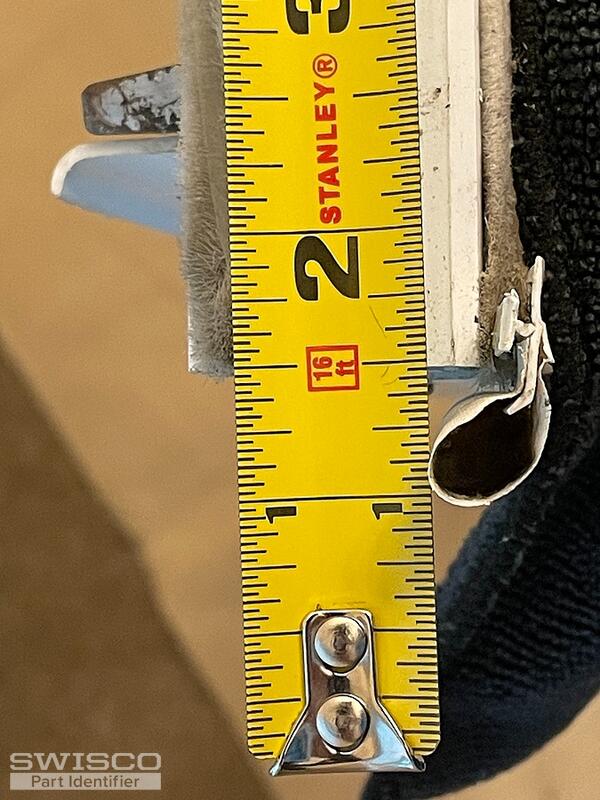

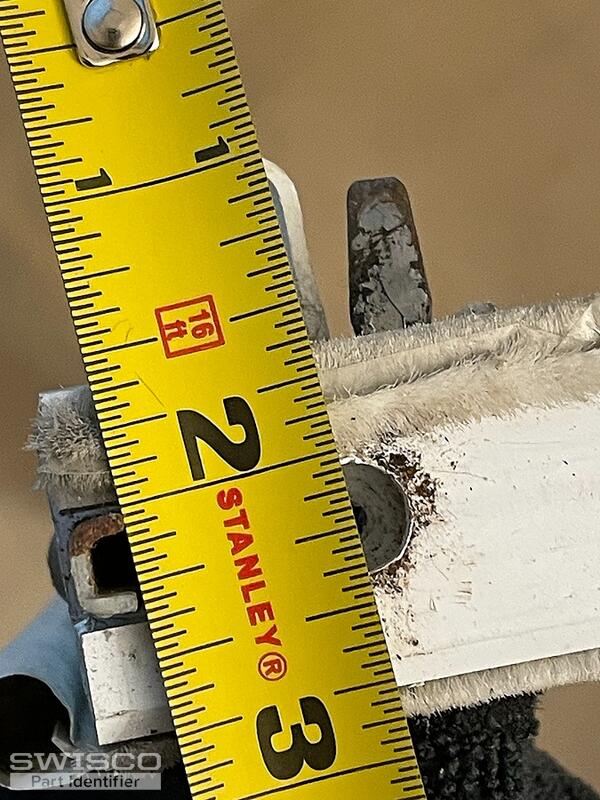

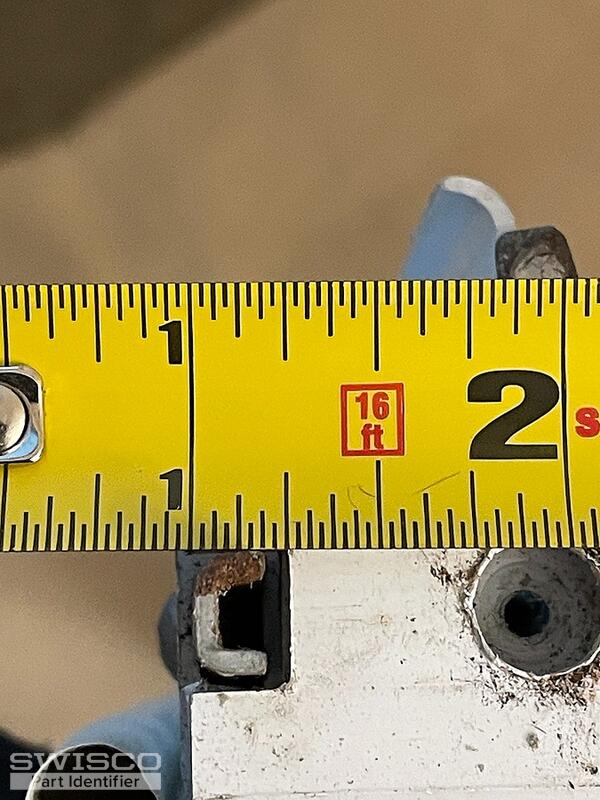

3 user uploaded images

1 Replies

+ Add a Comment

Casey from SWISCO

Jul 15, 2024 1:37 pm

EXPERT

Hello,

Your weatherstripping resembles the 58-171 or 58-183. Take a look and compare the dimensions to your seal.

Profile diagram of 58-171

Profile view of 58-183

We've also related a few pivot bars on this page for you to review but the backset of the installation holes is an important factor. Review the specifications shown on our product pages to determine if one of them could work for your application.
