Tilt Window Replacement Sash Pivot Bars

A home owner from Carrollton, GA says:
September 14, 2018

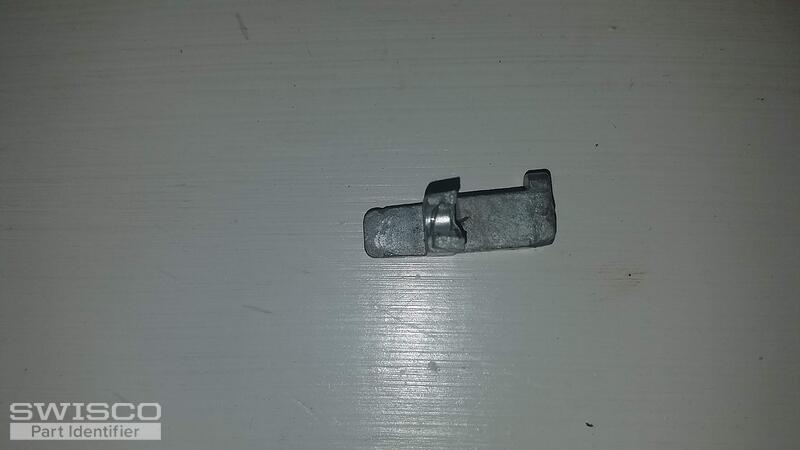

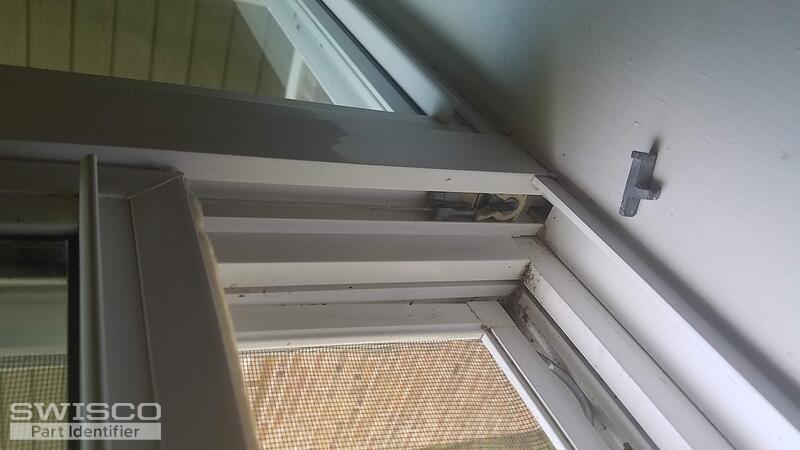

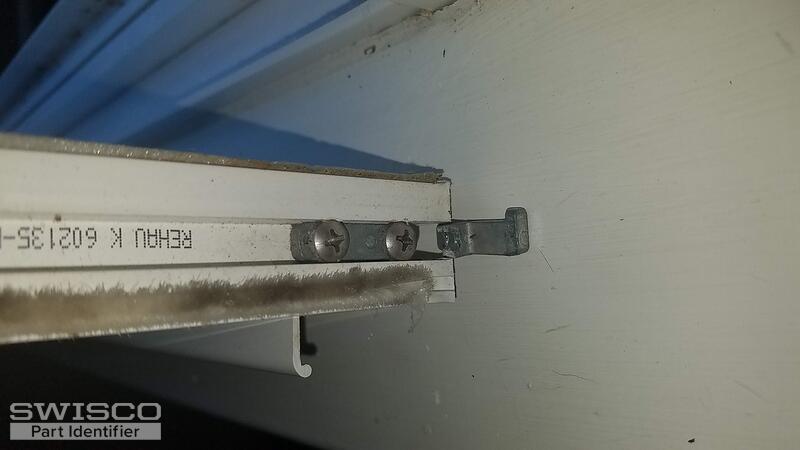

Hello. i could not find a similar sash pivot bar to replace in my window, can you please take a look at the pictures and advise. Thanks,

Juan

Profile picture of Paul
Paul from SWISCO responded:
September 20, 2018

Your pivot shoe looks like our 15-167, which commonly uses our 26-449 pivot bar. Compare our dimensions to yours to confirm if they match up. It does have a double horn to your single horn, but that shouldn't matter so much.
Pivot Lock Shoe
Pivot Lock Shoe
15-167
$2.57
Pivot Bar
Pivot Bar
26-449
$1.75
