Tilt Window Replacement Sash Pivot Bars and latch

Question

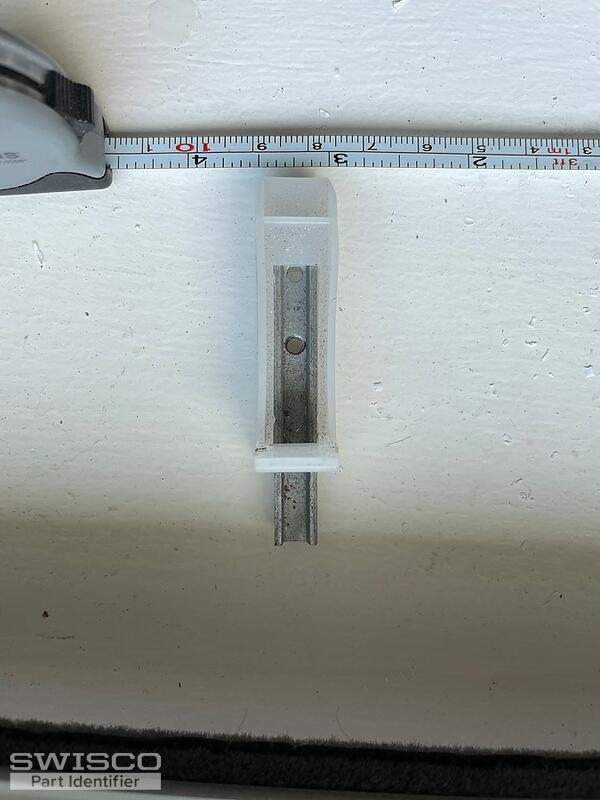

I am looking for a replacement to the attached part, on the bottom left side of the window.

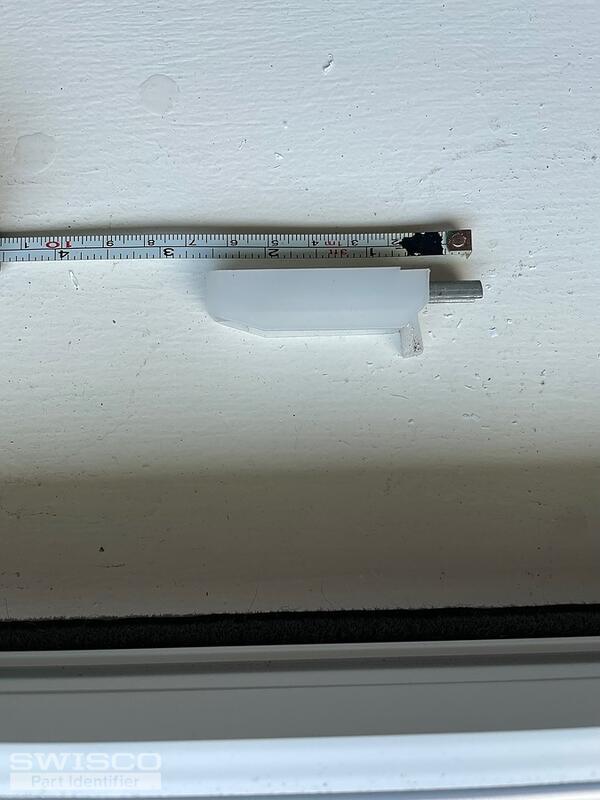

I also need a tilt latch 8590. (it looks like your part 26-408 is the same).

Thanks
Eldad

Jasmine · Accepted Answer

Hi Eldad,

Thanks for posting! Your pivot bar assembly can likely be replaced with our 26-382S Pivot Bar Case along with with the 26-083 Pivot Bar. To confirm that this will be a fit for your repairs, take a look over the dimensions and compare them.

Dimensions for 26-382S

Detail of 26-083

Based on the stamp information you've provide from your latch, it does appear that our 26-408 Tilt Latch Pair is the one most often associated with it. Although, to confirm that this will be a fit for your repairs, you will need to compare the dimensions, as well. I've included the diagrams below, for reference.

Alternate image for 26-408

Alternate view of 26-408
