Tilt Window spiral balance needed.

A home owner from Highland, New York says:
December 22, 2020

Hello ! We have these tilt out, double hung windows that were here when we bought our house, 20 years ago.

We cannot find any part numbers or even the name of the window manufacturer. We need one, spiral balance

and the top and bottom hardware that accompanies the spiral. This one as you see in the photos, does not have

a tube. It is 1/4" diameter. If there is a installation tool that we need to install the spiral, we will need to purchase

that as well. Can you identifiy the part from these photos and let us know the part numbers so that we can order ?

Please let us know if you need any additional info. You can call Ron. Thank you very much !

Thumbnail of the uploaded file named 20" - 1:2".JPG
Thumbnail of the uploaded file named Top.JPG
Thumbnail of the uploaded file named Spiral.JPG

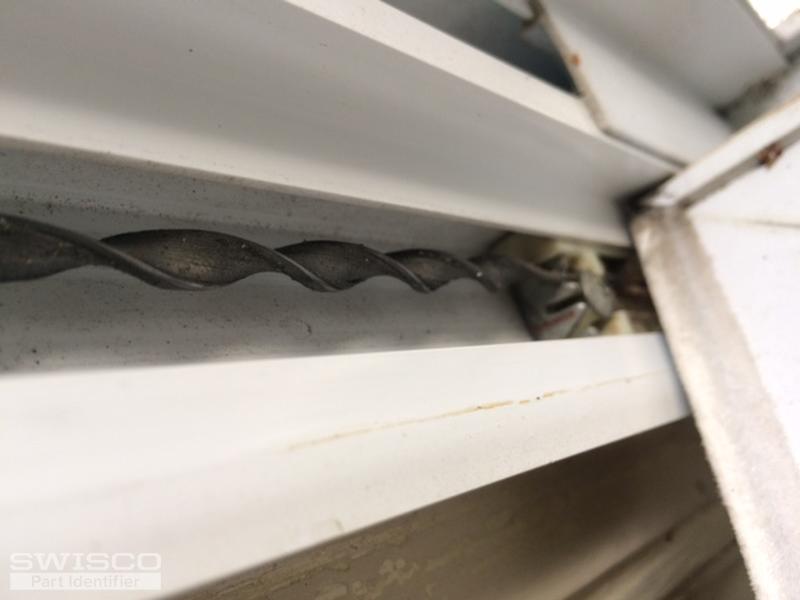

Thumbnail of the uploaded file named Bottom.JPG
Profile picture of Casey
Casey from SWISCO responded:
December 23, 2020

Hello,

Take a look at our 5/8" diameter S600 or 3/8" diameter S900 spiral balances, depending on the size of the balance tube that you can't access while it's installed. The charging tool for these balances would be our 75-006.
A home owner from Highland, New York says:
December 31, 2020
Casey,
Thank you so much for the information and the great video. It has been extremely
helpful as now we can order what we need ! -- Elise
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
How to replace a tilt window spiral balance.
How to replace a tilt window spiral balance.
VIDEO
WATCH >
How to adjust a spiral balance on a tilt window
How to adjust a spiral balance on a tilt window
GUIDE
READ >
