Tilt block and Tackle Balances.

A home owner from Oak Creek,Wi. 53154 says:

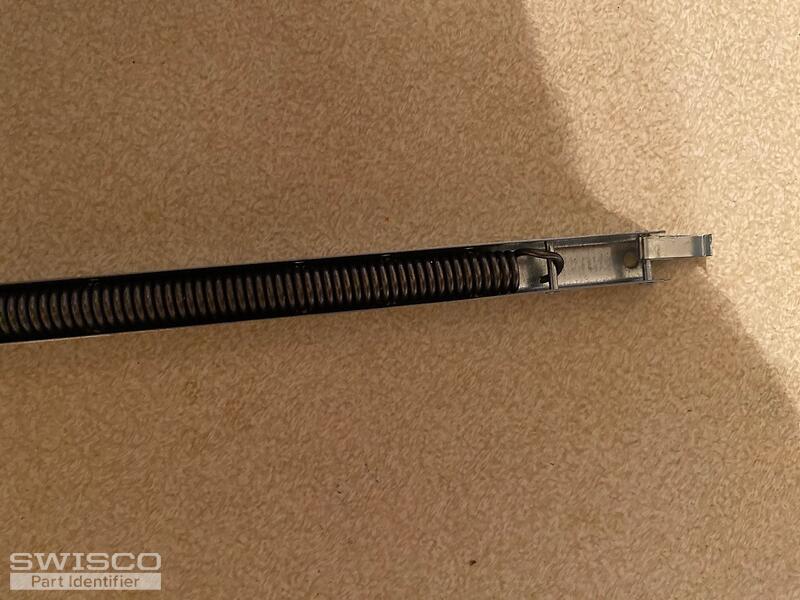

The tackle balance has a numbers on it. 24C (198 orB61)TK it is 24 inches long with a hook on the top spring side. The opposite side has a small metal piece that is tied on to a line and-connects to the tIlt block. I would need two tilt blocks and one tackle balance. Thank you.
Thumbnail of the uploaded file named 308D5D44-ABF6-4970-904E-F40385F14143.jpeg
Thumbnail of the uploaded file named CF81D39A-67C1-472C-8B56-6F278EA2C898.jpeg
Thumbnail of the uploaded file named 54FA81E3-6262-4771-AC7F-98450FBB91D4.jpeg
Thumbnail of the uploaded file named DD0B873D-8C13-4E7B-8D65-A75AB921F13C.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We can certainly supply your replacement balances but it will have to be a custom order to add a rivet to the top of our S770 channel balance. We just sent over an order link and price quote for you to review. Also, please note that the minimum order is two balances since it is important to replace the balances on both sides of the window so that there is an equal amount of support.

As for your pivot shoe, I would recommend removing yours from the window to compare to the specifications of the 15-135. If you need additional S-clips that attach the top of your balance to the window, see the 19-029 short or 19-030 long s-clip, depending on the size that you need. Thank you!
