Tilt keys

Handy Person from Connecticut

Nov 9, 2020 1:52 pm

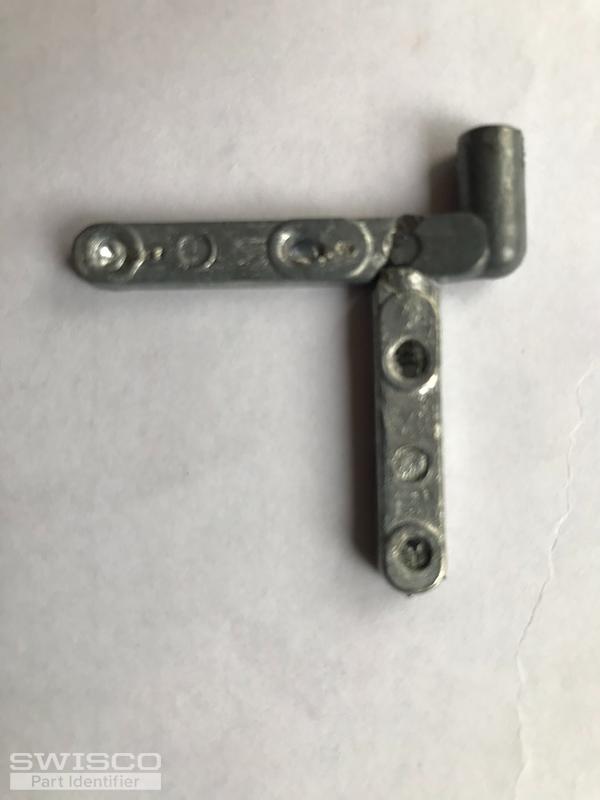

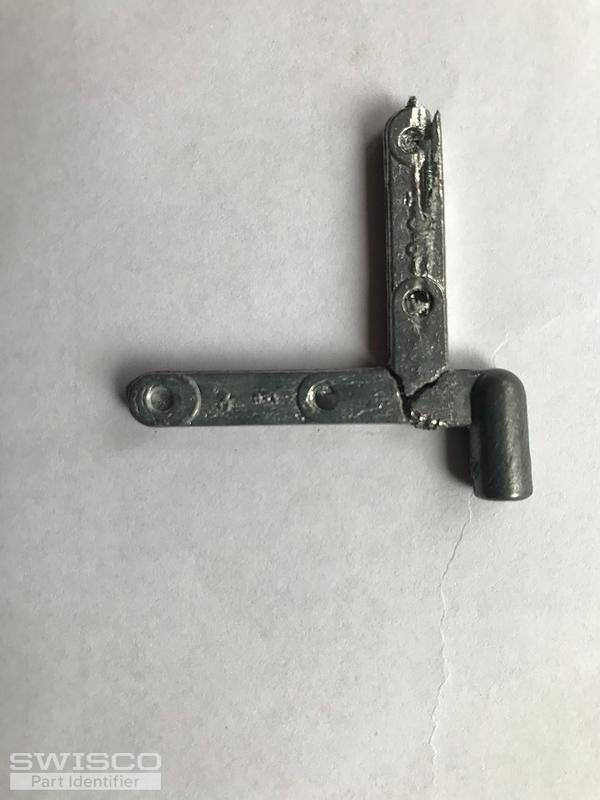

I had to drill out this tilt key to remove it, which is why it's in such bad shape.

Swisco corner keys 95-105/106 fit the screen frame, but I'm not sure which tilt key would match these. Your part no. 95-232 has a different shaped 'barrel' (there is a diagonal 'slice' on one side of the cylinder).

Please advise.

Thank you,

Rich

2 user uploaded images

3 Replies

+ Add a Comment

Bob from SWISCO

Nov 12, 2020 12:43 pm

EXPERT

Hey Rich. Can you give me the thickness of the screen that uses these keys? That will clue us in as to your best options. Thanks.

Handy Person from Connecticut

Nov 13, 2020 1:59 pm

Hi Bob,

The screen stock is 1/2" thick. The opening that the keys slide into is 3/16" wide by 1/4" high (which are the dimensions of the 95-105 and 95-106 corner keys that fit perfectly).

Bob from SWISCO

Nov 16, 2020 11:10 am

EXPERT

Thanks for getting back to me, Rich. To be honest, these corners remind me more of our 95-233, or perhaps our 95-008 and 95-009 Pivots. Compare the dimensions and see if you think one of these might be what you're looking for.

+ Add a Comment
