Tilt latch

Quick Learner from jackson nj 08527
Sep 18, 2023 6:21 pm

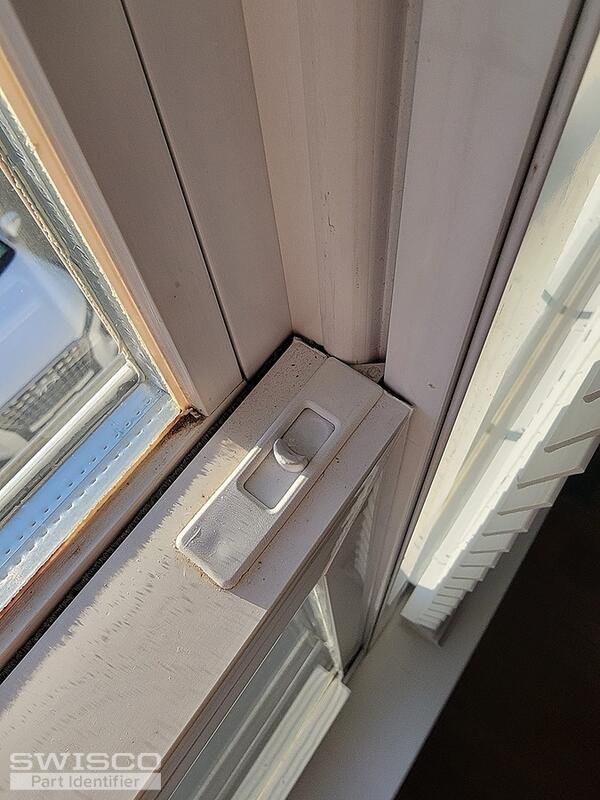

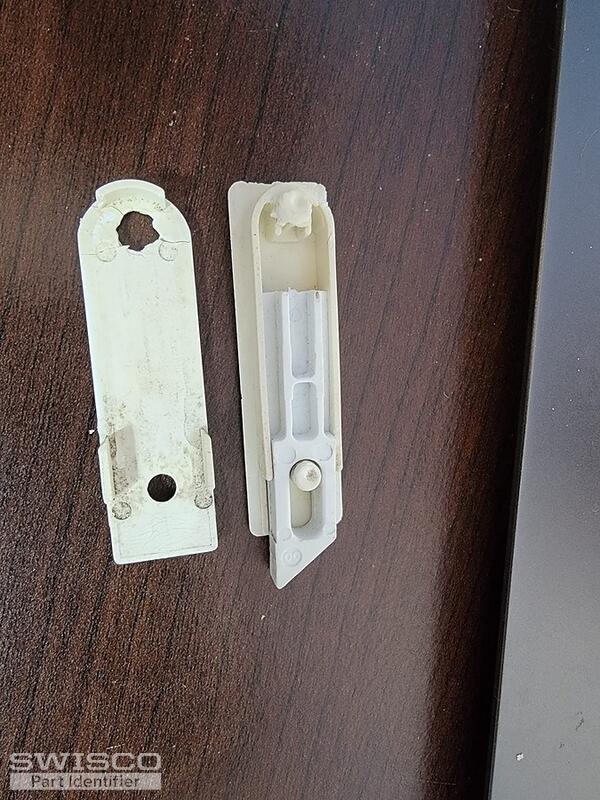

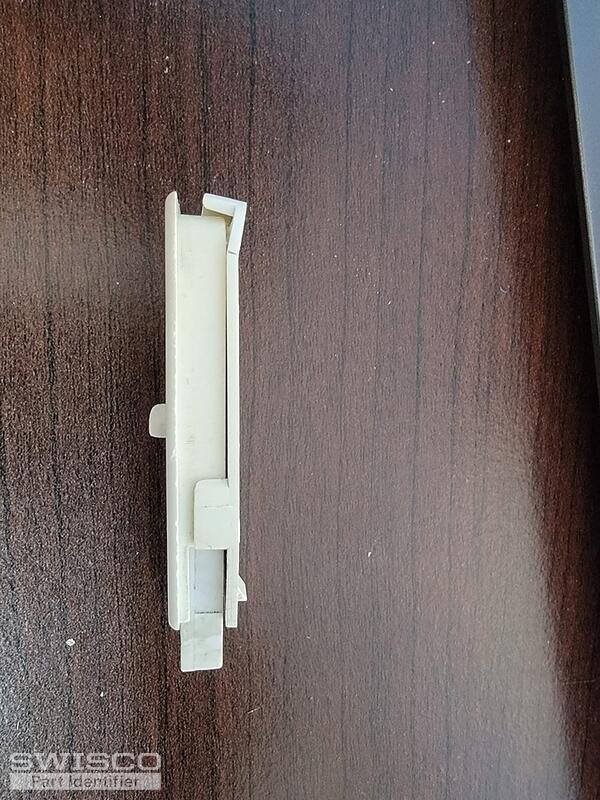

Im not so sure my model number for the tilt latches i hope you can help me identify it.
I also have a few other parts that i will need to replace. i will send the attachments in another email
WhatsApp Image 2023-09-18 at 18.11.36 WhatsApp Image 2023-09-18 at 18.11.35 WhatsApp Image 2023-09-18 at 18.11.34 WhatsApp Image 2023-09-18 at 18.11.33 WhatsApp Image 2023-09-18 at 18.11.32
5 user uploaded images
3 Replies
Quick Learner from jackson nj 08527
Sep 18, 2023 6:39 pm

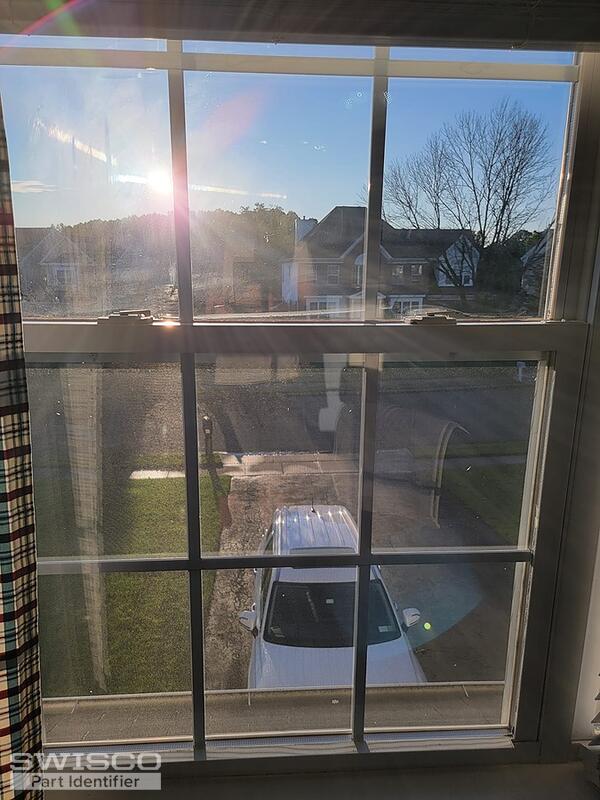

I also attached a picture of the entire window incase itll help you identify window models.

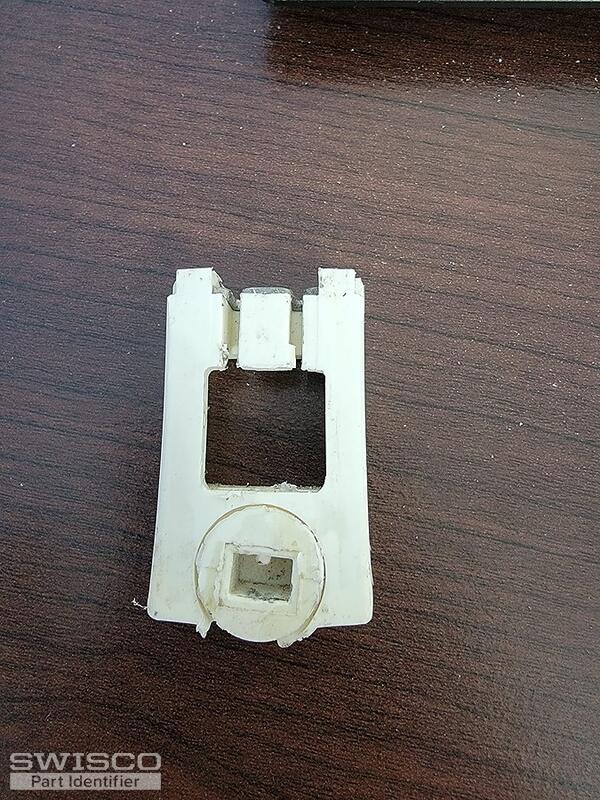

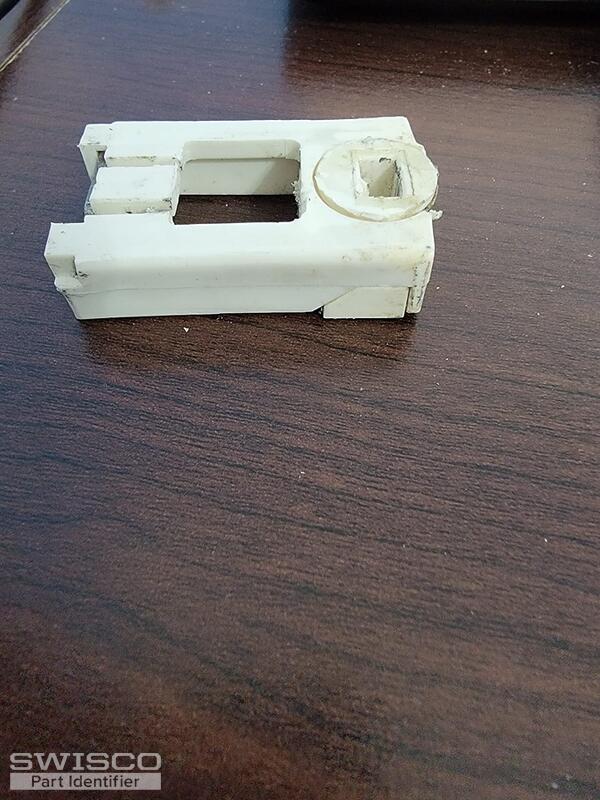

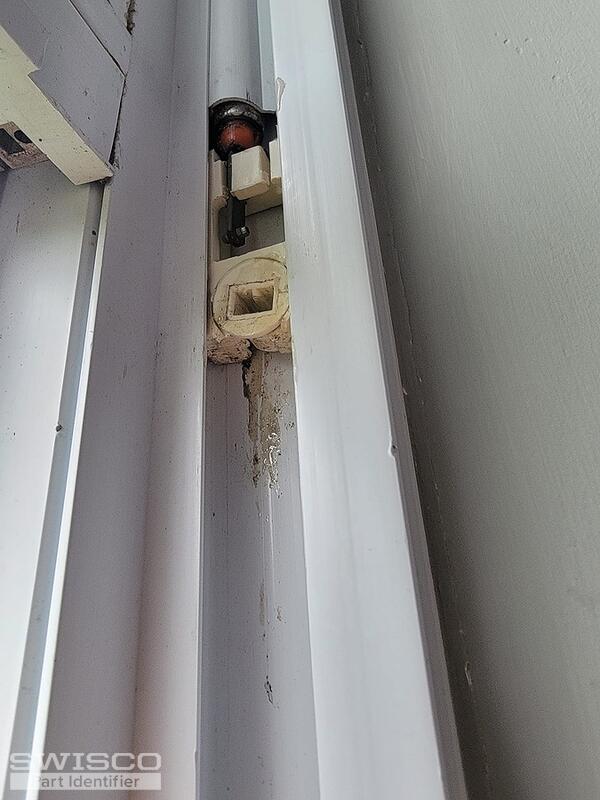

In addition, I need to replace my pivot shoe as shown in one of the images. I actually tried to remove the damaged pivot shoe but wasnt succesful. it doesnt have an openings to slide out the pivot shoes.

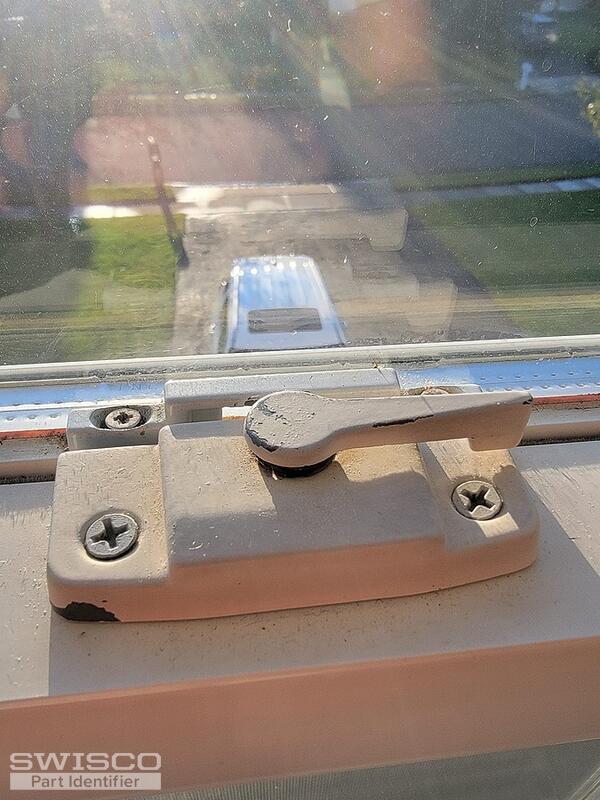

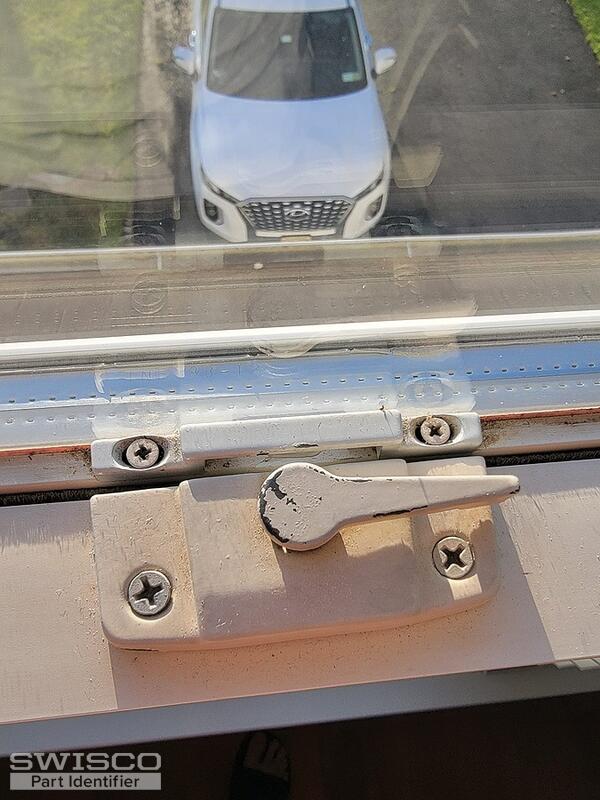

One last thing. If you can identify the model window locks i also attached a picture of it.

Looking forward

WhatsApp Image 2023-09-18 at 18.17.43 WhatsApp Image 2023-09-18 at 18.17.44 WhatsApp Image 2023-09-18 at 18.17.45 WhatsApp Image 2023-09-18 at 18.17.46 WhatsApp Image 2023-09-18 at 18.17.47
5 user uploaded images
Quick Learner from jackson nj 08527
Sep 19, 2023 1:42 pm
WhatsApp Image 2023-09-19 at 13.41.10 WhatsApp Image 2023-09-19 at 13.41.11 WhatsApp Image 2023-09-19 at 13.41.12 WhatsApp Image 2023-09-19 at 13.41.13
4 user uploaded images
Lauren
Lauren from SWISCO
Sep 20, 2023 3:24 pm
SWISCO
EXPERT

Hello, thank you for posting,

Your tilt latch resembles either the 26-393 or 26-393A pair. Please review the overall style and dimensions of both to confirm the best fit!

Also review the 90-278 or 90-274 locks. Compare the dimensions to confirm if one of these line up to your original.

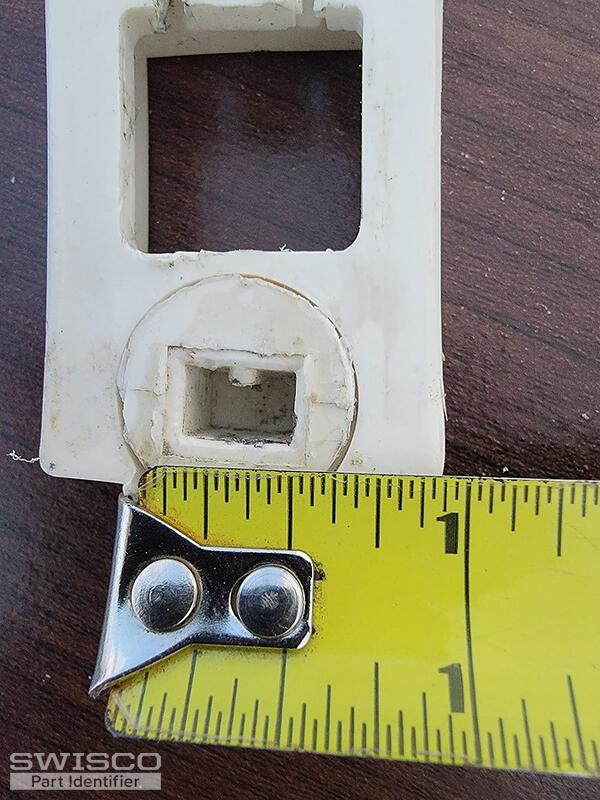

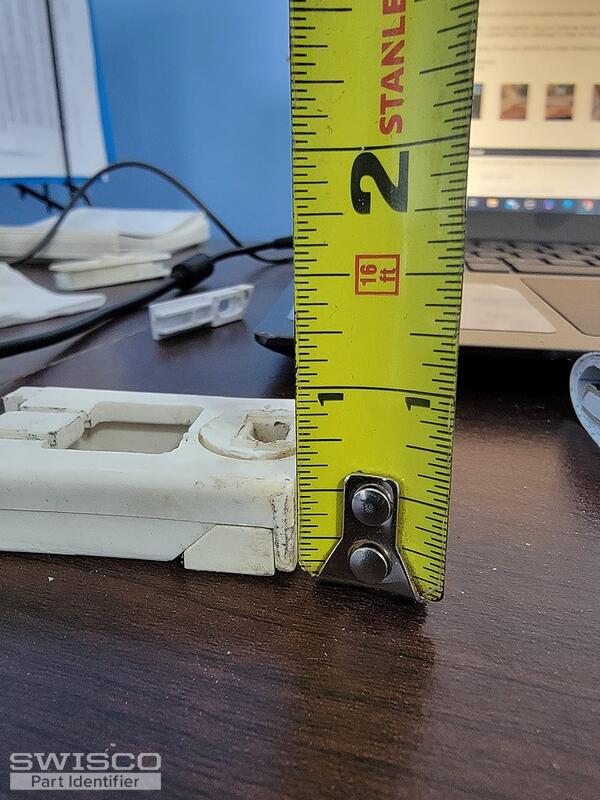

For the pivot shoe, are you able to provide written out dimensions of the width and thickness? From there we can compare to our selection to determine the best option.
