Tilt latch installation

Quick Learner from USA

Aug 4, 2014 11:22 am

I want to buy top tilt latch 26-317. From looking at my window, I can't figure out how I would replace the latch. Is there a place where I can see some instructions on how to do this? Thanks!

5 Replies

Casey from SWISCO

Aug 4, 2014 2:04 pm

I think this part just snaps in. Check out the image below to get an idea of what it may look like.

User submitted photos of window hardware.

Quick Learner

Aug 6, 2014 10:10 pm

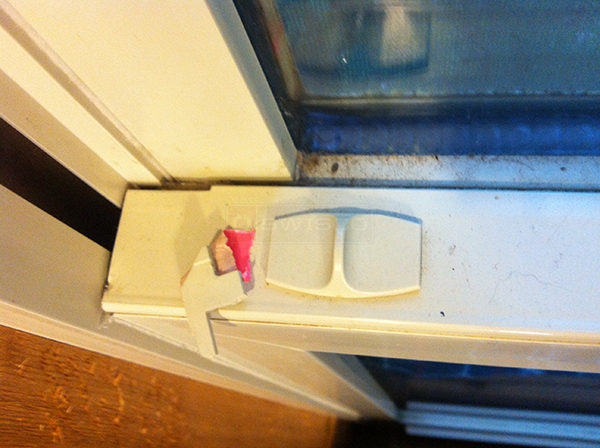

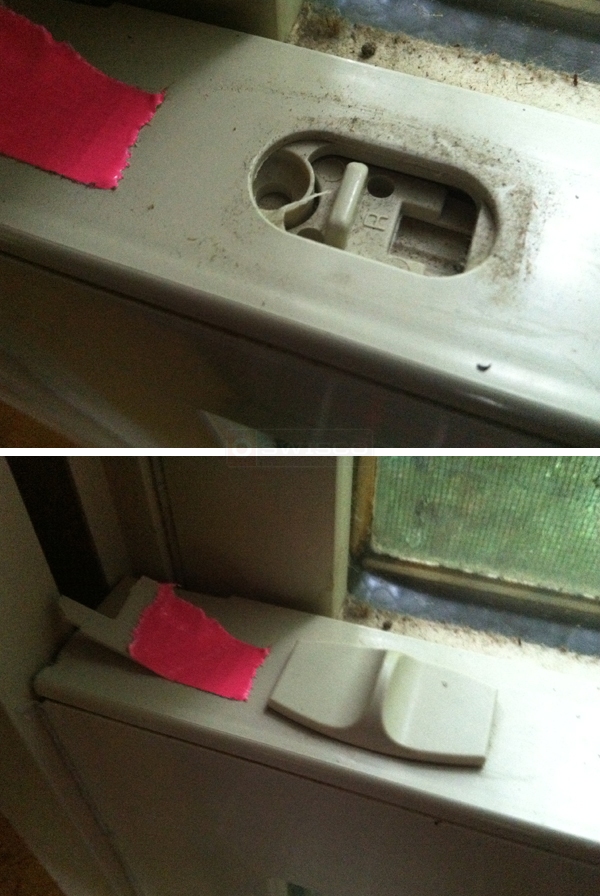

Our latch is more recessed. Please see the pictures I have attached. Maybe I need a different latch? Please let me know what you think. Thank you.

Quick Learner

Aug 8, 2014 1:22 pm

Please let me know if I need replacement latch 26-317, and any directions on how to replace this latch that is recessed in the window.

Tom from SWISCO

Aug 8, 2014 1:47 pm

I'm not sure if we can help you. I don't think our 26-317 is a match, You may want to substitute with a surface-mount tilt latch. Watch the video below to see how.
