Quick Learner from Minnesota

Jul 25, 2023 7:30 pm

Hello - I am looking to replace both tilt latches on my window. Not sure of the window brand - can't find any identifying information but previous owner stated they had purchased Anderson windows when we bought the house.

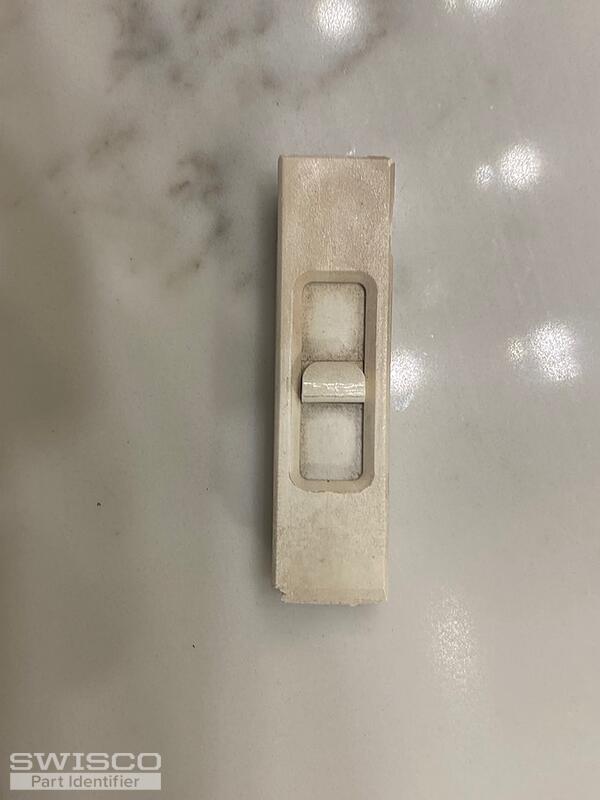

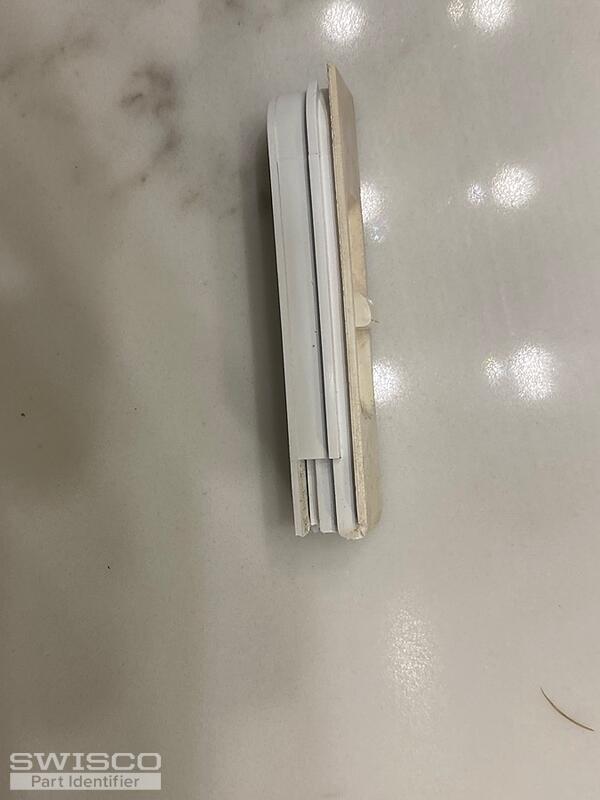

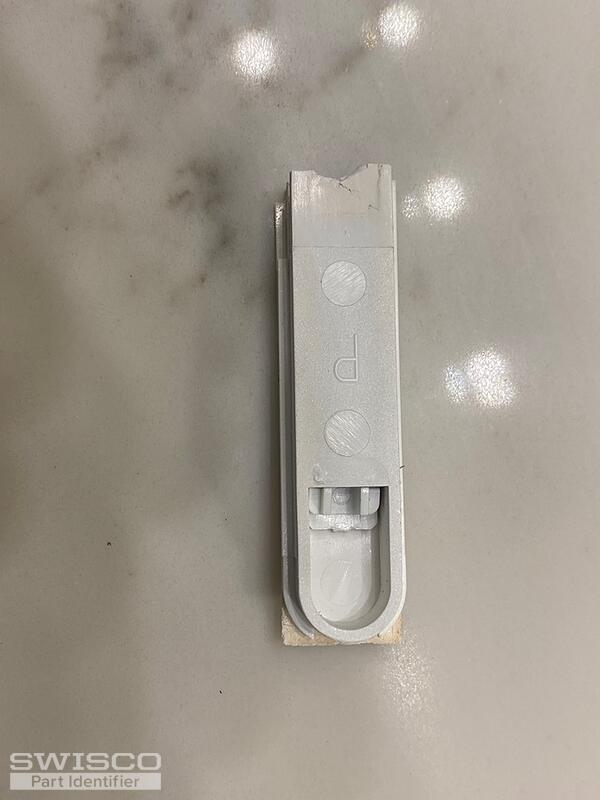

Attached are pictures. The dimensions are 2 5/8 x 3x4 x 1/2.

Thanks!

Jason

3 user uploaded images

6 Replies

Casey from SWISCO

Jul 27, 2023 12:10 pm

Hello,

I would recommend starting by comparing the specifications of the 26-243 and 26-244 to an undamaged tilt latch. We'll include the dimensions from our product page below. Take a look and thanks for posting!

Alternate view of 26-244

Profile view of 26-244

Quick Learner from Minnesota

Jul 27, 2023 8:06 pm

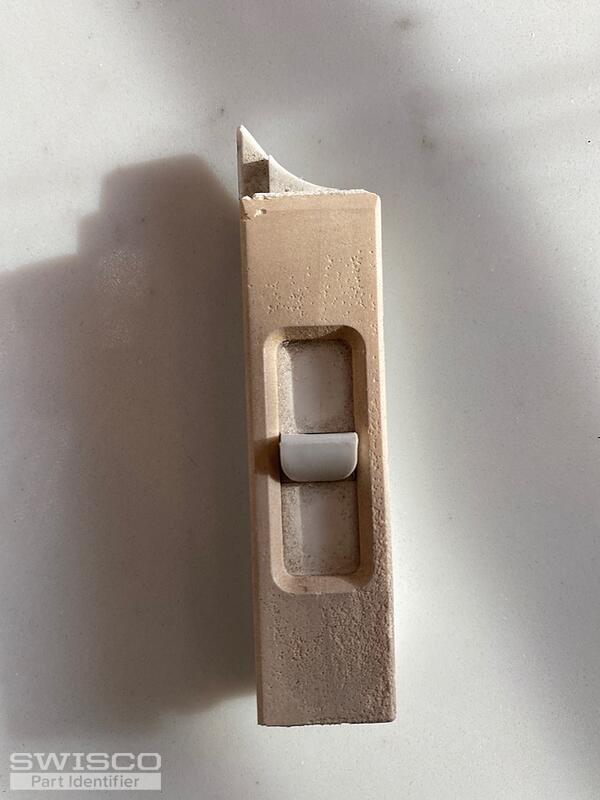

Wonderful - thanks! The dimensions look right but, in looking at the undamaged latch, I noticed the latch portion is curved (picture attaches) for the windows I have but the replacement you have has a straight edge for the latch. Is that a problem or will the replacements you have still work?

Thanks,

Jason

1 user uploaded image

Casey from SWISCO

Jul 28, 2023 8:49 am

Unfortunately, we do not carry tilt latches with a curved tooth like yours. The curve is often there to accommodate the spiral balance tube that runs the length of the window jamb. We've had some customers report that this was a problem when using the 26-243 and 26-244, while others have said it was fine. In either case, these would be our best replacement options at this time. If you deice to give them a try and run into any problems, our return policy can be found here.

Quick Learner from Minnesota

Aug 3, 2023 2:27 pm

I just wanted to circle back to say thank you for the help. I did end up buying the pair you suggested and they work great.

Thanks again,

Jason

Casey from SWISCO

Aug 3, 2023 3:34 pm

That's great to hear! We appreciate your business and please let us know if you need anything else.
