Tilt latches

A home owner from Florida says:

These are handed (R/L) and are about the same dimensions as your Corner-Latches-For-Tilt-Windows/26-261.

Note the offset of the attachment screw hole in the first photo.

Thanks in Advance,

Sean

Thumbnail of the uploaded file named PXL_20211109_195126886.jpg
Thumbnail of the uploaded file named PXL_20211109_195142053.jpg
Thumbnail of the uploaded file named PXL_20211109_195154499.jpg

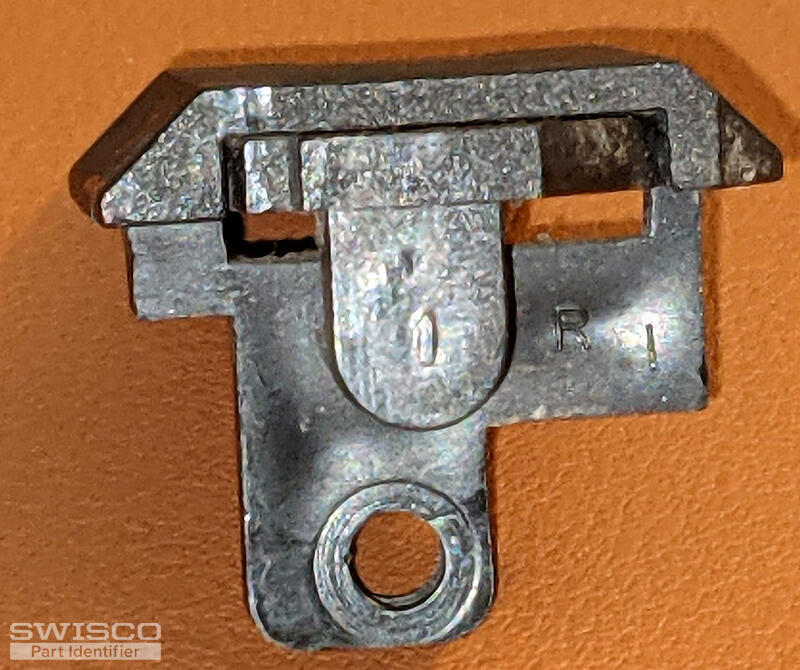

Thumbnail of the uploaded file named PXL_20211109_195203628.jpg
Profile picture of Paul
Paul from SWISCO responded:

Many thanks for your post. The manufacturer of these top tilt latches have discontinued them and offer no replacement. We suggest removing the old tilt latch, reinstalling the top side corner screw to keep the sash together and then installing the top mounted tilt latches, the 26-193 and 26-194, on top with a #6 pan head screw like 33-089. Just be very careful not to drill into the glass.
