Tilt mechanisms

Home Owner from Norwalk CT

Aug 16, 2018 6:17 pm

Farley replacement windows
Size H704.5 is what the tag reads

The tile mechanisms are broken on nearly all the windows so I need help ordering new ones. Thanks!

2 user uploaded images

4 Replies

Tom from SWISCO

Aug 22, 2018 1:59 pm

Thanks for posting. I'm not sure what a tile mechanism is. Could you be referring to the tilt latch in your second photo? If so, can you remove an undamaged version from your window and show us a picture of it by itself? That would be a huge help. Thank you!

Home Owner from Norwalk CT

Apr 18, 2020 1:02 pm

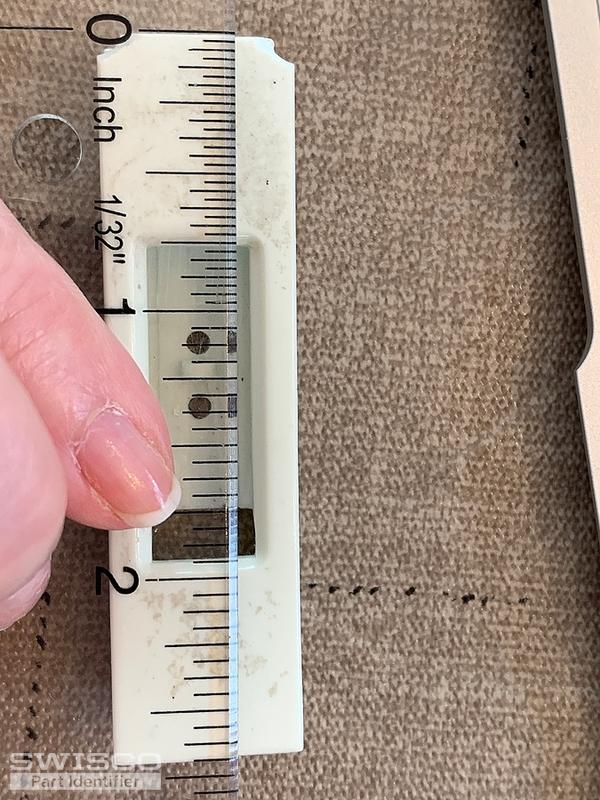

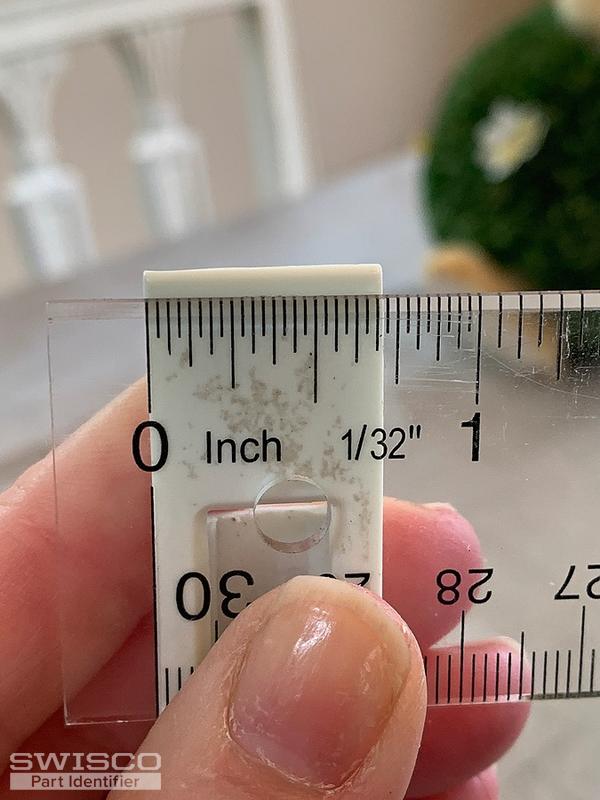

Hi Customer care team - I need to order replacement tilt mechanisms for all my windows. I measured from top and it shows length as 2 11/16", width as 11/16"

3 user uploaded images

Tom from SWISCO

Apr 21, 2020 11:21 am

Hello! This tilt latch looks like our 26-243 and 26-244, which is used by many Farley vinyl windows. Look these parts over and see what you think.
