Tilt out single hung.

Handy Person from Bloomington IL

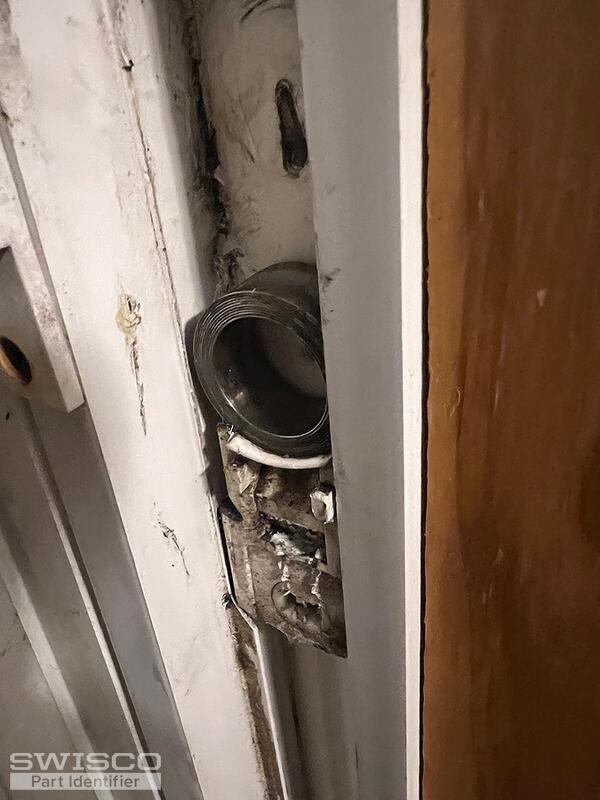

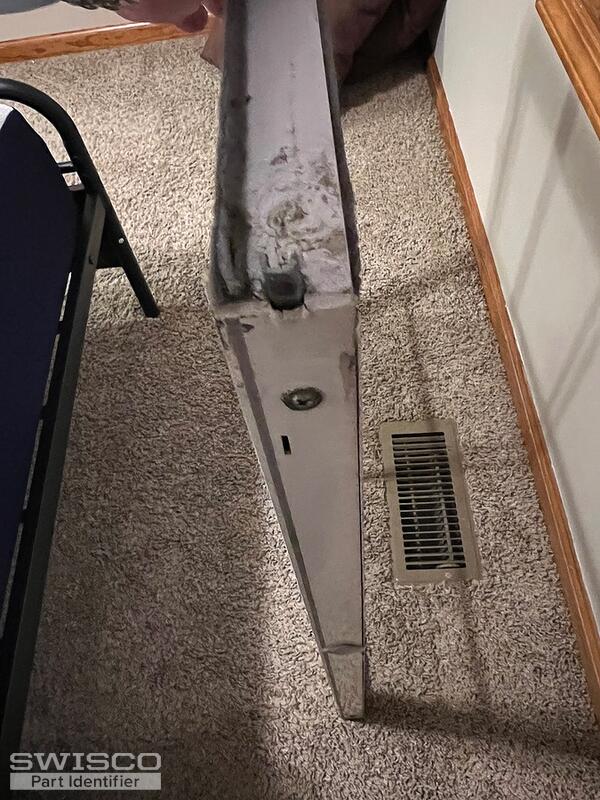

Hello, I have a lower pane that measures 35.5 wide and 28 high.  The coil assembly is broken or missing Can you tell me which shoe and coil I need?
5 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

It looks like you have an older version of the 15-180. This pivot shoe is designed to use the S190 coil springs (sold separately). You'll have to check the band of the old springs for a stamped weight code. Take a look at the specifications and let us know if you have any questions.

Alternate image for 15-180
Alternate image for 15-180
