Tilt out window coil spring and hardware

A quick learner from Merion, PA says:
April 20, 2019
I would like the pivot shoe, spring, coil support barrel and cap all for both sides. my spring has a # 7 on it. ? 7 lbs. Looks like part S150
the pivot shoe is 1/2 inch thick, 2.25 inc long and 1.25 wide
the coil support barrel is the part #15-145 I think ( 1/2 inch inside dia and 1/2 inch wide )
the cap is 15-147

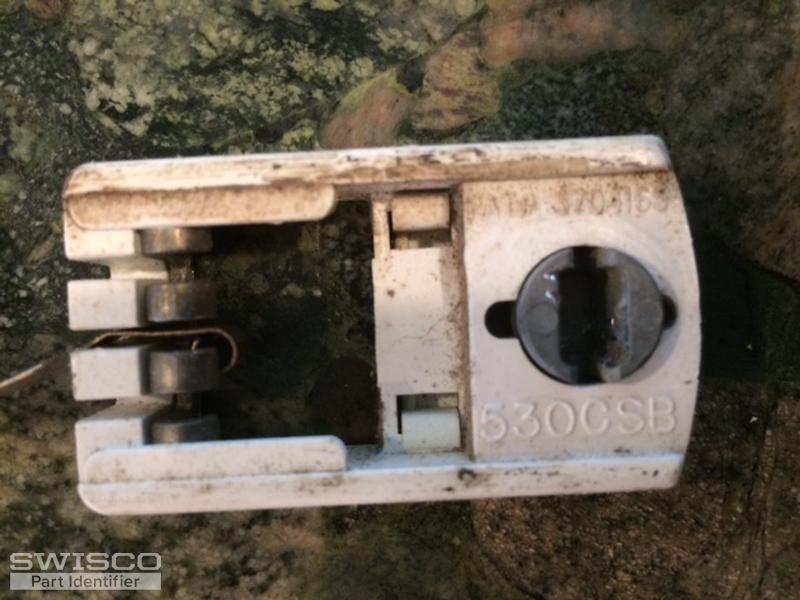

I do not know which pivot shoe I need the # on the shoe is 530CSB-it is a locking shoe.
thanks for your help
Thumbnail of the uploaded file named IMG_0843.JPG
Thumbnail of the uploaded file named IMG_0844.JPG
Thumbnail of the uploaded file named IMG_0845.JPG
Thumbnail of the uploaded file named IMG_0846.JPG
Profile picture of Bob
Bob from SWISCO responded:
April 22, 2019

Thanks for posting. Your Pivot Shoe looks like it might be our 15-219. Confirm that your dimensions match. If your Coil Spring has a #7 stamp, then I agree, it looks like a S150-7. Yes, I agree: the support looks like our 15-145 Coil barrel and 15-147 Bushing cap. Take a look and see what you think.
Pivot Shoe
Pivot Shoe
15-219
$3.47
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
