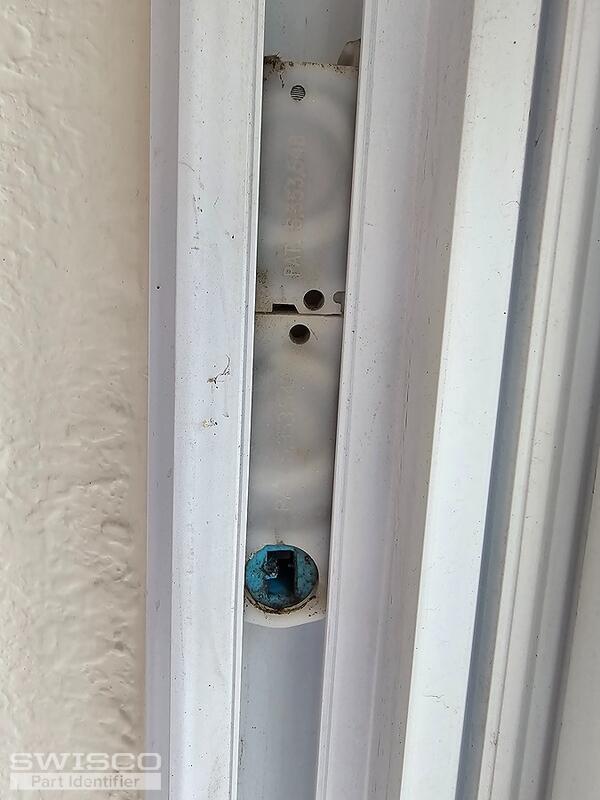

2 coil springs in each side. Need left and right side for one window. Double pane sash approximately 30 inches wide by 24 inches high. I did not measure, but that should be close if that helps with weight determination.
There is no cutout in the spring channel - assuming I will have to cut that.
I also need slide lock tabs but will send photos in a separate post as I reached maximum photo ability
Tilt out window parts
Contractor from Colorado springs, CO
May 21, 2024 6:21 pm
5 user uploaded images
2 Replies
Emily from SWISCO
May 24, 2024 2:27 pm
Hello!
The 15-087 pivot shoe and 15-086 tandem housing come to mind. The compatible springs are the Series 180; I recommend checking the band of the spring for a stamped number.
You also assumed correctly. You must make a cutout in the window track to remove your old hardware.
I'll be here if you have any questions!
