Tilt sash parts

A handy person from Wrentham, MA says:
November 11, 2021

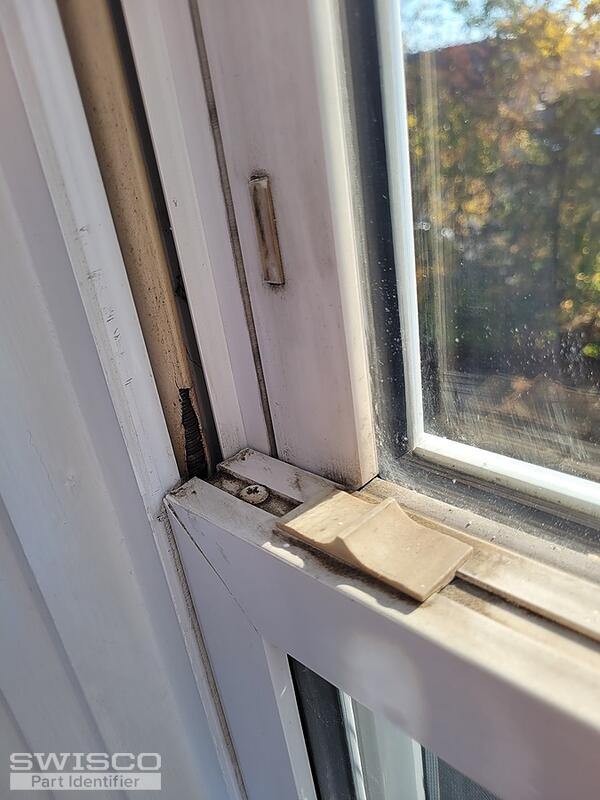

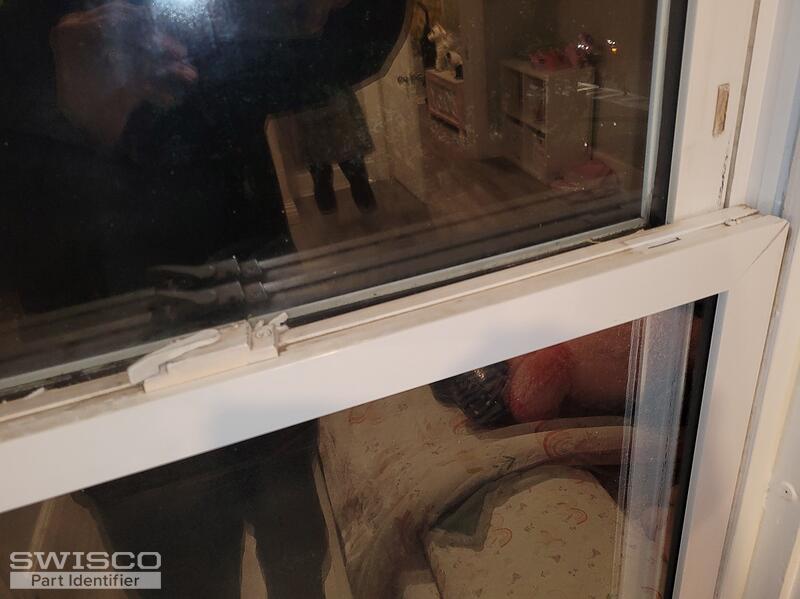

Need to replace the window lock mechanism, the slider mechanism to release the sash to allow tilting, and the springs.
Thumbnail of the uploaded file named 20211109_135718.jpg
Thumbnail of the uploaded file named 20211029_191408.jpg
Thumbnail of the uploaded file named 20211029_191211.jpg
Thumbnail of the uploaded file named 20211029_185908.jpg
Thumbnail of the uploaded file named 20211029_185944.jpg
Profile picture of Emily
Emily from SWISCO responded:
November 15, 2021

Hi there!

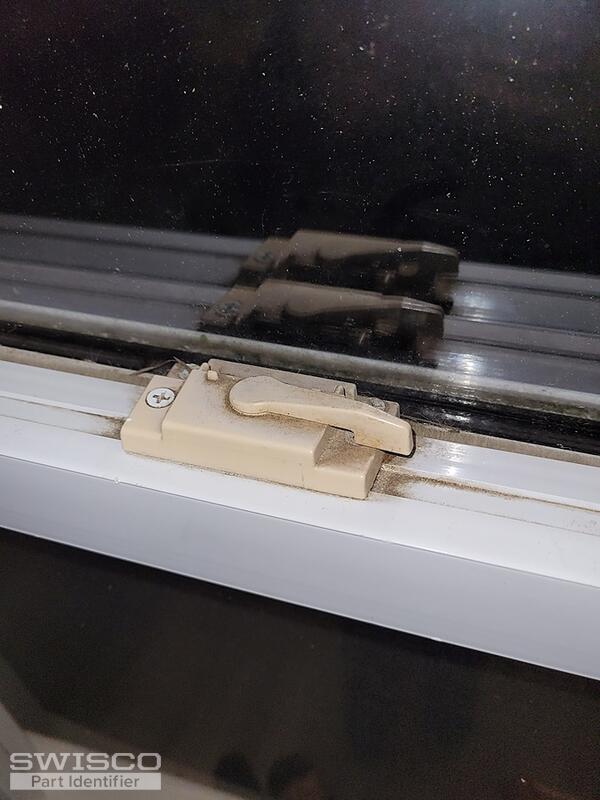

We'd be happy to help but we'll need more information before we get started. Regarding your sash lock, can you write out the distance between the two installation holes, measured from center-to-center?

It's tough to say what tilt latch you need while it's still installed. I'm reminded of something like our 26-334 but I'm not sure if that's what you have. Remove your hardware from the window and compare our dimensions to yours to see if this matches what you need.

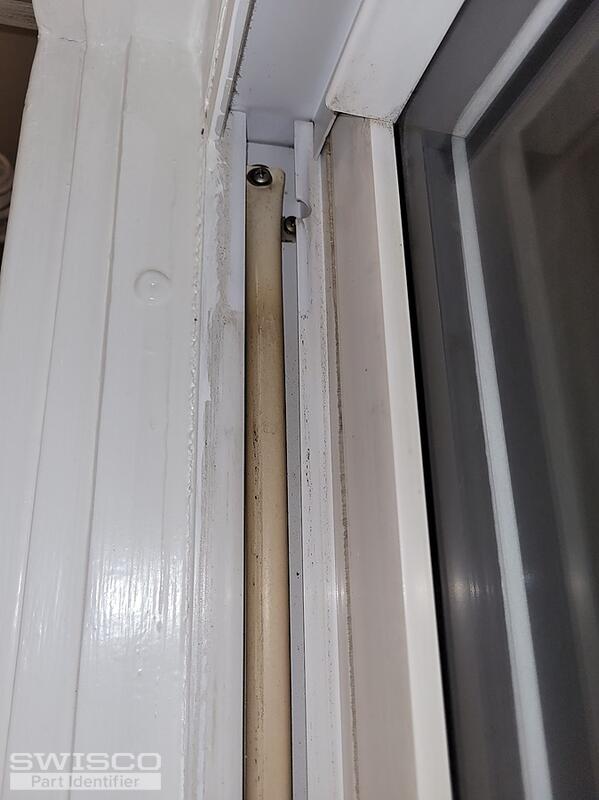

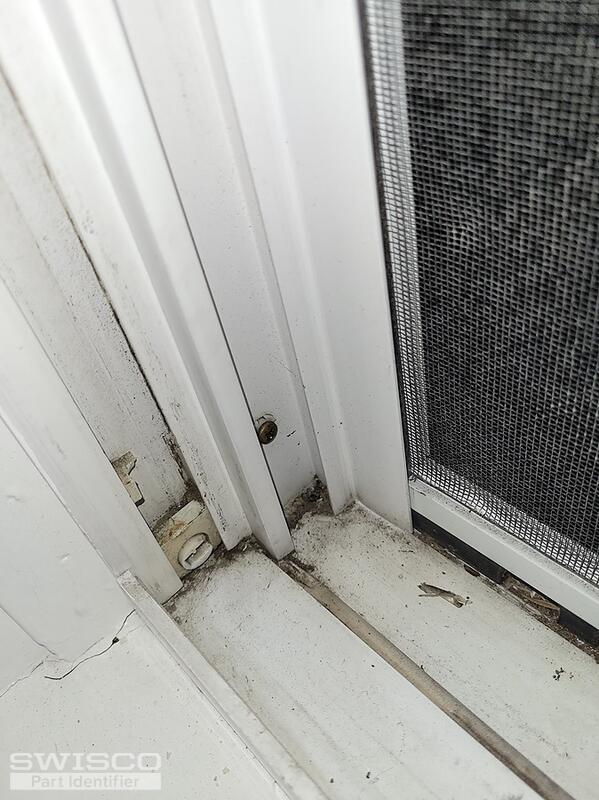

As for the spiral balance and pivot shoe, can you remove them from the window and show us? We'll need to know the pivot shoe's thickness and width along with a picture of the entire spiral balance removed from the window, including the length and diameter of the tube that the spiral extends from. The video below will go over exactly what we'll need.
