Tilt sash top latch that runs in narrow groove between sash and channel balance

Home Owner from Florida
Feb 3, 2025 7:19 pm

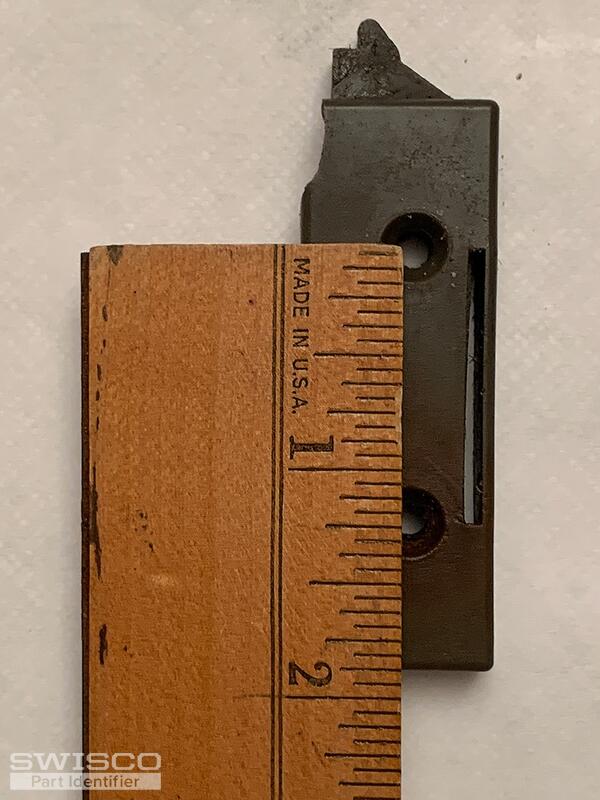

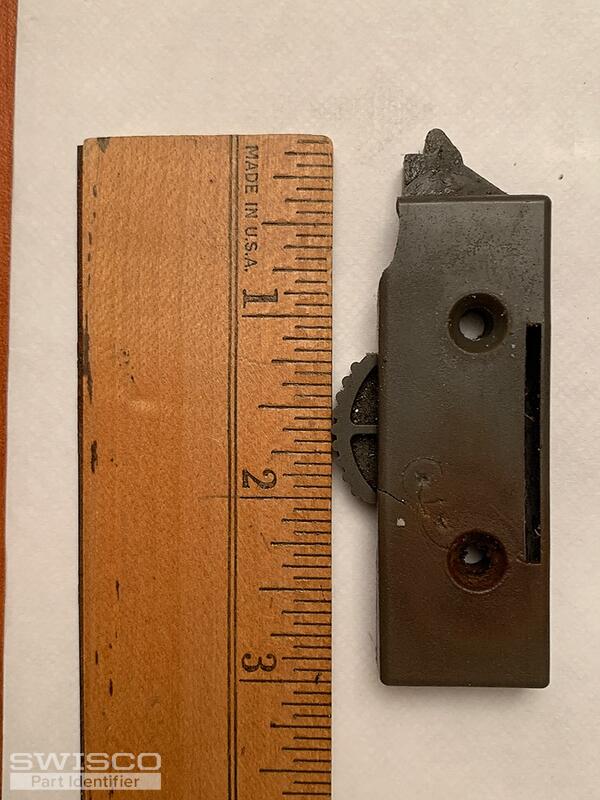

Tilt sash top latch that runs in narrow groove between sash and channel balance. Old original shown in one photo. I bought replacements from you shown in 4 photos that didn't have the sash locks. But don't have the part number. Trying to find what fits, needs narrow point to fit in the sash and avoid the channel balance.
5 user uploaded images
2 Replies

Jasmine from SWISCO
Yesterday 1:18 pm


The tilt latch in your first photo is the 26-431P Combo tilt Latch Sash Lock Device Pair. These are only available in white.
The latches, purchased previously, appear to be the 26-394 Tilt Latch Assembly Pair. These are available in bronze but the compatible secondary/night latch is no longer available.
Take a look over each of their dimensions and compare them to confirm which of these is the best fit for the sash.

Dimensions for 26-431p

Dimensions for 26-394
