Tilt window assistance

A quick learner from Columbus ohio says:
February 21, 2022

Hi there!

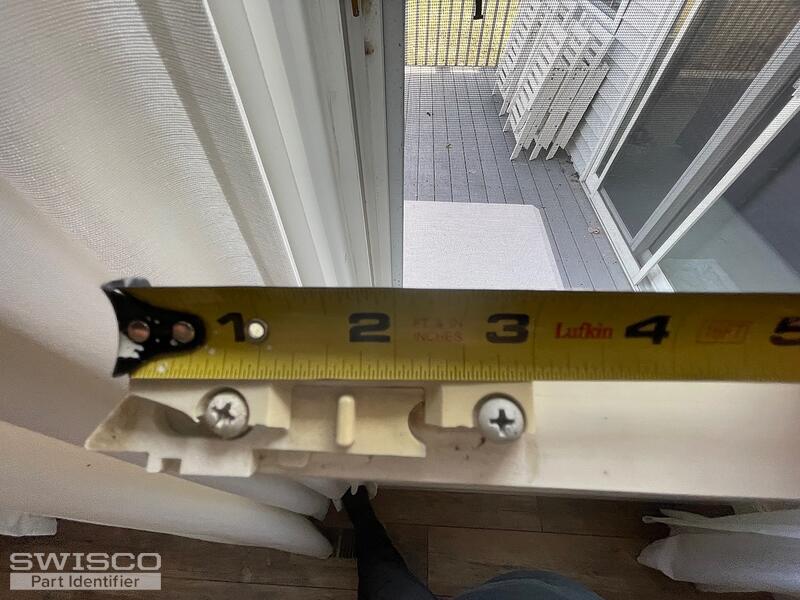

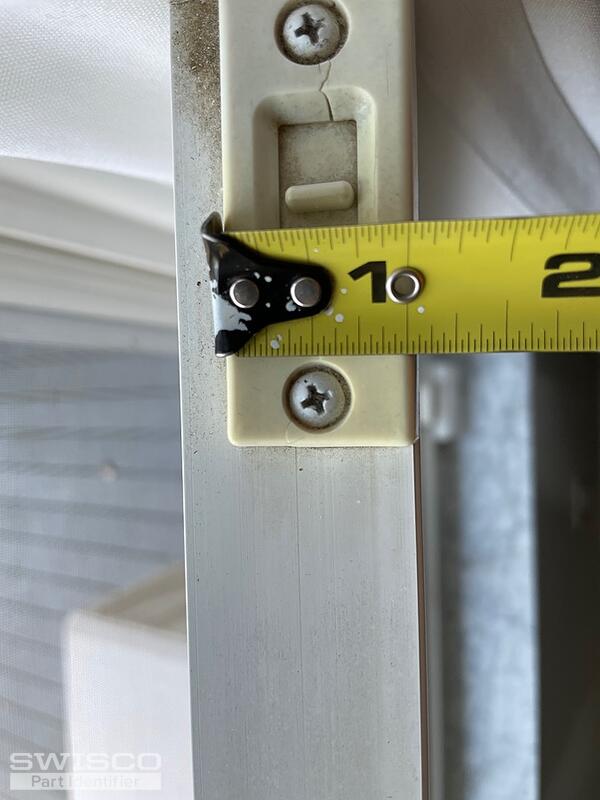

Any way you can guide me to the exact parts I need? I can't tell if they're a red or yellow rod. The window latches are 1x3" with a distance of two inches between the screws.

Thank you!

Ben

Thumbnail of the uploaded file named 67DDDEF6-3CE7-4D27-B41F-57650B8E03E7.jpeg
Thumbnail of the uploaded file named 16FCB78E-4128-43D9-B80B-4049066F313C.jpeg
Thumbnail of the uploaded file named F1E00685-8604-4907-8292-FC5324312F2A.jpeg
Thumbnail of the uploaded file named 5F8A7B61-9015-4B6F-9E0A-AC187A0FD028.jpeg
Thumbnail of the uploaded file named 9F93DE07-0EC1-4FB9-9059-14741E5F9D1B.jpeg
Profile picture of Casey
Casey from SWISCO responded:
February 23, 2022

Hello,

Your spiral balance resembles the (5/8") S600 or (3/8") S900, depending on the diameter of the housing tube. I'd also recommend weighing your window sash and following the chart under the balance product description to choose the corresponding color option.

As for your tilt latches, take a look and compare the dimensions shown on the 26-337 and 26-344 product pages to an undamaged latch. Thanks for posting!
Top Tilt Latch Pair, 2", 13/16"
Top Tilt Latch Pair, 2", 13/16"
26-337
$4.37
Top Tilt Latch Pair, 2", 3/4"
Top Tilt Latch Pair, 2", 3/4"
26-344
$5.22
