Tilt window balance

A handy person from Toms River, NJ says:

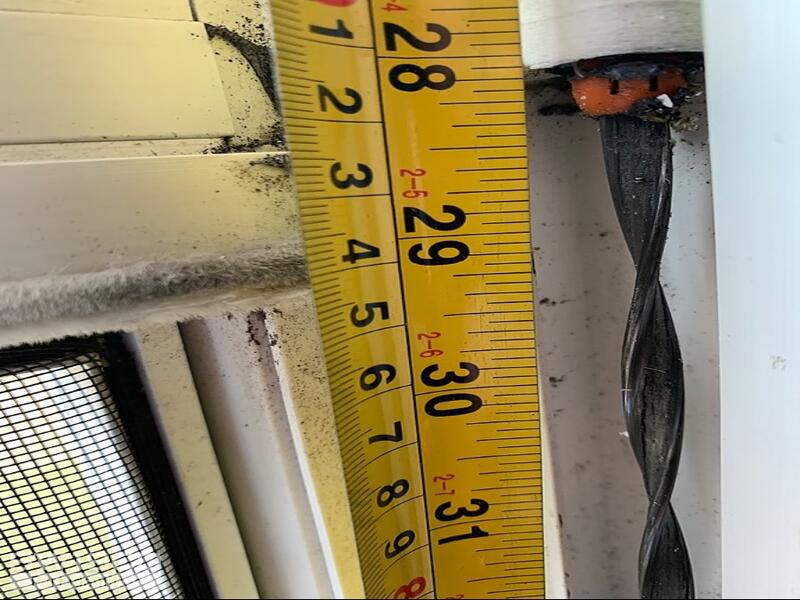

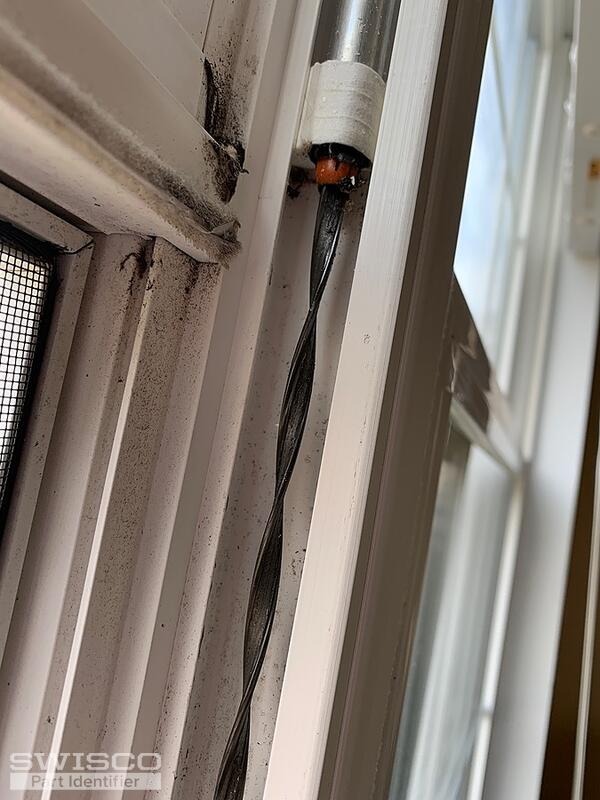

The tilt window balance measures 28 inches, 5/8 diameter and looks to be orange. In needed of the correct part number to order.
Thumbnail of the uploaded file named CCBD0DBF-FF1B-40A7-9C74-43626183BE5E.jpeg
Thumbnail of the uploaded file named 05A3DB8C-E714-4CAA-BF3C-1CD36251CC9A.jpeg
Thumbnail of the uploaded file named 152891E1-9159-415F-BB8F-11208EC17863.jpeg
Thumbnail of the uploaded file named 1FB902B8-BE2E-4BFB-9515-2D5864863F88.jpeg
Thumbnail of the uploaded file named 4EB97B64-2D45-495F-A643-D9220142F195.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

Take a look at our S600-28 spiral balance with a red tip option for tilt windows. This looks like a red tip to me since orange is considered "red" in the trade. Either manufacturers used slightly different shades, or the colored tip wears over time.

If you need a new pivot shoe, we'll need you to remove it from the window and tell us its thickness and width to narrow down your replacement options.
