Tilt window balances

A handy person from Indiana says:
September 20, 2020
Looking for a replacement window channel balance and shoe. The casing of the upper pulley that connects to the spring broke. So is the metal part of the shoe.

Pictures included.

Dimensions 28" H x 1/2" D x 9/16" W

Tiltable Visible window dimensions 26 8/16" H x 30 13/16 W
Thumbnail of the uploaded file named 681AD53F-7B3E-4CF6-9473-929FFD655BBC.jpeg
Thumbnail of the uploaded file named 8E150165-0EC4-4476-B399-2FE1FCAE0F66.jpeg
Thumbnail of the uploaded file named 13F4D8EC-8B4F-4F0B-A242-B37559FCCEE6.jpeg

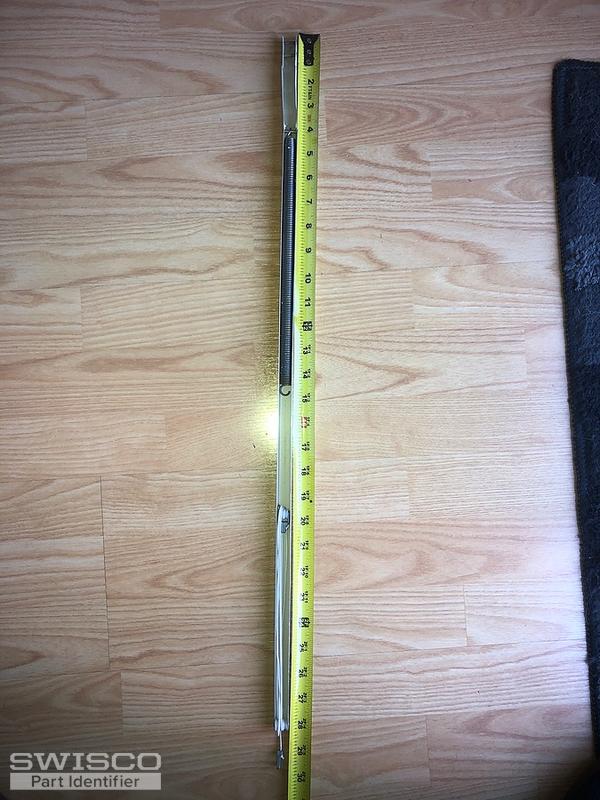

Thumbnail of the uploaded file named 0B77A300-EC76-437C-8856-07381C2A6CB2.jpeg

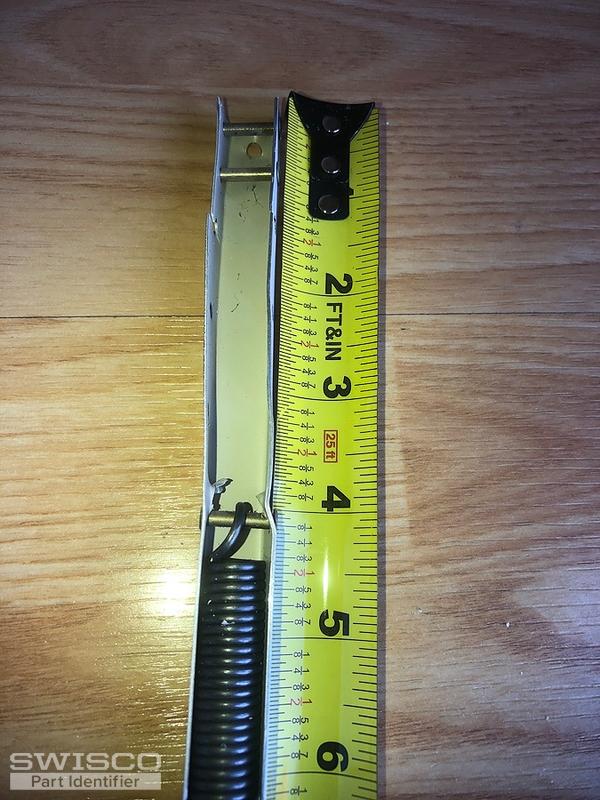

Thumbnail of the uploaded file named AFCF1609-064D-429F-9314-B938701447A5.jpeg
Profile picture of Bob
Bob from SWISCO responded:
September 24, 2020

I believe the balance might be our S770-28. Look over the specifications to see if you agree. The pivot shoe might be either our 15-178 or 15-188, but you'll need to compare the dimensions of your old shoe out of the window to confirm if either is what you need.
Pivot Lock Shoe, 1/2" Thick, Blue Break
Pivot Lock Shoe, 1/2" Thick, Blue Break
15-188
$3.70
Pivot Lock Shoe, Brown Brake Pad
Pivot Lock Shoe, Brown Brake Pad
15-178
$3.70
26" Series 770 Balance
26" Series 770 Balance
S770-26
$12.59
