Tilt window channel balance for Atrium Thermal windows

Home Owner from Overland Park
I need a replacement channel balance for a 20 year old Atrium Thermal Windows 36 inch channel. The model 770 SWISCO with a 9/16 inch channel looks exactly like the one I need---- except for how it hinges on top. The SWISCO has a plastic screw in latch at the top but my Atrium Thermal Window has a couple of pins in the channel and these hang on a hook connected to the frame. I might be able to make your SWISCO work by taking out the plastic connecter and inserting the pins from my old one. However I would like to see if I can get the actual replacement part.
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for reaching out to us. We may be able to help with this but I'll need more information to be sure. Would it be possible for us to see the clip attached at the end of the cord as well as how the balance installs at the top of the window? That will help give us a better idea of what we're dealing with here.

Home Owner from Overland Park

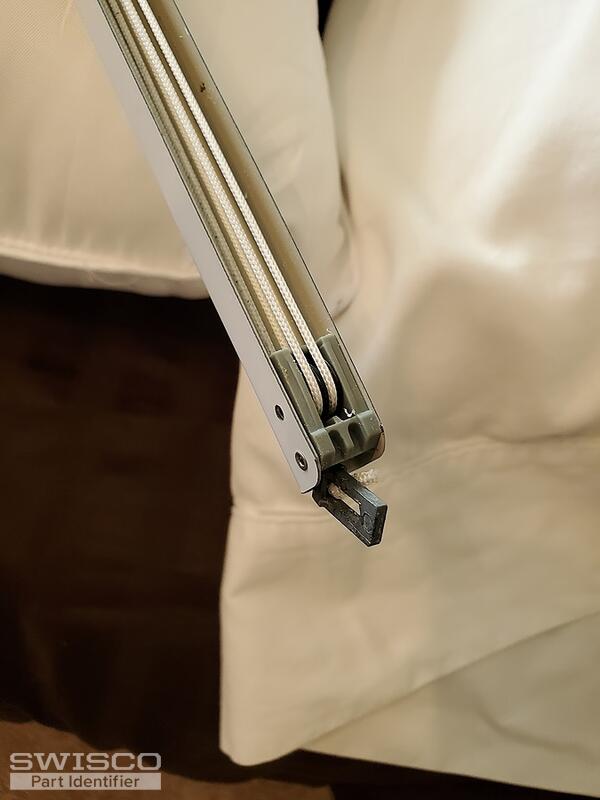

This is the balance that I need to replace. I am not sure about the weight but hopefully the model number gives you that. Thank you for researching this and getting back to me. If it works I'll probably buy two since I have 10 windows this size.
4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you very much for waiting while we looked into this further. We can help supply the S770-36 with the 36E stamp but it will have to be a custom order since your balance uses an S-hook. I will email you a purchase link for (2) balances that you can use to place an order on our website. Note that the rivet will be in the top hole so you will need to purchase the 19-029 short S-clips for your replacement balances (sold separately). There is also a 5-6 week lead time.

If you have any questions just let me know!
