Tilt window latch replacements
Home Owner from Columbus, Ohio
Jan 5, 2023 3:20 pm

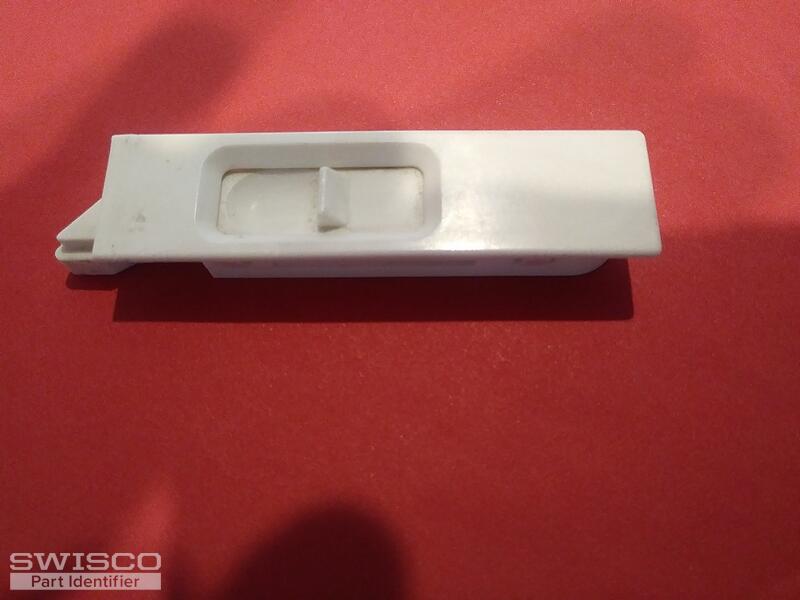

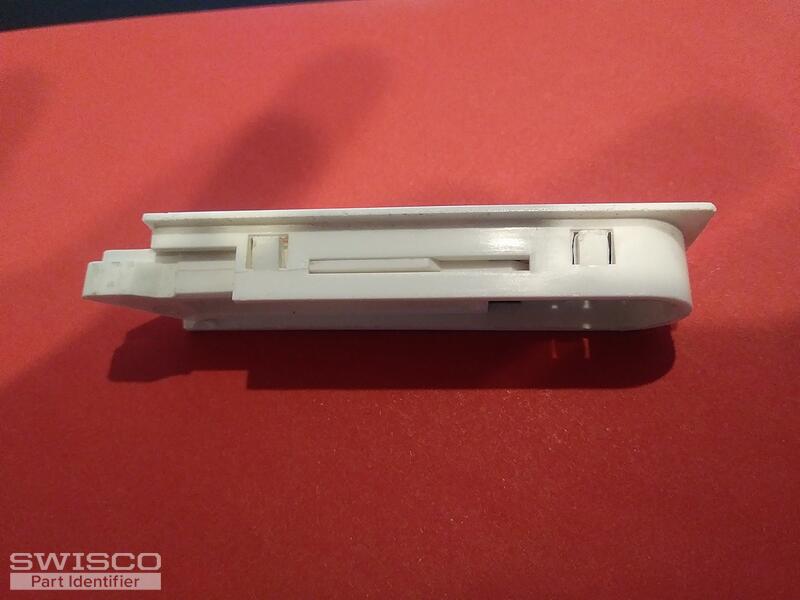

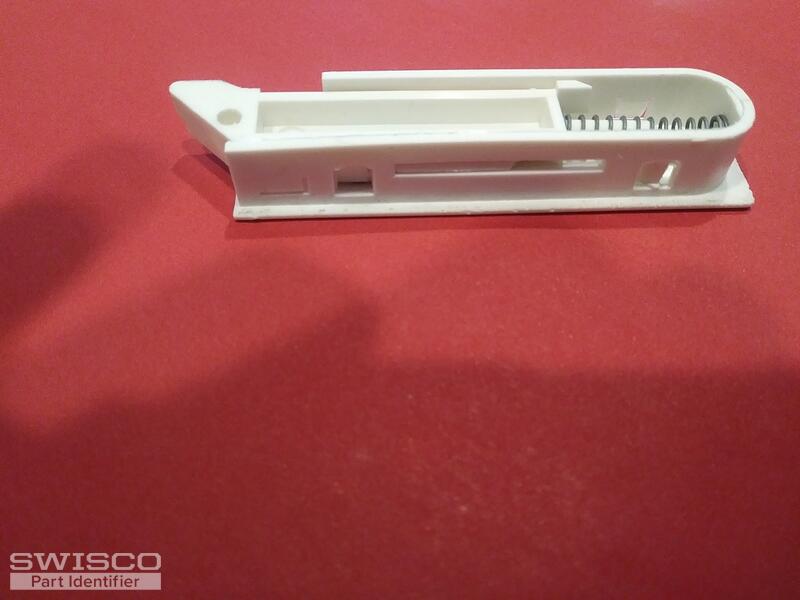

Hello, I am trying to locate replacement tilt window latches for my Windows. The top plate is 2 5/8" long, the top plate is 5/8" wide, the bottom side is 1/2" wide, and is 3/8" deep. The problem I have found is that most replacements are not flat on the sides and therefore won't slide into the window frame. The only markings these pieces have is either an L or an R. Thanks.
3 user uploaded images
4 Replies
Casey from SWISCO
Jan 6, 2023 2:28 pm
Hello,
It looks like our closest replacement options for your tilt latches would be the 26-243 and 26-244 but you mentioned that the sides needed to be completely flat. Please note that there is a ridge on the side of ours and I can't be sure if this will be a problem for your installation. Take a look and review the specifications shown on our product pages to see what you think. If you decide to give them a try and run into any problems, our return policy can be found here. Thanks for posting!
Home Owner from Columbus, Ohio
Jan 9, 2023 10:01 am
The measurement for the top is 11/16" , but would you be able to find out the measurement for the bottom of the piece that would be in the window frame?
Casey from SWISCO
Jan 9, 2023 11:25 am
The width of the bottom portion that slides into the sash is 5/8". If you decide to give our latches a try and run into any problems, you are welcome to look through our return policy here.
