Quick Learner

Sep 28, 2023 4:23 pm

I ordered a part based on my measurements but it doesn't fit.

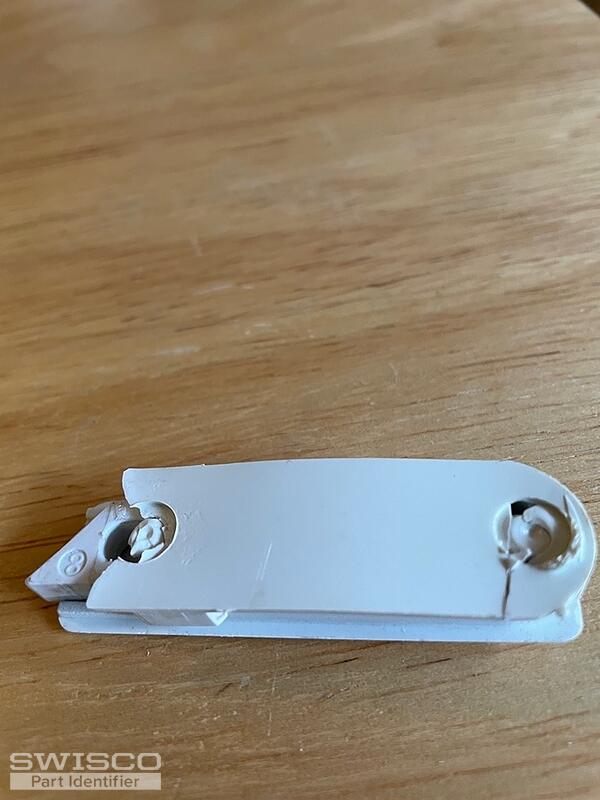

The picture is of the old part and the part new part which I WILL be returning.

1 user uploaded image

4 Replies

Bob from SWISCO

Sep 28, 2023 5:15 pm

Thanks for posting. I'm sorry that the 26-391 did not work for you. View our Return Policy here. Your original tilt latch does look a bit shorter. Can you show it to us from the side and bottom? Can you also give us the basic dimensions, and how they differ from what's listed below (for the 26-391)? That information, as well as a few different camera angles, should help us narrow this down.

detail of 26-391

Quick Learner

Sep 28, 2023 5:40 pm

2 5/16 in length
5/16 height
7/16 edge to slider
11/16 wide

3 user uploaded images

Tom from SWISCO

Oct 2, 2023 1:30 pm

Hey there, maybe I can help. Looking at these photos I think our best match is going to be the 26-393. Check it out and see what you think. The design and size both appear much closer to your original.

Dimensions for 26-393
