Tilt window latches
Home Owner from Catonsville, Maryland
Jun 10, 2024 12:49 pm

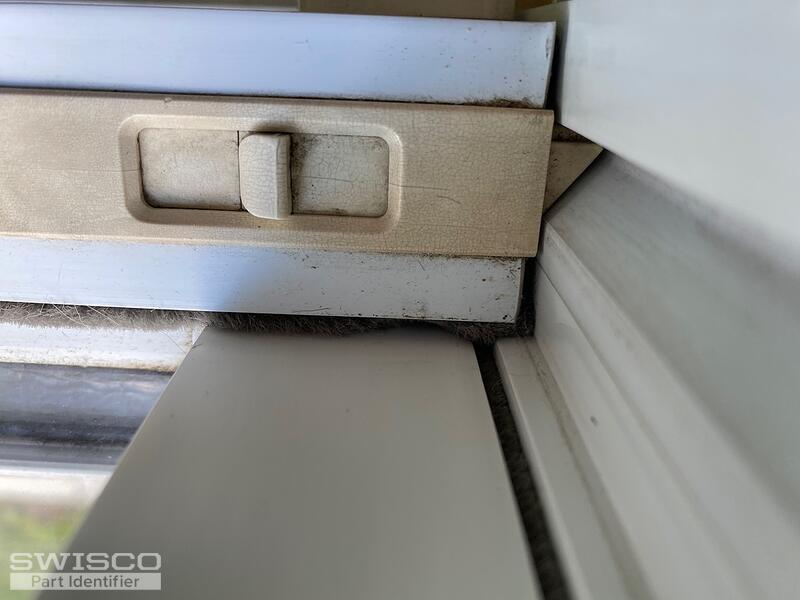

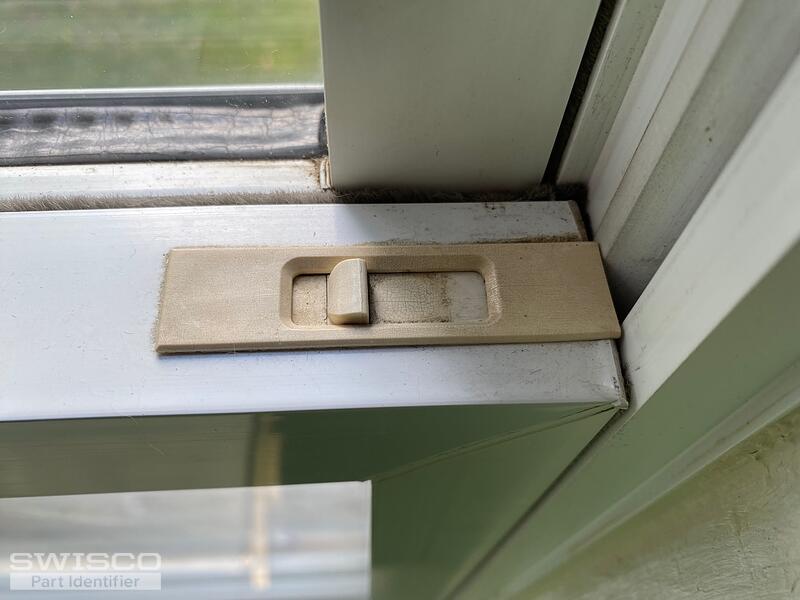

My windows are almost 30 years old. All that sun finally has caused many of the latches to break. I purchased latches from another vendor before I found you, and they are exactly the right size, BUT the latch part extends beyond the frame of the latch ( on the side facing into the room) and it needs to be flush in order to operate with these windows. The latch measures : top plate length = 2-3/4", width = 11/16". Housing length = 2-5/8" and depth = 3/8".
2 user uploaded images
2 Replies
Jasmine from SWISCO
Jun 10, 2024 2:30 pm
Thanks for writing in! Your window latches look like they can be replaced with our 26-243 and 26-244 Tilt Window Latches. To confirm that these are the right fit, be sure to double check the dimensions below. Based on the ones you've confirm, I am confident these should be the right replacements for your repairs.
Alternate view of 26-243
Profile view of 26-243
