Tilt window latches

Quick Learner from San Leandro, California

Oct 25, 2024 12:53 pm

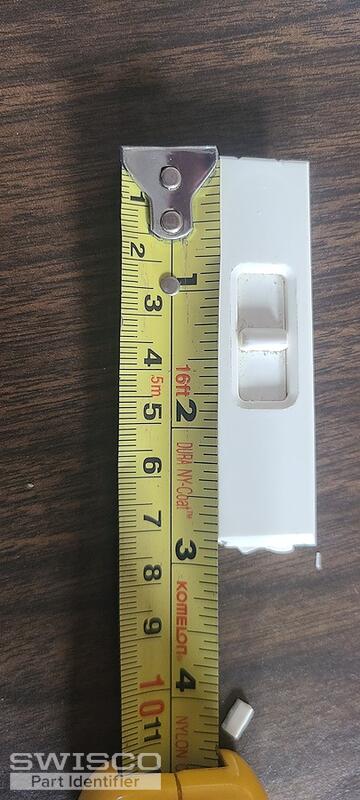

The length of the latch is 3 7/8. I can't measure the tab, they keep breaking. But one does have .075 stamped on it. Thanks for any help you can provide. I will need a few of these, left and right sides.

4 user uploaded images

3 Replies

Quick Learner from San Leandro, California

Oct 25, 2024 1:12 pm

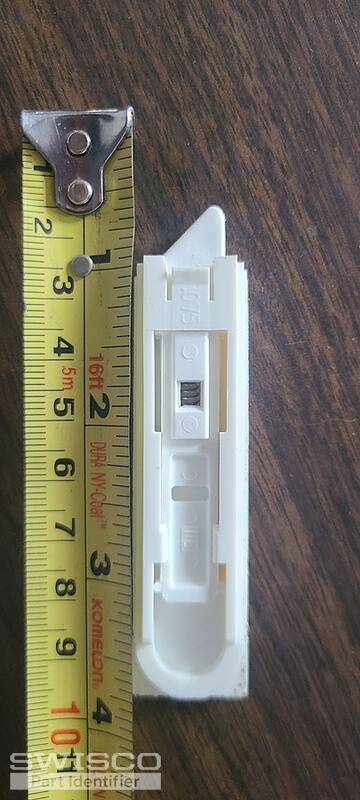

One more, sorry. Got one unbroken one out

1 user uploaded image

Bob from SWISCO

Oct 25, 2024 2:59 pm

Thanks for posting. Given the 2-7/8" overall length, my first thought is the 26-391 and 26-390 Slim Tilt Latches. Review the dimensions listed below and let me know if this pair looks right, or if anything is off.

Alternate image for 26-390

detail of 26-391
